• Model NO.：DN32-150mm
• Expanding Medium：Emulsified Liquid
• Forming Speed：5-10 Seconds Per Convolution
• Wall Thickness：Dn0.3-0.8mm
• Pitch Distance：Dn9-30mm
• Transport Package：Standard Seaworthy Package
• Specification：SGS, ISO, AISI
• Trademark：HLT
• Origin：Jiangsu, China
• HS Code：73072900
• Production Capacity：15 Sets Per Year

Basic Info.

Model NO. DN32-150mm Expanding Medium Emulsified Liquid Forming Speed 5-10 Seconds Per Convolution Wall Thickness Dn0.3-0.8mm Pitch Distance Dn9-30mm Transport Package Standard Seaworthy Package Specification SGS, ISO, AISI Trademark HLT Origin Jiangsu, China HS Code 73072900 Production Capacity 15 Sets Per Year

Product Description

                       Hydraulic Flex Metal Hose Forming Machine
Product decription
*Diameter: DN50-300mm
*No. of layers: single or double layers
*Type of the bellows: annular bellows
*Applications: for auto exhaust bellows, flexible metal hoses, and expansion joints
*Control: PLC control
*Length: ≤7500mm
*Expanding medium: emulsified liquid
*Forming speed:5-10seconds per convolution

Pictures of hydraulic flex metal hose forming machine

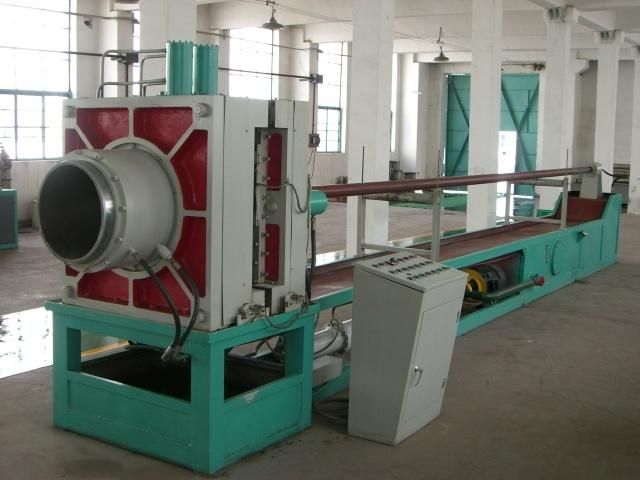

                                      DN50-300mm Hydraulic forming machine

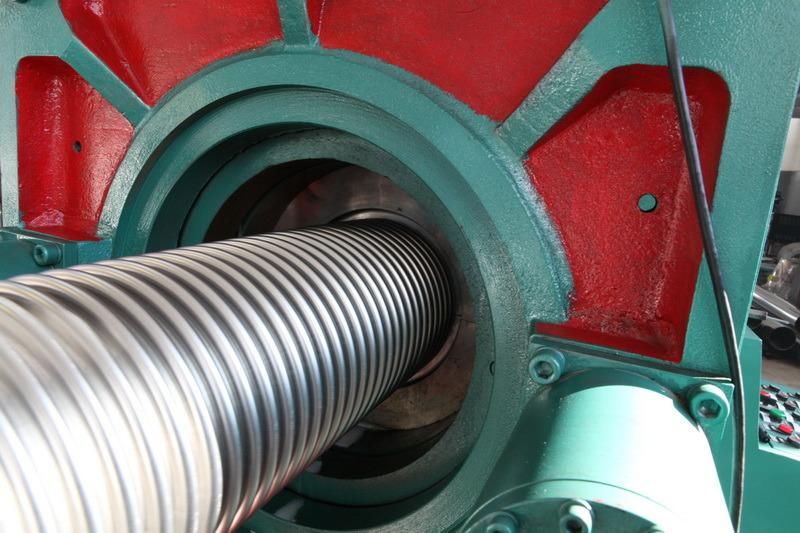

                                   The process of the hydraulic forming machine

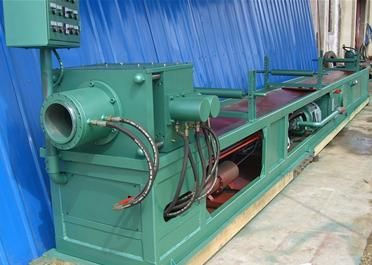

                                       DN32-125mm Hydraulic forming machine

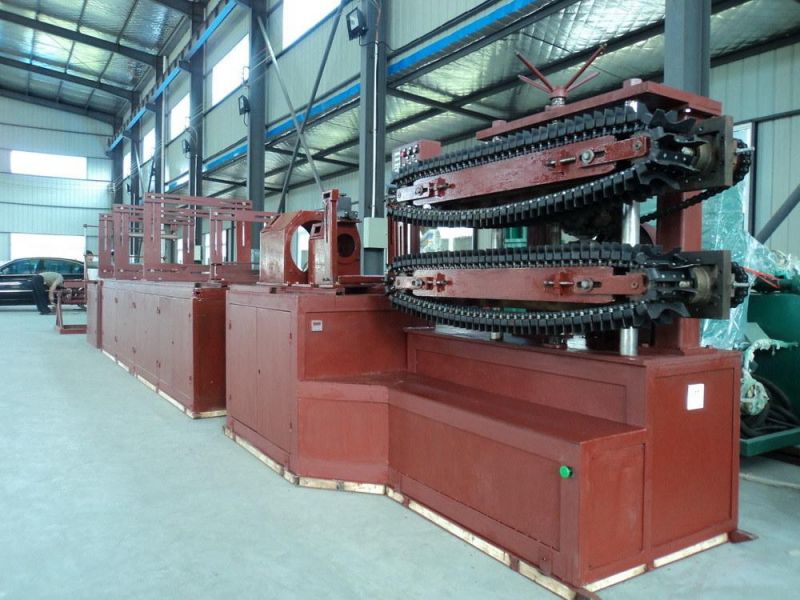

                                                      DN15-300mm tube mill machine


Data of Hydraulic Flex Metal Hose Forming Machine

ID	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300
Single wall thickness	0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.2	1.5
Double layer wall thickness	0.25*2	0.3*2	0.4*2	0.50X2	0.60X2	0.70X2	0.80X2	0.90X2	1.0X2



DN	Actual ID	Wall thickness	Width of strips	Height of convolution	Pitch distance(mm)
DN50	Φ50	0.30	158	9	9
DN65	Φ65	0.30	205	12	12
DN80	Φ79.85	0.40	252	15	15
DN100	Φ99.80	0.50	315	17	18
DN125	Φ124.88	0.60	394	21	19
DN150	Φ150	0.60	473	23	20
DN200	Φ199.84	0.80	630	25	22
DN250	Φ249.84	0.80	787	30	25
DN300	Φ299.84	0.80	944	35	30

FAQ for Hydraulic Flex Metal Hose Forming Machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines

Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65

Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
