Black Annealed Iron Wire Making Machine Straight Line/Continous Line
SHIJIAZHUANG SATLE MACHINERY MANUFACTURE CO., LTD.- Type：LZ Straight-Line Metal Drawing Machine
- Usage：Wire
- Metal Material：Steel
- Outlet Diameter：0.6-8
- Max.Inlet Wire Dia.：8mm
- Block Dia.：280mm
Base Info
- Model NO.：lz-560
- Max. Number of Block：11
- Certification：ISO, Ce
- Condition：New
- Voltage：220,380,414,440V
- After-Sales Service：Field Installation
- Color：Any
- Draw Material：High, Medium, Low Carbon
- Market：All of The World
- Power：18.5-30kw
- Technology：Complete Programm in Offer
- Installation and Debugging：Engineer Come and Install
- Delivery Details：60days After Receiving Payment
- Drawing Speed：12-25m,S
- Way of Drawing：Mould Drawing,Roller Type Cold Drawing
- Control Unit：Siemens
- Motor：Siemens
- Warranty：12months
- Packaging：PE Film
- Transport Package：Plastic Film or as Customers′ Requirement
- Specification：8000*2200*1700mm
- Trademark：saier
- Origin：China
- HS Code：8463102000
- Production Capacity：50set,Month
Description
Model
350
400
550/560
600
Inlet Wire Dia.(mm)
3.5
4.2
6.5
8
Outlet Wire Dia. (mm)
0.6
0.8
1.4
1.6
Motor Power(KW)
5.5-11
7.5-15
18.5-22
22-37
No. of drafts
8-12
8-12
8-12
6-10

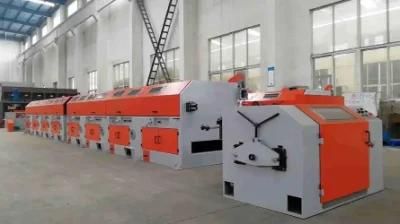

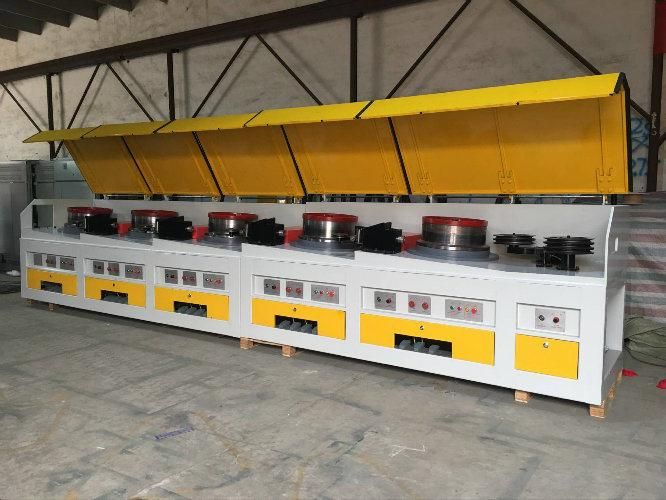

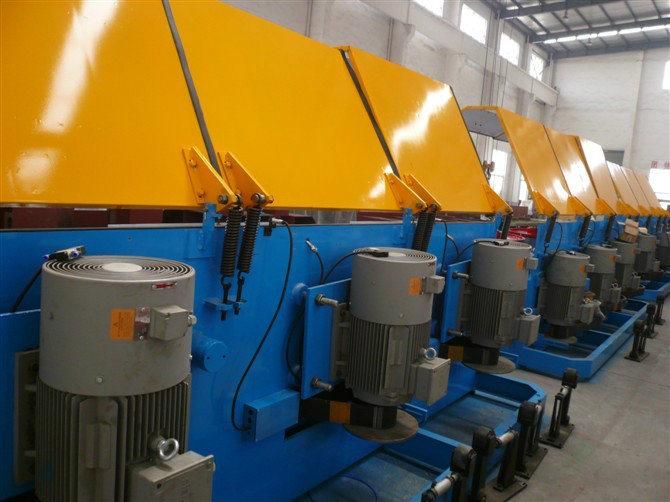

Straight line wire drawing machine
Inlet wire diameter:6mm
Outlet wire diameter:2mm
Speed:9m/s

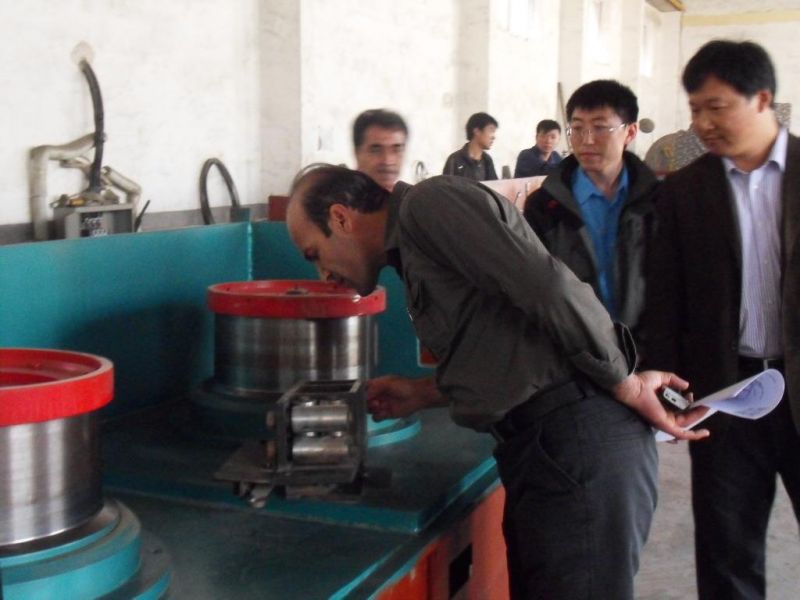

Capstan:steel ZG45~55, hardness alloy tungsten carbide is spraying-painted on working surface, with HRC60, lifetime>=26000hours. The height of the capstan is 280mm. The height of spraying tungsten carbide is 80mm and the thickness is 2mm. The temperature of the capstan< 80ºC. Roughness <0.8μmm. There are operation buttons in front of each capstan used to adjust the tension. Cooling type: narrow slit water cooling with water proof and anticorrosive treatment.

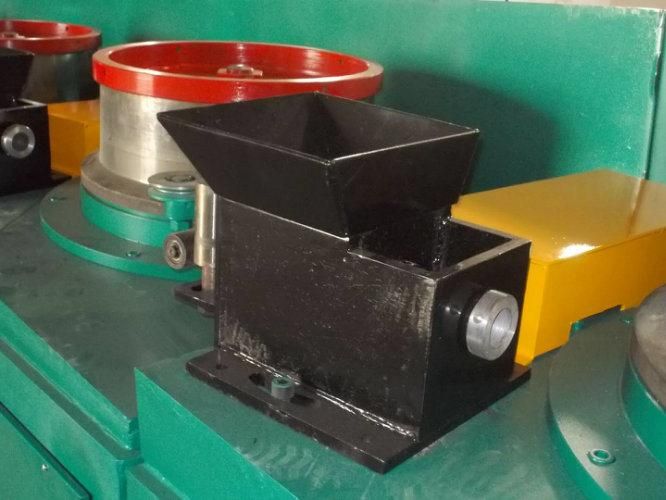

Die box:Welding part is adopted for die box, the spraying-painted tungsten carbide is
adopted for the surface of guide wheel and guide roller. The die box is divided into lub. powder cavity and water cooling cavity (water flowing automatically for cooling)
Drive mode:Belt and gear box.The gear is made of the hard surface 20CrMnTi. The noise is less than 78db. Bearing:Produced in Wafangdian,made of GCr15 steel. Motor:22kw, 7sets,Inverted motor.Brand:Shandong Jinsheng. There is a brake to stop the motor and avoid turning in the opposite direction.Brake material: Nodular cast iron.

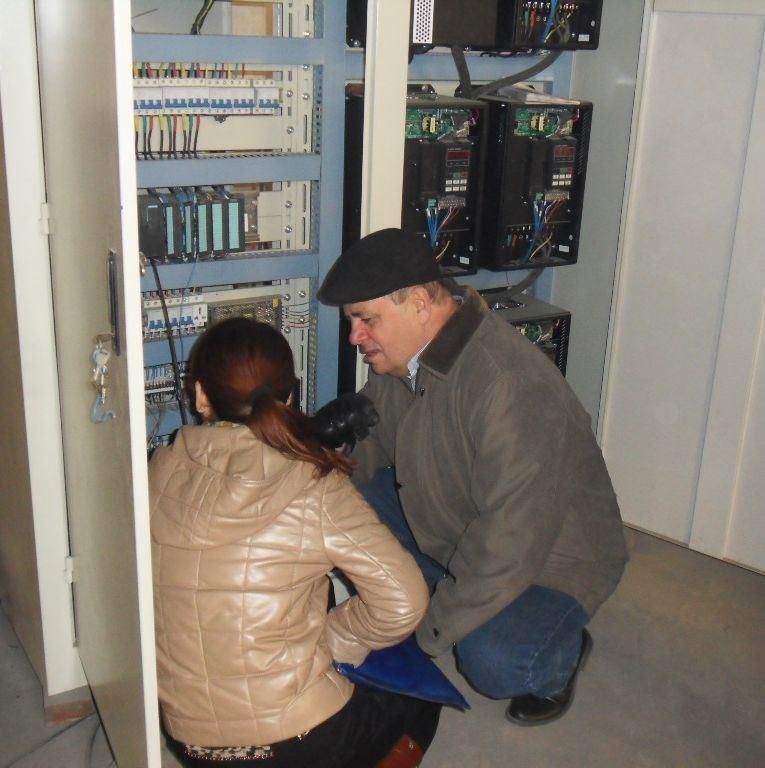

Inverter:SINEE/INVT brand,22kw
PLC:Mitsubishi/INVT brand,control the inverter speed Low voltage electric appliances:Chint Brand

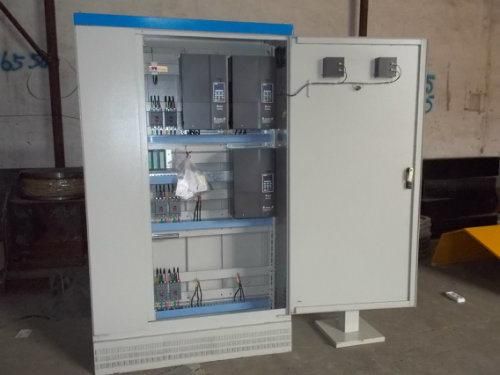

Control station: Contact screen, EMG stop, Switch, Start button,Stop button, Acceleration button, Deceleration button and Reset button. Contact screen:Weinview/INVT color contact screen.Function: Set the wire diameter , speed and PID.It also can display and adjust the weight and length.If the four buttons "EMG Stop, System operation, Instructions, Inverter start" shows green, it means normal.When buttons change into red, it means break down .
Sensor: brand

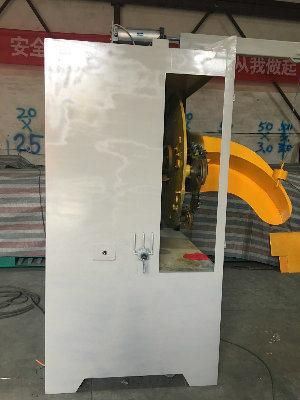

Protective cover: Made of cold rolled steel(or stainless steel ). There is a window on the plate to observe the drawing process. Before running, you will need to drop the protective cover. If the protective cover opens, the drawing machine will stop automatically. Power consumption: Rated Motor 154KW, in reality 77kw/h Electric counter:we will equipt with electric counter for clients,
