Galvanized Stud and Runner Track Cu Profile Roll Forming Machine
Botou Golden Integrity Roll Forming Machinery Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：High Efficiency
- Certification：CCC, ISO9001, CE, SGS
- Warranty：12 Months
Base Info
- Model NO.：C80
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Voltage：380V,50Hz Three-Phase
- Color：Blue or Custimized
- Shaft Material：45# Steel Outer Diameter 40mm
- Cutting Blade Material：Gcr12MOV
- Control System：PLC(Imported Brand)
- Raw Material：Steel, Galvanized Steel
- Power(W)：5.5kw
- Number of Rollers：12-21
- Usage：Building
- Name：Prefab House Light Steel Keel Roll Forming Machine
- Transport Package：According to Customers′ Request
- Specification：Jcx
- Trademark：JCX
- Origin：China Hebei
- HS Code：84552210
- Production Capacity：40sets Per Month
Description
Material hardness
550mpa-350mpa
Loading capacity
1.5T
Uncoiling width
300mm
Inner diameter
450-550mm
Processing material
GI
Material thickness
0.4-0.8mm
Frame thickness
25mm
Drive mode
gear
Forming speed
20m/min
Formed width
46.5mm
Material of shafts
45#steel with tempering of keel roll forming machine
Diameter of shafts
φ40mm
NO. of rollers
10 rollers
Note: those parameters are only for reference, acutally most of them will be different according to product difference.

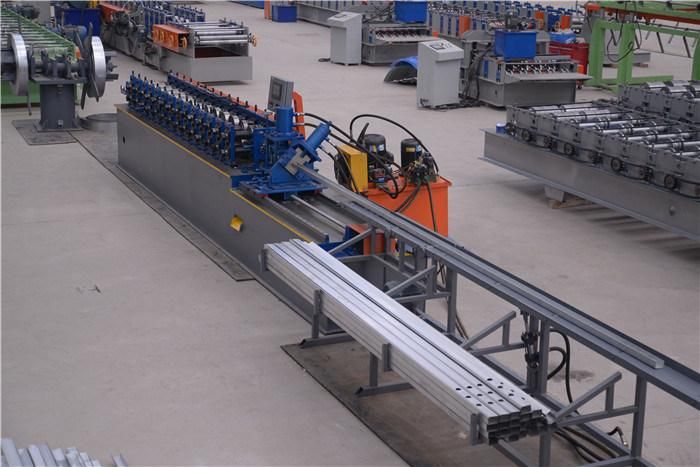

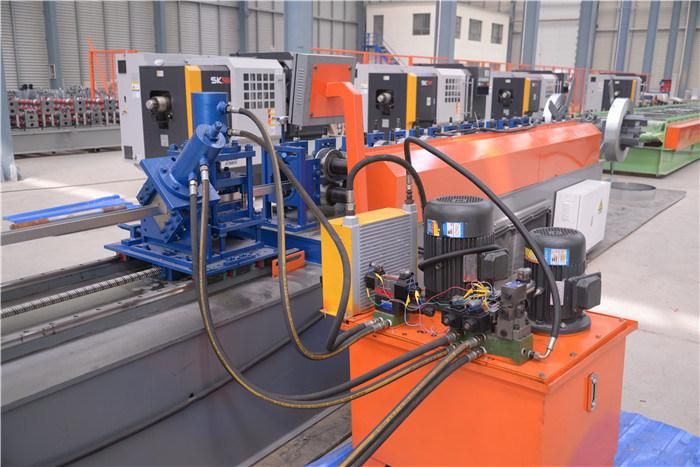

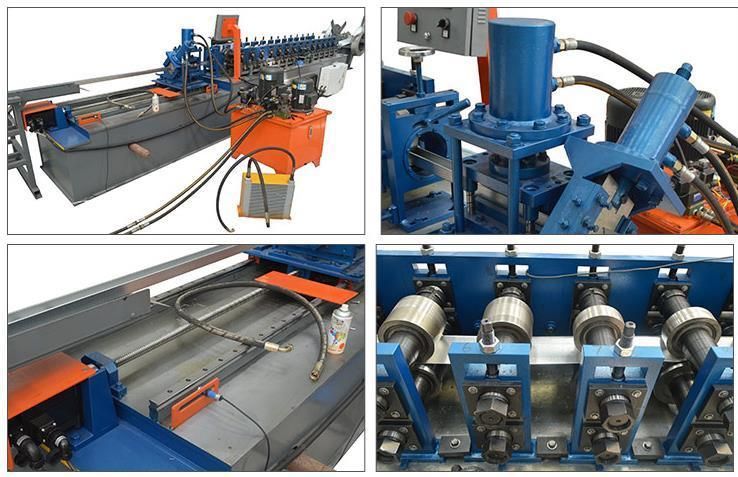

Photoes of machine:

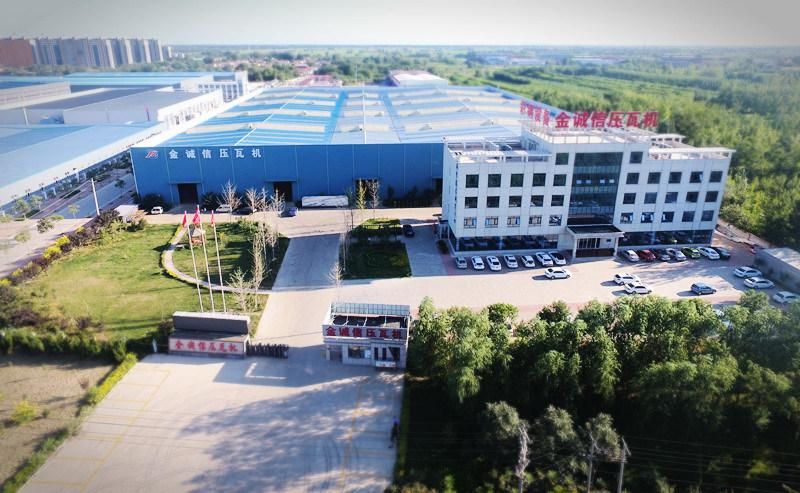

Company Information:
JCX ( Golden Integrity Roll Forming Machine Co.,Ltd.) is a company specialising in the field of cold roll forming machines and metal sheet processing. We are developing various cold roll forming machines for roof tiles making, ceiling metal frame and welding pipe machine, which are used in the following areas like construction industry, automotive industry, packing industry. JCX factory was built in 2000 and its machins have been sold more than 70 countries, so please trust us. With us, create your own cold roll forming world.
Our Service:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
