• Model NO.：Steel Sheet Tile Forming Machine
• Feature：Automation
• Certification：ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Mode：Steel Sheet Tile Forming Machine
• Auto：Fully Automatic
• Feeding Material：Metal Coil
• Feeding Width：1250mm
• Feeding Thickness：0.25-0.7mm Thickness
• Production Speed：4-6m,Min
• Roll Forming Speed：8-12m,Min
• Control system：PLC Computer Control with Inverter
• Size：6500mm*1500mm*1500mm
• Weight：3.2 Tons
• Transport Package：Waterproof Package
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. Steel Sheet Tile Forming Machine Feature Automation Certification ISO9001, CE Warranty 12 Months Customized Customized Advantage Easy to Maintenance Condition New Mode Steel Sheet Tile Forming Machine Auto Fully Automatic Feeding Material Metal Coil Feeding Width 1250mm Feeding Thickness 0.25-0.7mm Thickness Production Speed 4-6m/Min Roll Forming Speed 8-12m/Min Control system PLC Computer Control with Inverter Size 6500mm*1500mm*1500mm Weight 3.2 Tons Transport Package Waterproof Package Specification CE SGS ISO Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 30 Sets Per Month

Product Description

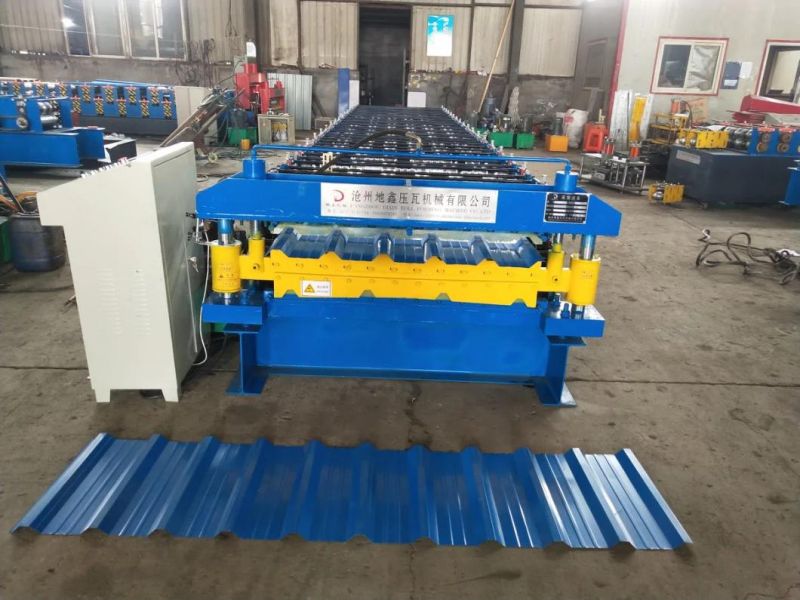

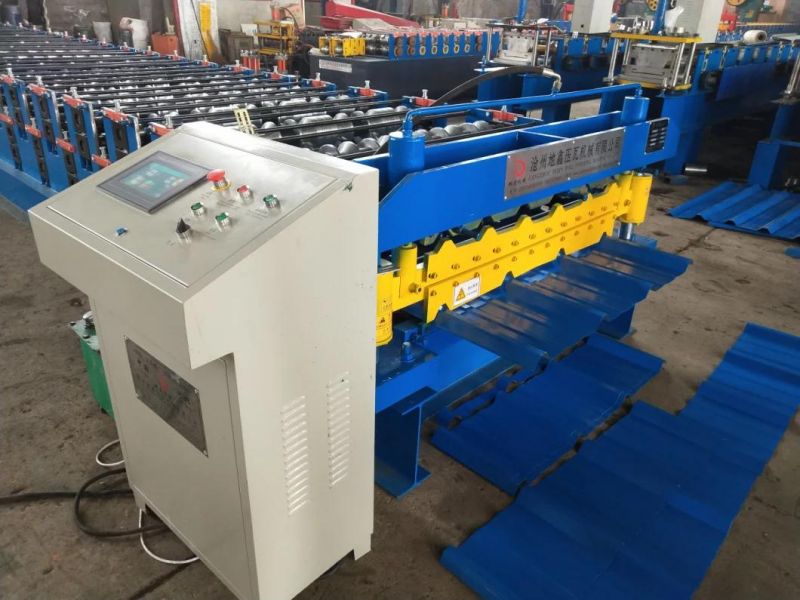

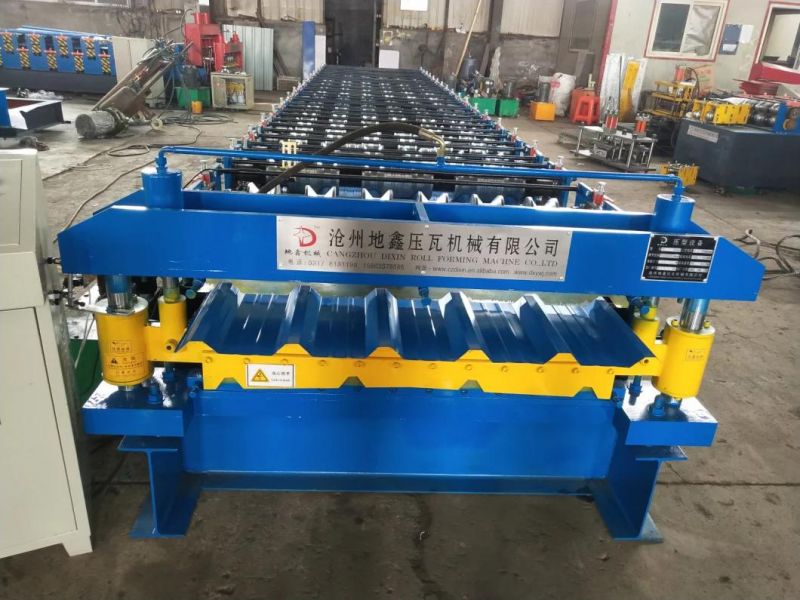

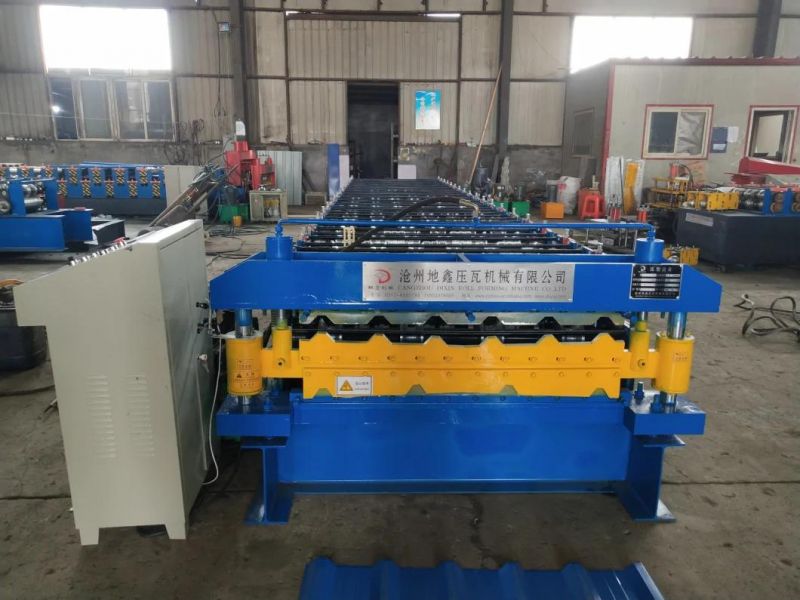

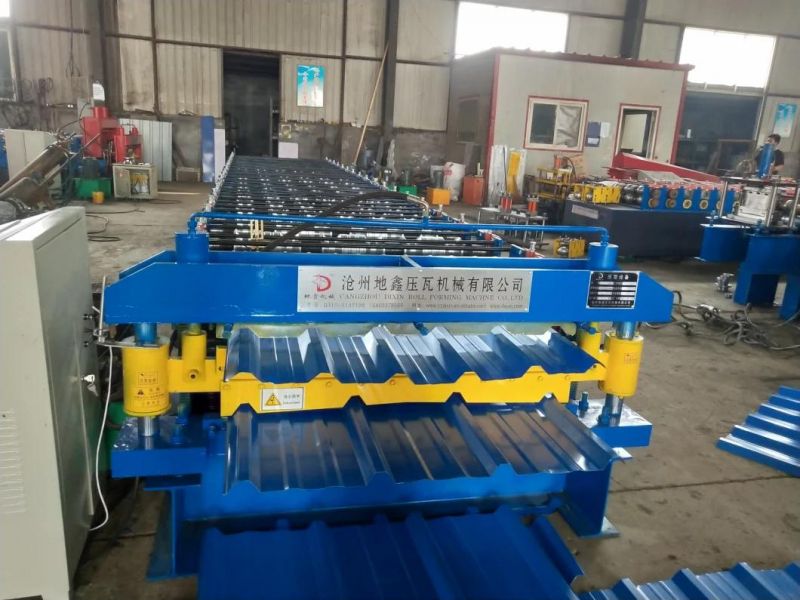

double Layer Steel Sheet Tile Forming Machine in China

1. Quick detailes:
1 direct factory in china
2 plc control system roll forming machine
3 ce certificated
4 forming speed: 3-4 m/min
5 hot sale

2. Technique parameters
(1) processing material: Aluzinc/galvanized steel/colored steel coil
(2) material thickness: 0.3-0.8mm
(3) effective width:1000mm
(4) feeding width: 1200mm
(5) main motor power: 4 kw
(6) pump power: 4 kw
(7) shaft diameter: 75 mm
(8) forming steps: 11 steps
(9) roller material: 45# forged steel, with hard chrome plating
(10) main frame: 300h steel
(11) medium plate thickness: 16mm
(12) control systerm: Plc computer control with inverter
(13) power supply: 380v, 3 phase, 60hz or as your requirement
(14) 0veral sized: 6500mm*1500mm*1500mm
Packing size: 5.7m*1.6m*1.5m(l*w*h), 3.2 tons

3. One manual uncoiler for free and other accessary

4. Loading in a 20 foot container.

5. Service.
Engineer overseas service available

NO.	ADVANTAGE
1	Direct manufacturer Since 2008
2	Golden customer evaluation and complete after-sale service
3	CE,SGS,BV,TUV--
4	Custom design to satisfy trader,factory or personal use.
5	Environmental protection production line ,no harm to environment and animal
6	Easy communication and feedback,professional advice for free
7	Engineer service in your factory available and economic


FAQ
1.Q: How can I contact you?
A: You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you.
2. Do you have after sales support?
A:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3.Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
     2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
4.Q: How many years since you have been in this field?
A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.
5.Q. What can you do if the machine broken?
A:Our machine's warranty period is 12months, if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself. if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
6.Q:How long the machine could be made?
 A:Normally speaking,  machine could be made within 30 working days. If you need machines in a hurry, we can make it for you less than a month.
6.Q:If our country's voltage is different from yours, how to solve that?
A:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
contact: Bella Hao
