• Model NO.：dx15
• Feature：High Efficiency
• Certification：CCC, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Metal Hydraulic Decoiler for Sheet Metal
• Automatic Decoiler：5t, 6t, 10t, 15t..... Customer Designed
• Form of Decoiler：Hydraulic Tension and Electric Discharge
• Motor Power of Decoiler：3kw
• Motor Power of Hydraulic Station：2.2kw
• Inside Dia of Coil：500-530mm
• Outside Dia of Coil：1300mm
• Width of Coil：1250-1300mm
• Weight of Coil：5t, 6t, 10t, 15t
• Speed of Decoiling：0-20m,Min
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：CE ISO
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Year

Basic Info.

Model NO. dx15 Feature High Efficiency Certification CCC, ISO9001, CE Warranty 12 Months Customized Customized Advantage Use Widely Condition New Name Metal Hydraulic Decoiler for Sheet Metal Automatic Decoiler 5t, 6t, 10t, 15t..... Customer Designed Form of Decoiler Hydraulic Tension and Electric Discharge Motor Power of Decoiler 3kw Motor Power of Hydraulic Station 2.2kw Inside Dia of Coil 500-530mm Outside Dia of Coil 1300mm Width of Coil 1250-1300mm Weight of Coil 5t, 6t, 10t, 15t Speed of Decoiling 0-20m/Min Transport Package Water-Proof Packaging, Covered with Plastic Film Specification CE ISO Trademark DIXIN Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Year

Product Description

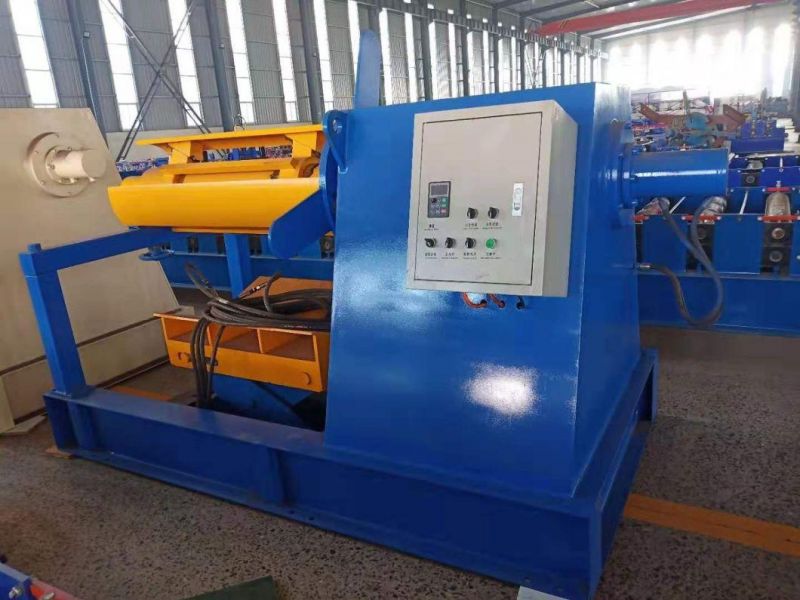

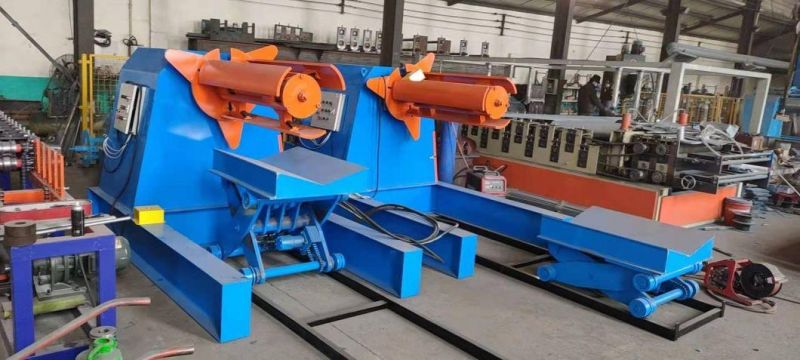

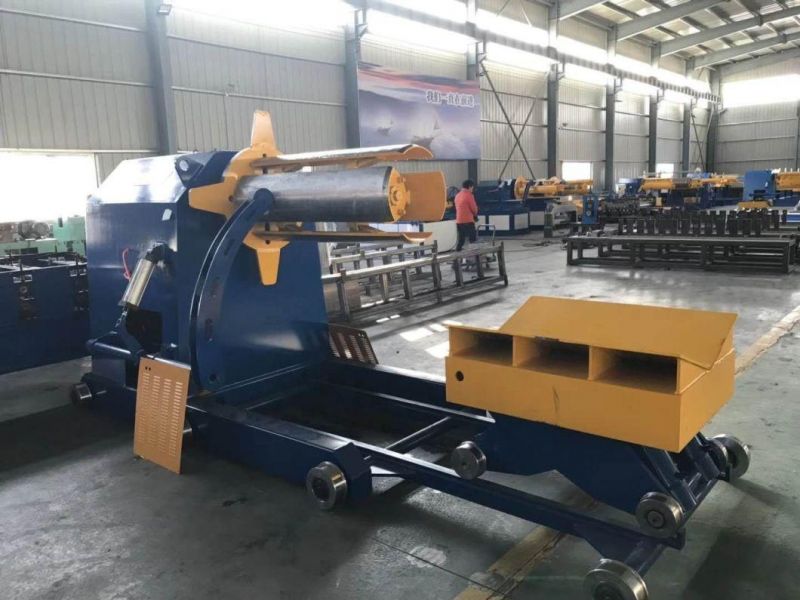

metal hydraulic decoiler for sheet metal
Automatic decoiler: 5t,6t,10t,15t..... customer designed
Parameters of hydraulic decoiler:
(1) Form of decoiler : Hydraulic Tension and electric discharge
(2) Motor power of decoiler : 3KW
(3) Motor power of Hydraulic station : 2.2KW
(4) Inside dia of coil : 500-530mm
(5) Outside dia of coil : 1300mm
(6) Width of coil : 1250-1300mm
(7) Weight of coil : 5T,6T,10t,15t
(8) Speed of decoiling : 0-20m/min
(9) Pressure of hydraulic system : 10Mpa
(10) Way of control : Multi-level photoelectric automatic tracking
(11) Outline dimension of decoiler : 3200mm×1250mm×1800mm
(12) Voltage of control : 3P/3800V/50HZ or as customer request

3.Payment and terms
1>30% T/T in advance and balance 70% after inspection confirmation before shipment.
2>Quotation will be valid with in 30 days.Final price should be confirmed.
3>Delivery time : Within 45 working days after receiving deposit.

4.Warranty

1>One year, and we will provide the technical support for the whole life.
2>Training: the buyer should be responsible for visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3>Need one technicians
4>Training time: one week (contains the time of installation and adjustment)

All kinds of roll forming machine customized, just send me your panel profile.
