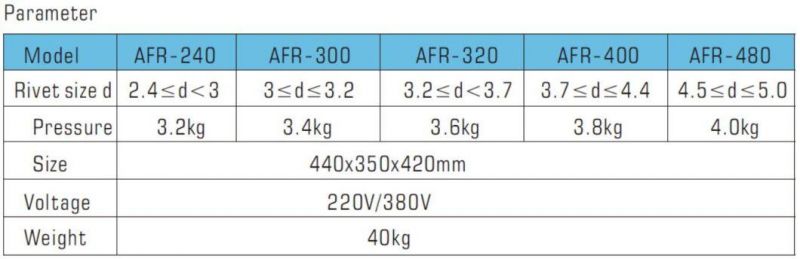

• Specification：440x350x420mm, 40kg
• HS Code：846299100
• Production Capacity：2000,Year

Basic Info.

Specification 440x350x420mm, 40kg HS Code 846299100 Production Capacity 2000/Year

Product Description

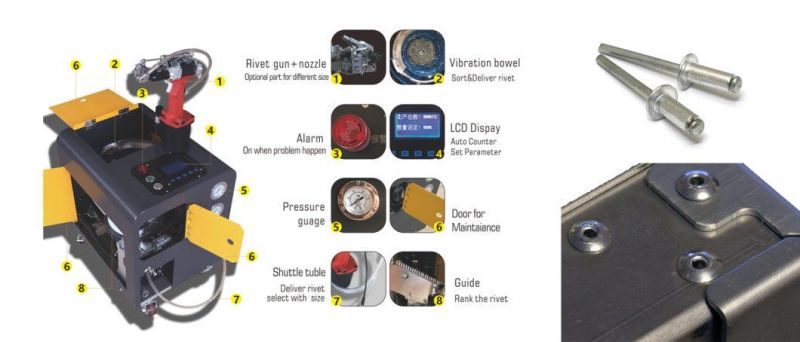

Auto feed riveting system including auto sort and rivet gun. The vibrating bowel system sort and separate rivets,shuttle the rivets to gun nozzle by pneumatic unit.This machine upgrade traditional manual riveting job.It can install in robot machine.Improve more efficiency.

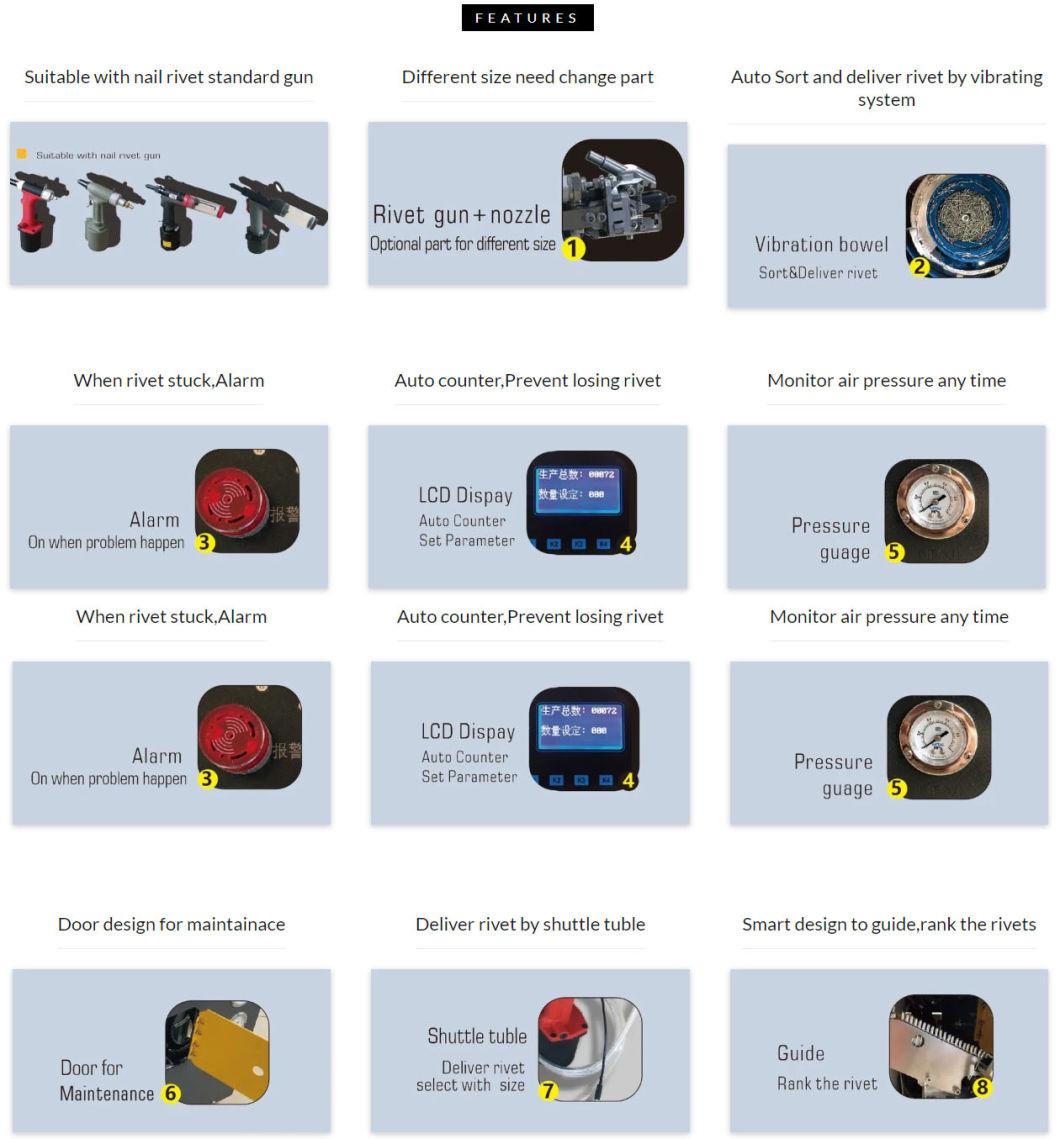

The AFAB auto feed riveting system automatically shuttle standard rivets into the gun tool.Rank and ordering rivets by vibrating bowel system.Big saving labour cost.Deliver the rivets by pneumatic pressure via plastic tube.It equip with normal gas rivet gun.

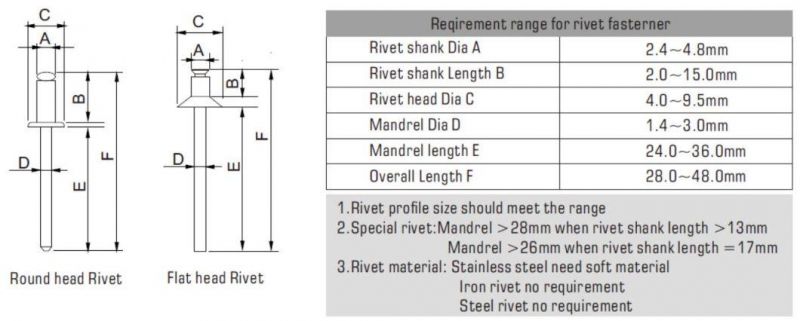

The machine with high efficiency,Set up to 60 rivets per minute! Almost any blind rivet can be put on bowel and fed in this system,

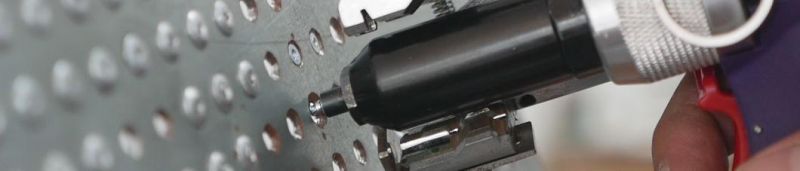

Traditional blind riveting requires the operator to pick up a rivet and place it into the rivet gun's nose piece andset th e rivet one at a time using both hands. This traditional method is comprised of numerous movements requiring the operator to perform several tasks to accomplish the job

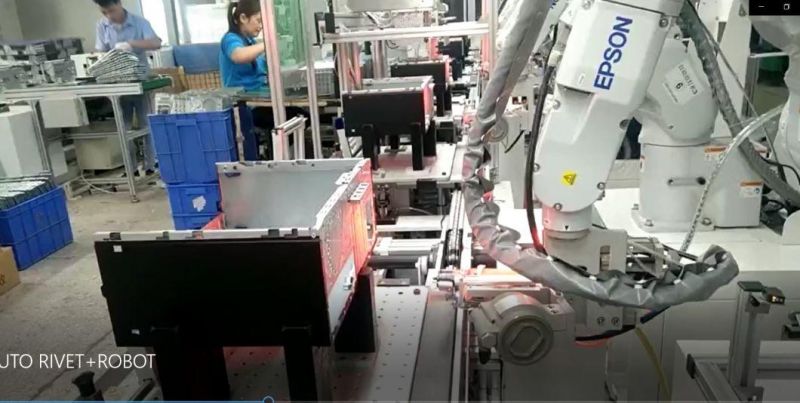

Below show auto feed riveting system+smart robot  video https://youtu.be/-VSZD-ilURc









AFAB EXHIBITION






SHIPPING BY EXPRESS OR SEA
