• Model NO.：GMMA-100L
• Power Source：Electric
• Certification：CE, ISO
• Bevel Angel：0-90 Degree
• Plate Thickness：8-100mm
• Milling Head：Dia 100mm
• Single Bevel Width：0-30mm

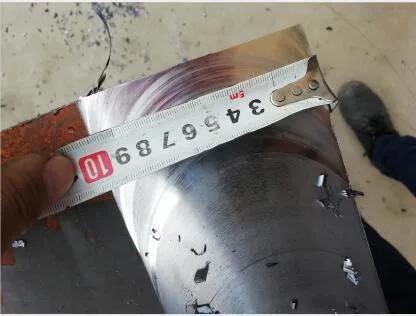

• Max Bevel Width：Upto 100mm
• Transport Package：Wooden Case
• Specification：1200J*1200
• Trademark：TAOLE
• Origin：Shanghai, China
• HS Code：846090
• Production Capacity：600 Sets Per Year

Basic Info.

Model NO. GMMA-100L Power Source Electric Certification CE, ISO Bevel Angel 0-90 Degree Plate Thickness 8-100mm Milling Head Dia 100mm Single Bevel Width 0-30mm Max Bevel Width Upto 100mm Transport Package Wooden Case Specification 1200J*1200 Trademark TAOLE Origin Shanghai, China HS Code 846090 Production Capacity 600 Sets Per Year

Product Description

GMM Flat Metal Sheet Edge Milling Shearing Chamfering Grooving Machine

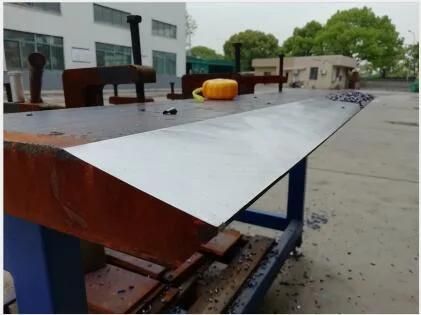

GMMA-100L Flat Metal Sheet Edge Milling Shearing Chamfering Grooving Machine mainly to do bevel cutting or clad removal / clad stripping on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc. GMMA-100L heavy duty plate beveling machine for plate thickness from 8 to 100mm, bevel angel from 0 to 90 degree adjutable. GMMA-100L can make 30mm per cut. 3-4 cuts to achieve bevel width 100mm which is high efficiency and helps a lot for saving time and cost.

Specifications for GMMA-100L Flat Metal Sheet Edge Milling Shearing Chamfering Grooving Machine

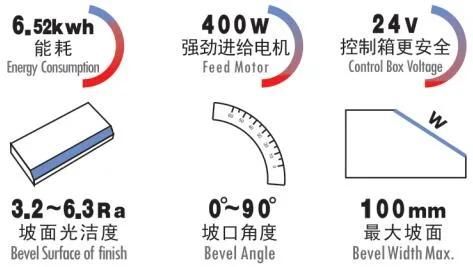

Models	GMMA-100L
Power Suppy	AC 380V 50HZ
Total Power	6520W
Spindle Speed	500-1050mm/min
Feed Speed	0~1500mm/min
Clamp Thickness	8~100mm
Clamp Width	>100mm
Clamp Length	>300mm
Bevel Angel	0~90 degree
Singel Bevel width	15-30mm
Bevel Width	0-100mm
Cutter Diameter	Dia 100mm
Inserts QTY	7 pcs/9pcs
Worktable Height	810-870mm
Suggest Table Height	830mm
Worktable Size	1200*1200mm
Clamping Way	Auto Clamping
Wheel Size	4 Inch Heavy duty
Machine Height Adjust	Handwheel
Machine N.Weight	420 kgs
Machine G Weight	480 kgs
Wooden Case Size	950*1180*1430mm

Futures for GMMA-100L Flat Metal Sheet Edge Milling Shearing Chamfering Grooving Machine

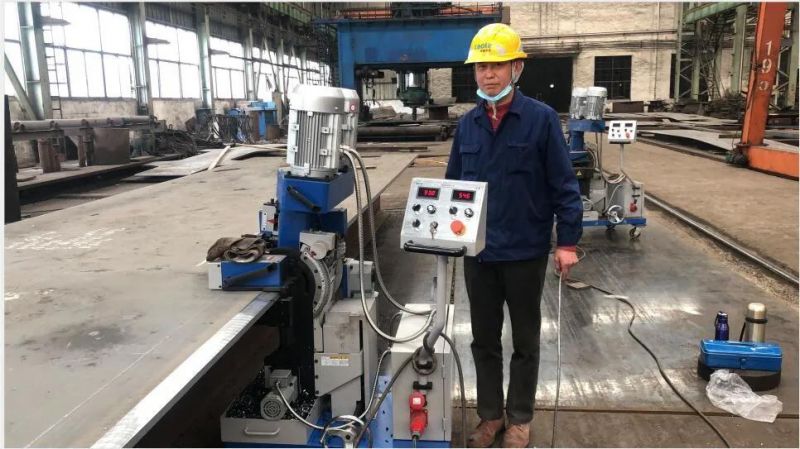

1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage (Heavy duty wheels for heavy duty plates)

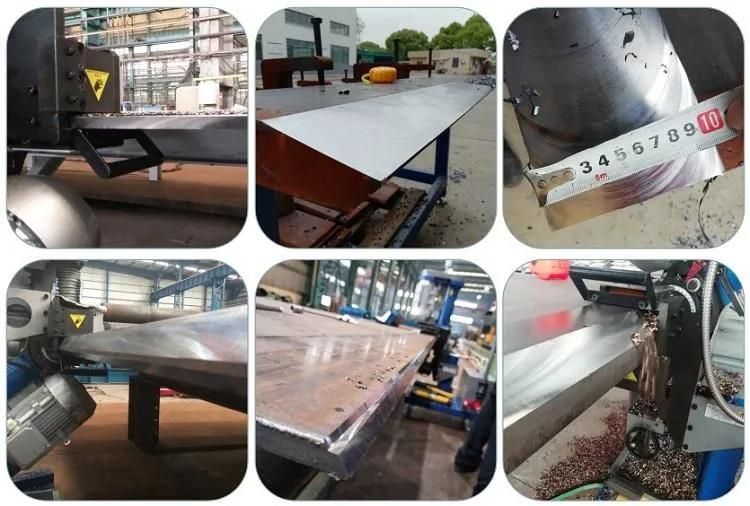

3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do        welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.



Application for GMMA-100L Flat Metal Sheet Edge Milling Shearing Chamfering Grooving Machine

1. GMMA-100L specially for heavy duty plates
2. Applicatd industry like steel construction, shipbuilding,pressure vessel,welding manufacturing



RFQ

Q1: Are you factory?
A1: Yes. We are the direct manufacture for beveling machine with brand of "TAOLE" and export with company name of "SHANGHAI TAOLE MACHINE CO.,LTD"

Q2: How long do you need for shipment?
A2; Standard models of beveling machine are stock avaiblable which could be test and pack ready in 3-5 days.  Customized solutions normally need 30-45 days fresh made. CNC edge milling machine request 3-4 months.



Inquiry Guide for plate beveling machine

Before exact price offer. Can you pls advise below points to choose suitable models for metal sheet beveling?

1. Are you user or distributor for this metal edge beveling Milling machine?
2. What is your plate material? ( Like Carbon steel, stainless steel or alloy steel etc)
3. What is your metal plate sizes? (Maximum and Minimum will be OK)
4. Do you request high precisions on the bevel surface?

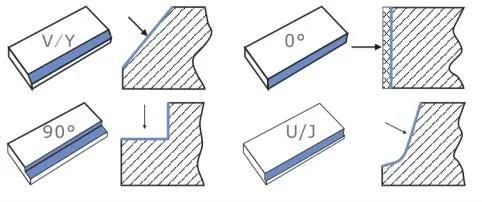

5. What kind of welding bevel joint do you need to process?  Mostly like V/Y, K/X, U/J,L type, 0 degree clad removal.
6. How about bevel sizes ? (Better if could share the drrawing and sizes)

Pls feel free to contact us if any interested models or questions. Thank you.
