Aluminium/ Stainless Steel/Color-Coated Coil/Galvanized Sheet / Special Materials Slitting Machine
Shandong Zetian CNC Machine Tool Co., Ltd.- After-sales Service:Lifelong
- Type:Slitting Line
- Forging Forming Method:Mold Forging
- Power Source:Electric
- Feature:Automation
- Certification:ISO9001, CE
Base Info
- Model NO.:ZSL-2X1500
- Warranty:12 Months
- Customized:Customized
- Advantage:Simple Structure
- Condition:New
- Material Thickness:1mm
- Material Width:1500mm
- Slitting Quantity:35 Strips
- Width Accuracy:0.05mm
- Cutting Burr:3%
- Line Speed:200 M,Min
- Coil Weight:30 Tons
- Colour:Customized
- Material:Stainless Steel Coil
- Winding Split-Level Floor:1mm
- Double Slitting Heads:Option
- Transport Package:Seaworthy Packing
- Specification:30m L X 10m W
- Trademark:ZeYe
- Origin:China
- HS Code:8460902000
- Production Capacity:60
Description
Basic Info.
Model NO. ZSL-2X1500 Warranty 12 Months Customized Customized Advantage Simple Structure Condition New Material Thickness 1mm Material Width 1500mm Slitting Quantity 35 Strips Width Accuracy 0.05mm Cutting Burr 3% Line Speed 200 M/Min Coil Weight 30 Tons Colour Customized Material Stainless Steel Coil Winding Split-Level Floor 1mm Double Slitting Heads Option Transport Package Seaworthy Packing Specification 30m L X 10m W Trademark ZeYe Origin China HS Code 8460902000 Production Capacity 60Product Description
Slitting line ZSL seriesSlitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.
Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,
cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units
1.Entry coil car,
2.Uncoil,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.

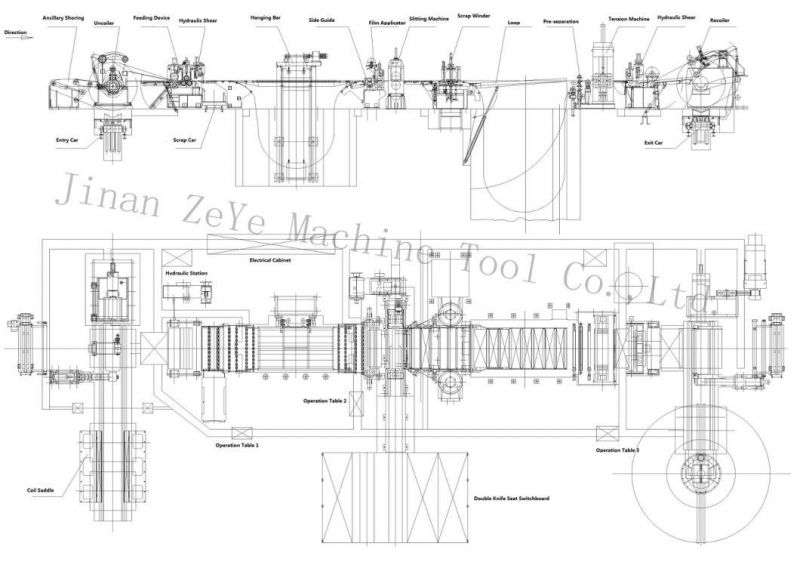

Slitting Line Layout
Main Technical Parameters
Model | ZSL-1 | ZSL-2 | ZSL-3 | ZSL-4 |
Material thickness | 0.15-1.0mm | 0.2-2.0 mm | 0.3-3.0 mm | 0.5-4.0 mm |
Material width | 300-1250 mm | 300-1600 mm | 300-1800 mm | 300-2000 mm |
Slitting quantity | 35 | 35 | 35 | 25 |
Width accuracy | ±0.05 mm | ±0.05 mm | ±0.10 mm | ±0.10 mm |
Cutting burr | <3% | <3% | <3% | <3% |
Winding split level floor | <1 mm | <1 mm | <1 mm | <1 mm |
Line speed | 200 m/min | 200 m/min | 180 m/min | 150 m/min |
Coil weight | 10,15 t | 10,15,20 t | 15,20,25 t | 20,25,30 t |
Our advantages

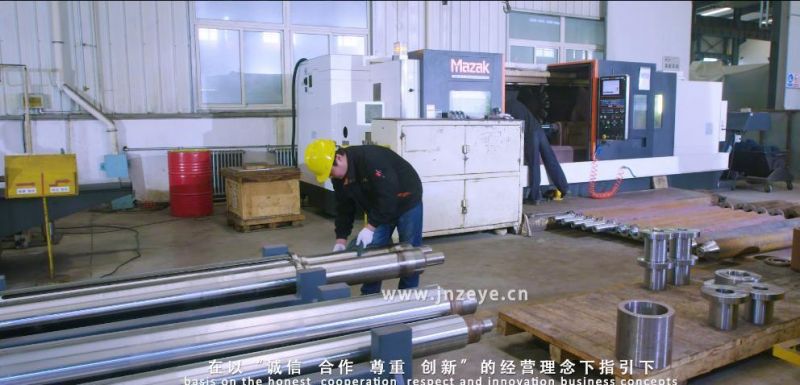

1.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.
2. Every part has been finished it's own complete technology process, such as forge, rough machined, heat treatment, cooling, burring, tempering, finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test,entry warehouse, which ensure every part meets it's the best performance.
3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified.
Part of our customers
Due to enjoy the high reputation of our shearing products in this line, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.

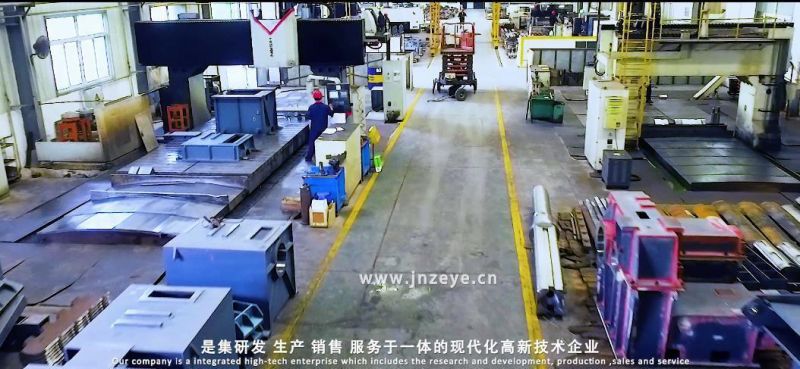

Company introduction
Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian is for import and export business, ZeYe is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.
We have one professional technical team and after sale service team, we are ready to serve you at any time.
Welcome to visit our factory.
FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team, we can design and manufacture as your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, processing precision etc.
Q: What's the shipping cost from China to our country ?
A: We could ship equipment to your port by sea, shipping cost depends on shipping agend and season.
Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .
