• Model NO.：ZFL-3X2000
• Warranty：12 Months
• Customized：Customized
• Advantage：Simple Structure
• Condition：New
• Length Accuracy：0.3mm
• Diagonal Accuracy：0.5mm
• Leveling Accuracy：1mm,M2
• Speed：75m,Min
• Coil Weight：25 Tons
• Colour：Customized
• Thickness：3 mm
• Material Width：2000mm
• Delivery Time：6 Months
• Option：Film Applicator
• Transport Package：Seaworthy Packing
• Specification：28 m L X 10 m W
• Trademark：ZeYe
• Origin：China
• HS Code：84623120
• Production Capacity：60

Basic Info.

Model NO. ZFL-3X2000 Warranty 12 Months Customized Customized Advantage Simple Structure Condition New Length Accuracy 0.3mm Diagonal Accuracy 0.5mm Leveling Accuracy 1mm/M2 Speed 75m/Min Coil Weight 25 Tons Colour Customized Thickness 3 mm Material Width 2000mm Delivery Time 6 Months Option Film Applicator Transport Package Seaworthy Packing Specification 28 m L X 10 m W Trademark ZeYe Origin China HS Code 84623120 Production Capacity 60

Product Description

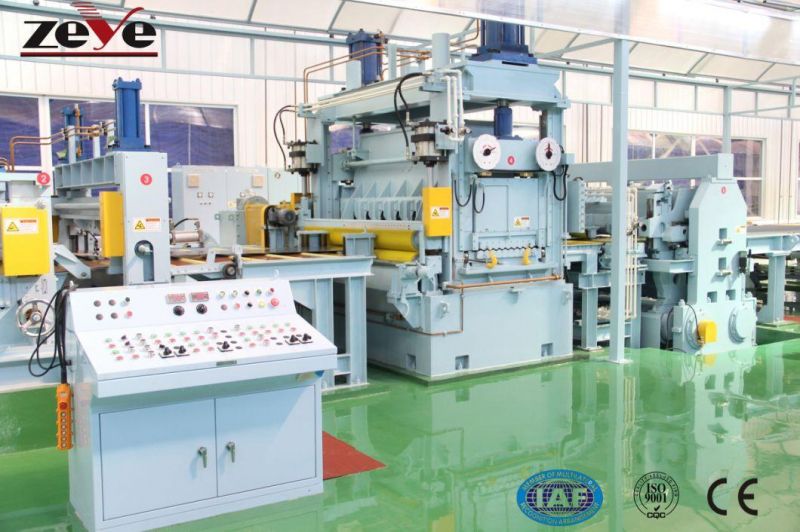

Rotary Shear Line ZFL series
Rotary shear line is mainly used for metail coil shear job from decoiling leveling, rotary shear to stacker.
Appliction material: cold-rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, copper plate etc..


Main Units
1.Entry coil car,
2.Uncoiler,
3.Precision Leveler,
4.Film applicator,
5.Measure the length roller,
6.Rotary shear machine,
7.Belt conveyor,
8.Stacker

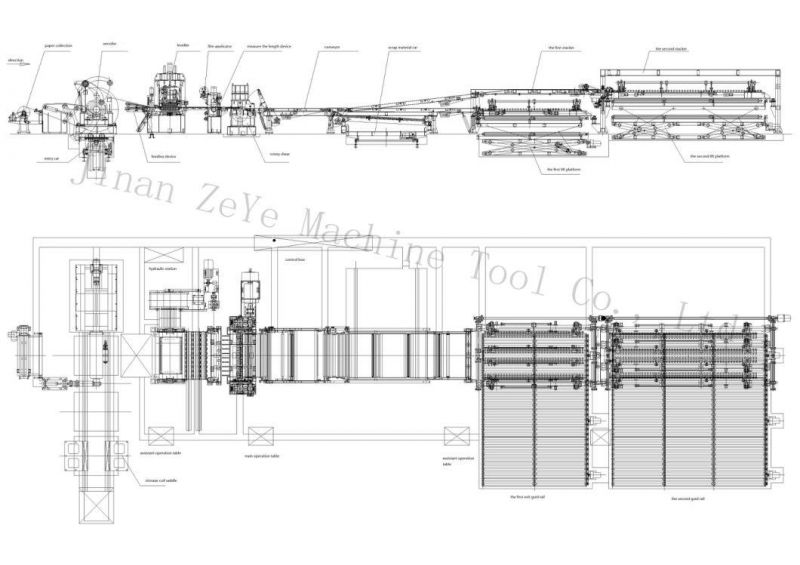

Rotary Shear Line Layout
 Main Technical Parameters

Model	ZFL-1	ZFL-2	ZFL-3	ZFL-4
Material thickness	0.1-1.0mm	0.3-2 mm	0.3-3 mm	0.5-4 mm
Material width	300-1250	300-1600 mm	300-1800 mm	300-1800 mm
Finished length	300-2000	300-2000 mm	400-4000 mm	500-6000 mm
Length accuracy	<±0.3 mm	<±0.3 mm	<±0.3 mm	<±0.3 mm
Diagonal accuracy	<±0.5 mm	<±0.5 mm	<±0.5 mm	<±0.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1 mm/m2	<1 mm/m2
Line speed	90 m/min	80 m/min	75 m/min	70 m/min
Coil weight	10,15,20 t	10,15,20 t	15,20,25 t	20,25,30 t

Our advantages

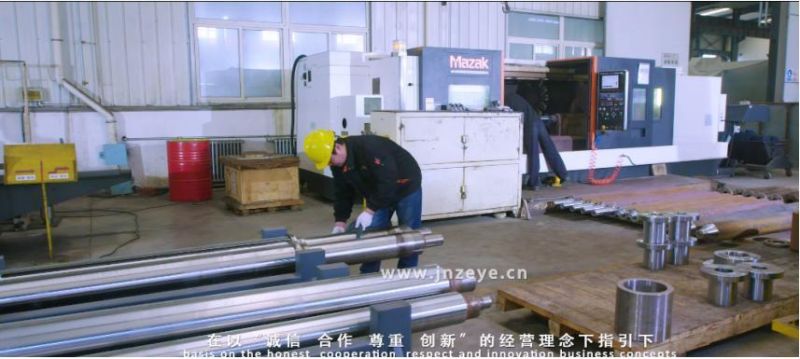

1.Japan MAZAK, Spain CORREA CNC etc.the world most advanced high precision processing equipment to ensure to produce high precision parts with stable quality.
2.Strictly inspection every section during production and assembly process, to ensusre every parts are qualified.
3.More than 23 years rich experience in design, production and assembly, which guarantee to supply you shear lines with stable quality.

Part of our customers
Due to enjoy the high reputation of our shearing products ih home and abroad market, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.



Company introduction

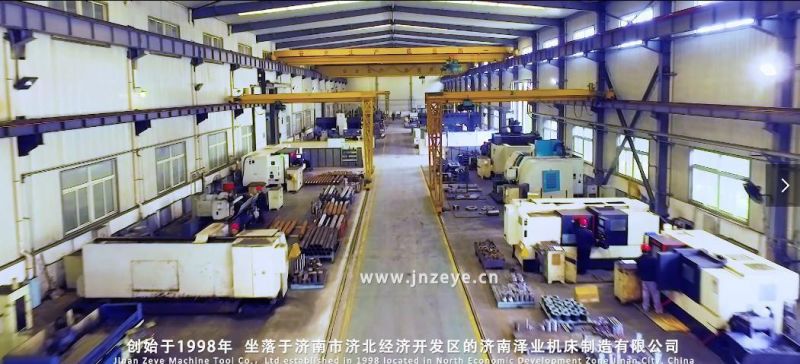

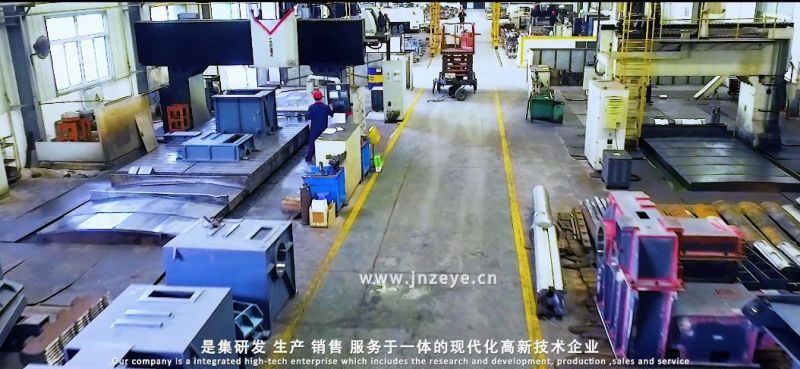

Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian ) and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian  is for import and export business,  ZeYe  is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.

We have one professional technical team and after sales service team, we serve you all the time.



Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team, we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.


Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months when the equipment run normally .
We offer online service 24 hours per day, Skype, Wechat, Email etc, you could contact us any time.
