• Model NO.：S25
• Certification：CE, ISO9001
• Type：Sand Casting

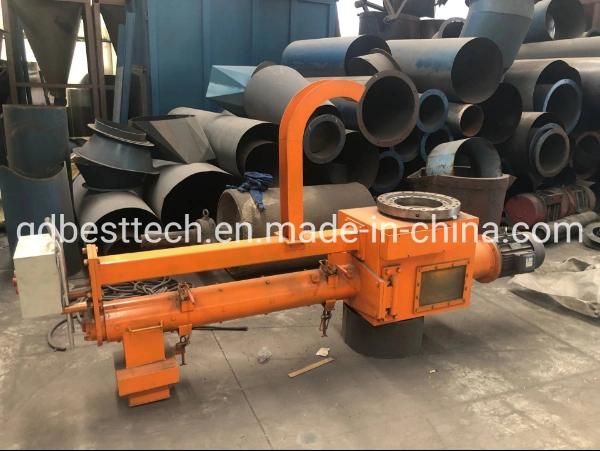

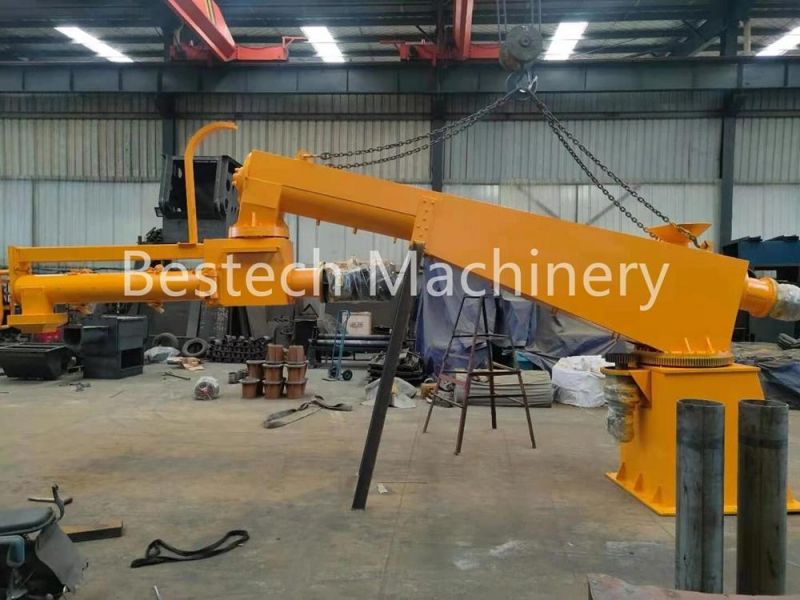

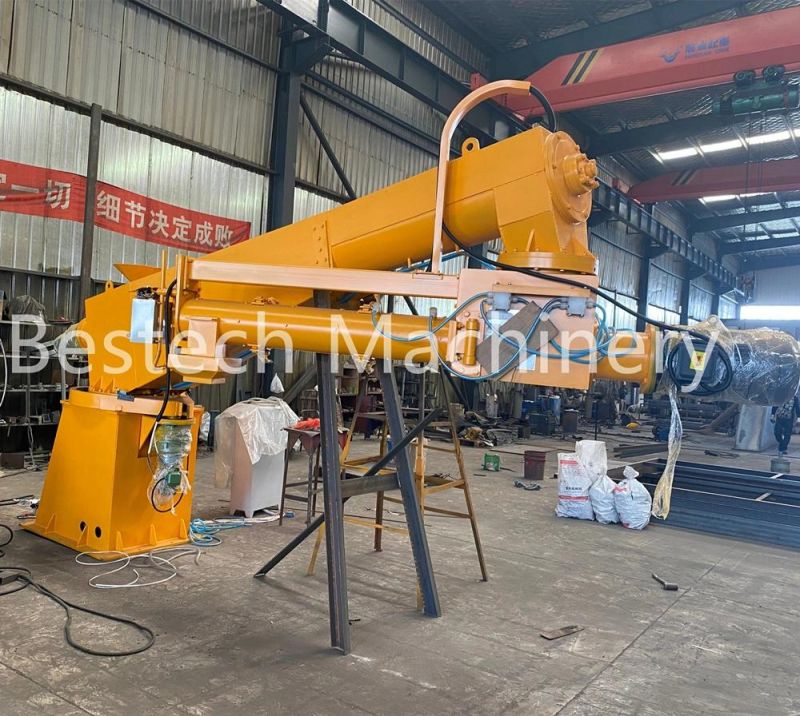

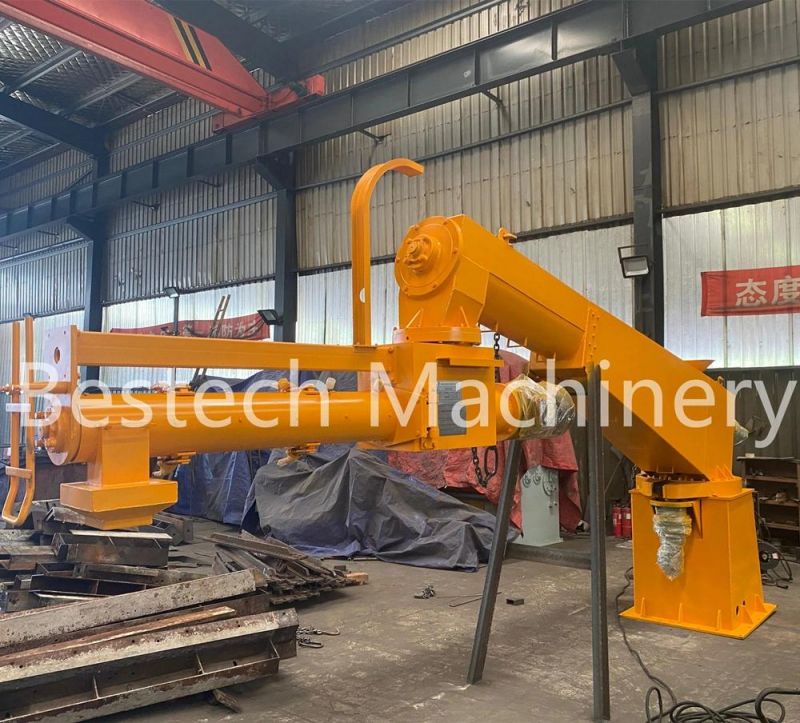

• Name：Double Arm Sand Mixer
• Color：According to Your Requirement
• Type of Sand：Resin Sand
• Use：Foundry

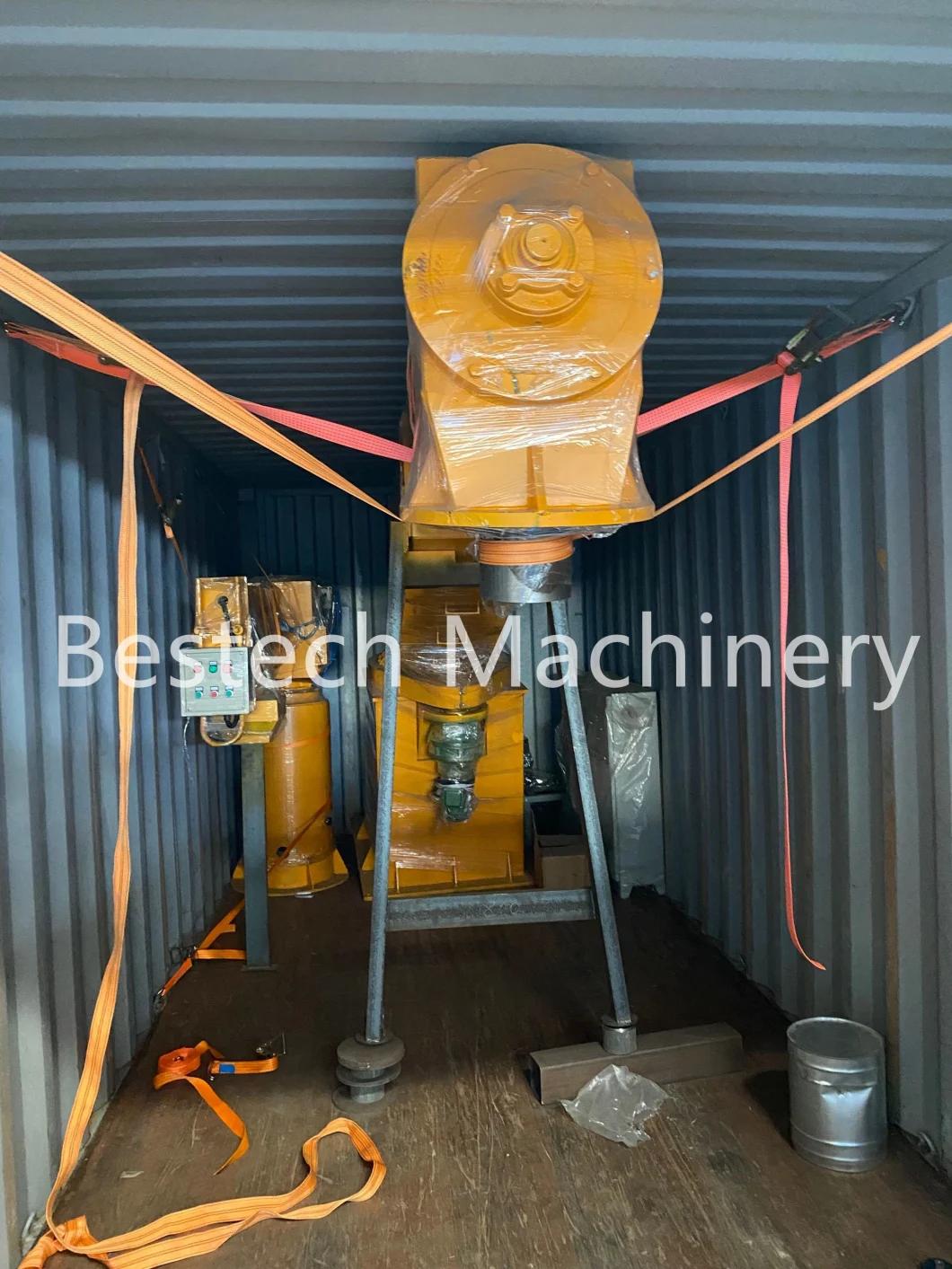

• Transport Package：Wooden Box
• Specification：CE
• Trademark：besttech
• Origin：China
• HS Code：8474390000
• Production Capacity：50sets Per Month



Main Features:

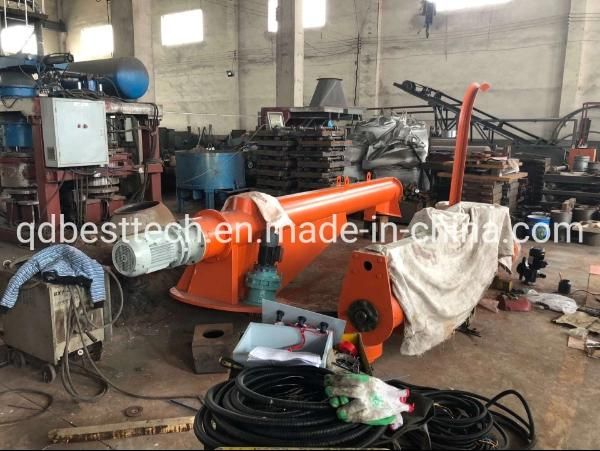

1) The two-arm continuous resin (sand) sand mixer is a single sand mixer. The machine is composed of a primary conveying agitator and a secondary sand mixing agitator.Low speed conveyor is adopted for the agitator, and high speed mixing is adopted for the agitator.



2) The mixing cage is made of fully open cemented carbide welded on sand mixing blades with a service life of over 2000 hours.



3) The liquid material is transported by mechanical diaphragm metering pump imported from Italy to transport curing agent (curing agent pump), and gear pump (with stepless variable speed motor) to transport resin, or according to the user's requirements all choose imported gear pump for transport.



4) The mixed sand head tailings are very small, and the electrical control system is controlled by imported PLC to ensure 100% operation rate of the machine.



5) Liquid material conveying valve (commonly known as proximal control valve) can be selected anti-corrosion liquid material reversing valve (backflow valve), the valve can do stop pump, sand mixer working valve in the working position when not working hit the backflow position, then work again hit the working position, to solve the problem of too much tailings when frequently open the pump head.

The liquid material is sprayed into a fan-shaped fog belt by compressed air, making it easier for the binder to mix with sand quickly and evenly. You can also choose the back blowing valve with the back blowing function.

Technical Parameter
type

productivity (T/H)

arm length(mm)
forearm length(mm)
the sand mouth height(mm)
assembly power(kw)
S255
5
2200
1200
1400
10.47
S2510
10
3000
1300
1600
16.5
S2515
15
3000
1600
1600
28.04
S2520
20
2600/3000
2100
1600
30.0
S2530
30
3000/4000
2100
1600
32.0
S2540
40
3500/4000
2100
1600
39.0
S2550
50
4000/5000
2100
1600
43.0
S2560
60
4000/5000
2100
1600
47.0
