• Model NO.：Z425 Z426 Z427
• Certification：CE, ISO9001
• Type：Sand Casting
• Name：Automatic Clay Sand Molding Machine Foundry machine
• Molding Machine：Green Sand Molding Machine
• Clay Sand：Clay Sand Molding Machine
• Flask-Less Moulding Machine：Flask-Less Moulding Machine
• Horizontal Parting Moulding Machine：Horizontal Parting Moulding Machine
• Automatic Moulding Machine：Automatic Moulding Machine
• Fully Automatic Moulding Machine：Fully Automatic Moulding Machine
• Sand Casting Machine：Sand Casting Machine
• Sand Molding Casting Machine：Sand Molding Casting Machine
• Moulding Machine：Moulding Machine
• Foundry Machinery：Foundry Machinery
• Foundry Equipment：Foundry Equipment
• Foundry Molding Machine：Foundry Molding Machine
• Transport Package：Container
• Specification：customized
• Trademark：ANTAI , ATHI
• Origin：China
• HS Code：8474802000
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. Z425 Z426 Z427 Certification CE, ISO9001 Type Sand Casting Name Automatic Clay Sand Molding Machine Foundry machine Molding Machine Green Sand Molding Machine Clay Sand Clay Sand Molding Machine Flask-Less Moulding Machine Flask-Less Moulding Machine Horizontal Parting Moulding Machine Horizontal Parting Moulding Machine Automatic Moulding Machine Automatic Moulding Machine Fully Automatic Moulding Machine Fully Automatic Moulding Machine Sand Casting Machine Sand Casting Machine Sand Molding Casting Machine Sand Molding Casting Machine Moulding Machine Moulding Machine Foundry Machinery Foundry Machinery Foundry Equipment Foundry Equipment Foundry Molding Machine Foundry Molding Machine Transport Package Container Specification customized Trademark ANTAI / ATHI Origin China HS Code 8474802000 Production Capacity 200 Sets/Year

Product Description

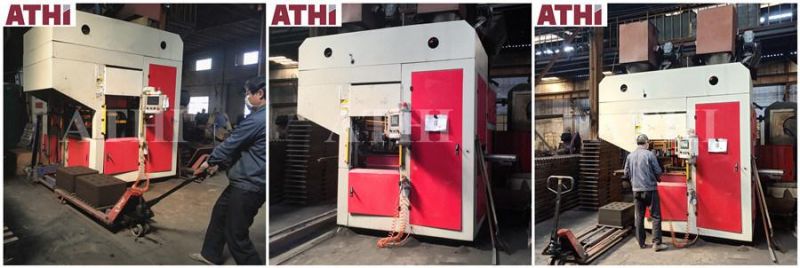

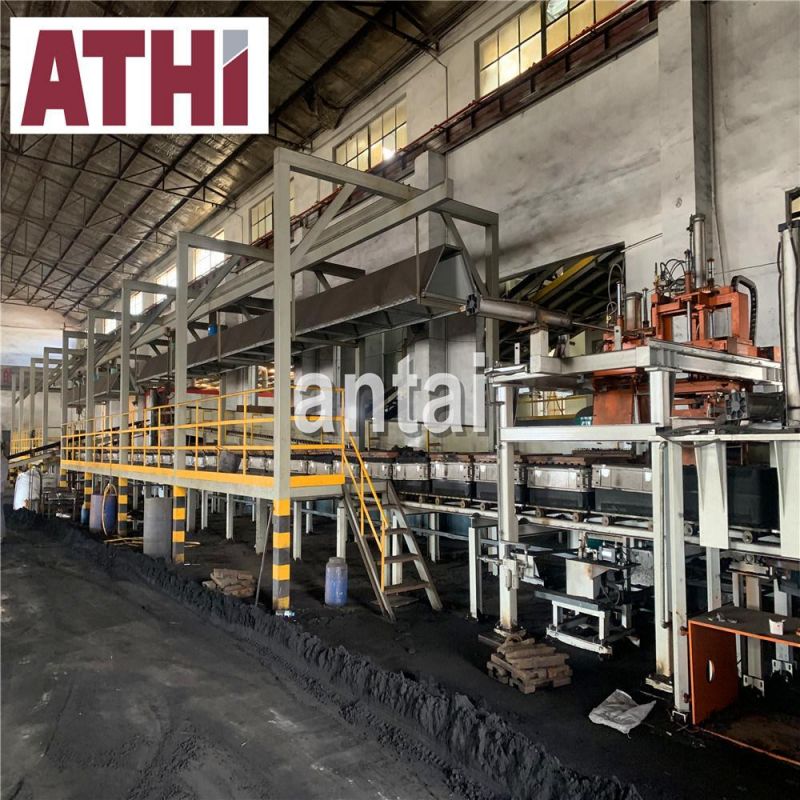

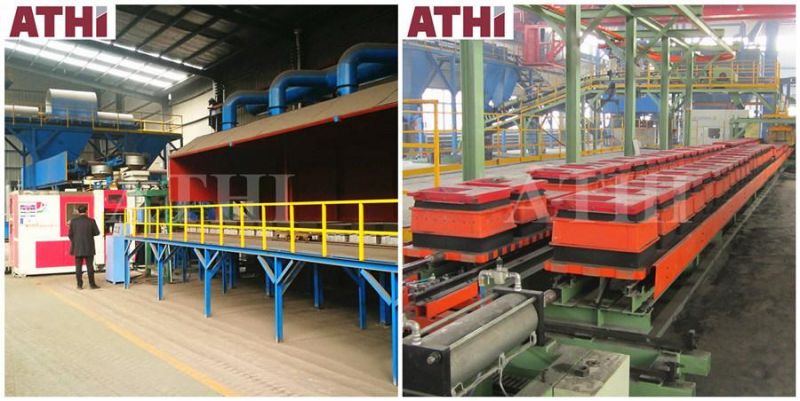

Z425 Z426 Z427 Fully Automatic Horizontal Flaskless Green Sand Molding Machine Line
     Z425 Z426 Z427 automatic moulding machine suitable for the production of automotive parts, such as cylinder head, flywheel shell, brake pliers, etc. Also suitable for the production of pipe, valve, shaft, cover plate parts, such as through, three links, bends, pipe clamps and so on. Is the most popular molding equipment in the foundry. The fully automatic horizontal flaskless parking molding Machine adopts PLC control, stable and reliable, can realize automatic operation, simple and convenient operation, small area, high productivity.

    It is highly automatic. The sizes of its castings are precise. The core-setting is convenient and stable. The effective utilization rate of the match-plate is high. It covers a small area and does not need pit.

Application:

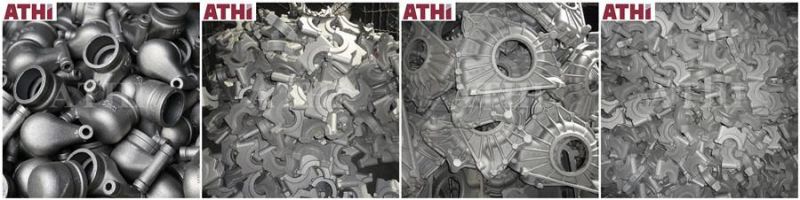

    Widely used in castings, machinery parts, auto and motorcycle parts, valves, bearings, cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clampetc .
More competitive for those products require inner sand core.

2. Technique Parameter

Parameter/Model	Z425	Z426	Z427
Foundry flask size(mm)	500*400*120-150 550*450*120-150	610*508*130-180 660*508*130-180	700*600*130-180 600*600*130-180
Productivity(Second/Mould)	36-40	40-45	40-45
Air pressure(Mpa)	0.7-0.9	0.7-0.9	0.7-0.9
Air cunsumption(m³/Min)	1.6	2	2.2
Oil pressure(Mpa)	8.5	10.6	9.2
Total power (Kw)	15	18.5	22
Sand consumption (T/h)	8.6-12	10.5-17	12-22



Parameter/Model	LZ425	LZ426	LZ427
Foundry flask size(mm)	500*400*120-150 550*450*120-150	610*508*130-180 660*508*130-180	700*600*130-180 600*600*130-180
Productivity(Second/Mould)	40-45	45-50	45-50
Air pressure(Mpa)	0.7-0.9	0.7-0.9	0.7-0.9
Air cunsumption(m³/Min)	1.6	2	2.2
Oil pressure(Mpa)	8.5	10.6	9.2
Total power (Kw)	15	18.5	22
Sand consumption (T/h)	8.6-12	10.5-17	12-22
