• Model NO.：Core Shooter
• Product Name：Core Shooter
• Transport Package：Plywood
• Specification：Standard specification
• Trademark：semc
• Origin：China
• HS Code：8424300000
• Production Capacity：10000set,Year

Product NameVertically Parting Shooting Core Machine Cold Box Core ShooterApplicationThe multi-purpose core shooter has a wide range of applications and high productivity, which is suitable for shooting sand cores under 80kg. The form of its sub box is a four opening mold, which can be used either vertically or horizontally. The multi-purpose core shooter is equipped with the most commonly used electric heating and temperature automatic controller of the hot core box, and the user can also provide the gas heater instead of the electric heater. The electric control system is controlled by a programmable controller, and the electric control box is equipped with a door opening and power-off interlock device to ensure convenient and safe maintenance.

Mold	Z954	Z955	Z956	Z957	Z958KF
Template size	500*330	550*400	650*400	800*400	1000*800
Sand shooting amount KG	20	25	25	25	30
Sand bucket capacity	200	200	200	200	200
Control method	Auto / manual	Auto / manual	Auto / manual	Auto / manual	Automatic / manual hydraulic
Installed power	20KVA	20KVA	30KVA	30KVA	30KVA

Z86f series core shooter is vertical parting core shooter and its shape. The whole machine is mainly composed of four parts.
1. Column parts: the upper frame of the equipment is mainly composed of beams and columns. The crossbeam is equipped with sand cylinder, sand hopper, sand valve components, compression cylinder and other components to form the sand supply and air supply system for core making.
2. Sand injection device: it consists of sand cylinder, air valve, sand cylinder frame, injection head, sand injection plate and other components. During operation, the sand cylinder is pressed on the upper plane of the core box by the pressing cylinder, and the sand injection valve is opened for sand injection. After the completion of sand blasting, loosen the compression cylinder (return to the original position) to complete sand blasting and sand adding.
3. Mold base parts: mainly composed of moving template, left and right support plates and guide pillars, guide sleeve, ejector pin, mold cylinder and other parts.
3.1 the whole mold base is installed on the base by left and right support plates.
3.2 the moving formwork moves left and right along the guide post under the pushing and pulling of the closing die to complete the core making process of the closing and opening die. When the movable formwork is opened, the sand core on the top core plate is ejected from the top bar on the fixed formwork, which can be easily taken out by hand.
3.3 base: the support, mold base, column, electric control box, solenoid valve, etc. of the whole equipment are installed on it.

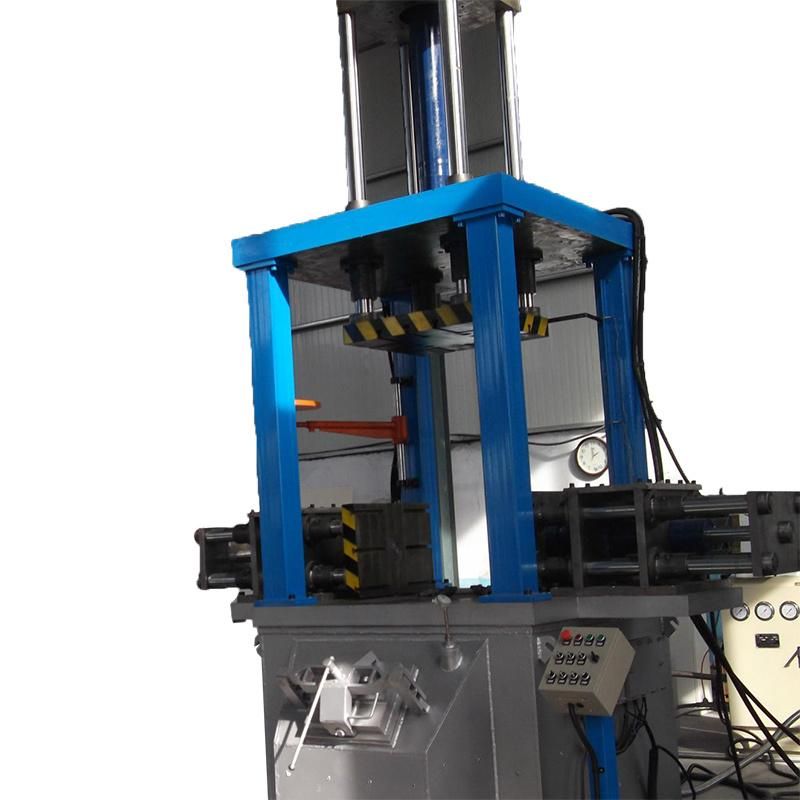

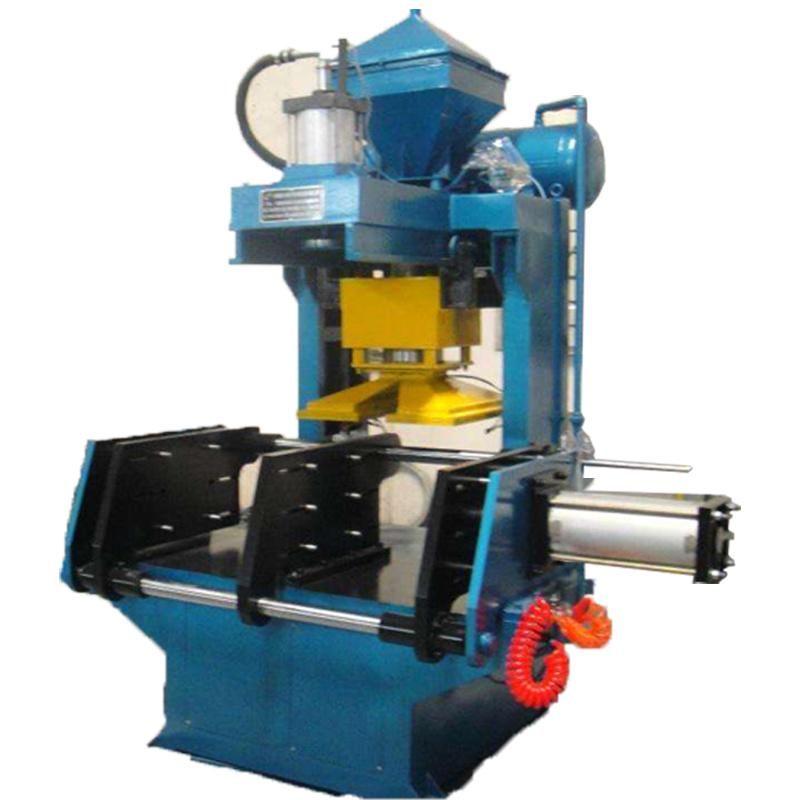

Product Show
















:
