• Model NO.：Continuous Casting Machine
• Product Name：Continuous Casting Machine
• Application：Metal Forging
• Transport Package：Plywood
• Specification：international standard
• Trademark：SEMC
• Origin：China
• HS Code：8501320000
• Production Capacity：10000ste,Year

Product NameCCM Plant Continuous Casting Machine for Steel BilletType Vertical Continuous Caster, Vertical Bending Continuous CasterCCMFix steel frame support,Rigid Dummy barCuttingby manual cuttingBillet size80x80mm with 6meter length,and so onCooling bedTransverse pusher(hydraulic) cooling bedSteel graderQ215,Q235,20MnSi,45# and so on


Oscillation control: Frequency conversion PCL control(Siemens or Delta products)
Withdrawal and straightening form:Frequency conversion PCL control(Siemens or Delta products)
Dummy head withdrawal and straightening : PCL control
Public service parameter
Water system require
A. Mould cooling water:P≥0.9Mpa,Q≥100 Nm ³/h
B. Twain cooling water: P≥0.6Mpa,Q≥30 Nm³/h
C. Machine cooling water:  P≥0.6Mpa,Q≥20Nm³/h

   Gas system
A. Oxygen(incise):P≥0.6Mpa,Q≥2.0Nm³/min
Pure≥99.5%
B. Compress air: P≥0.5Mpa,Q≥1.0Nm³/min
C. Burn gas: P≥0.3Mpa,Q≥1.0Nm³/min
Power system
Continue casting main body equipment power consumption ≥60KW  380V  50Hz
CCM public service, water supply, compressor system

Equipment NameEquipment Name1. Equipment foundation and civil works11. Dummy bar2. Steel structure platform12. Dummy bar storage device3. Casting radius13. Withdrawal straightening machine4. Strand number14. Approach roller table5. Ladle support  15. Automatic cutting machine6. Tundish    16. Transmit roller table7. Tundish car   17. Cooling bed8. Mould 18. Pusher9. Oscillation device19. Hydraulic system10. Secondary cooling system20. Computer and PLC system21. Tundish roaster
1. Strip plate mould of the entirety copper-tube mode which is simple and low cost.
2. High-frequency and small-swing plate spring vibration, the depth of vibration mark is under 0.2mm.
3. The simplified billet guiding device is low cost and easy maintenance.

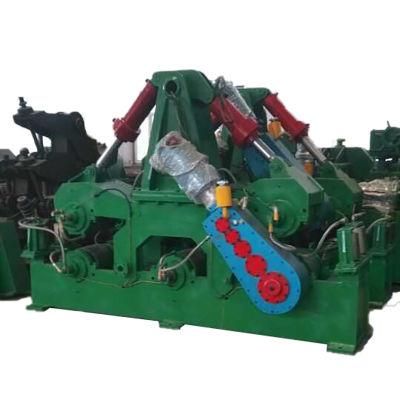

4. Five-roller and four-drive straightening machine is of the large straightening.
5. Auxiliary straightening machine can re-straighten the billet in emergency.
6. Stainless steel cutting machine can cut-to-length accurately.
7. The coping rate in the surface is less than 5%.
8. Computer and PLC system
9. Tundish roaster

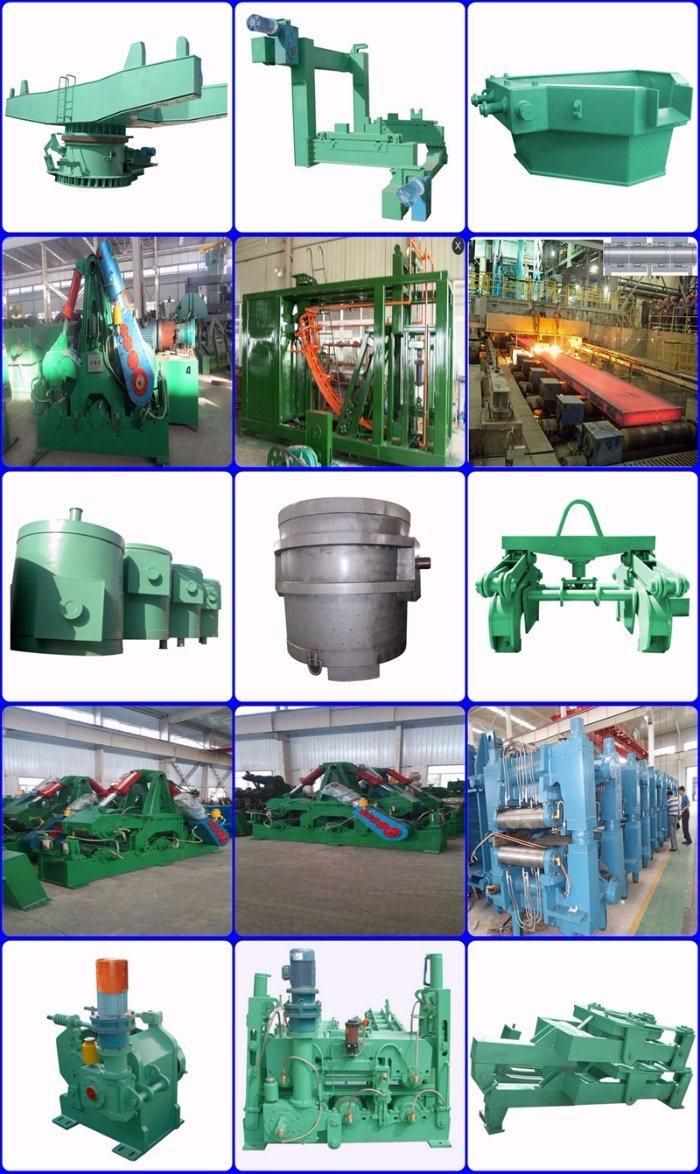

Product Show
