• Model NO.：UL
• Certification：TUV, CCC, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Straightener：2 in 1 Decoiler Straightener
• Coil Pressure Arm：Optional

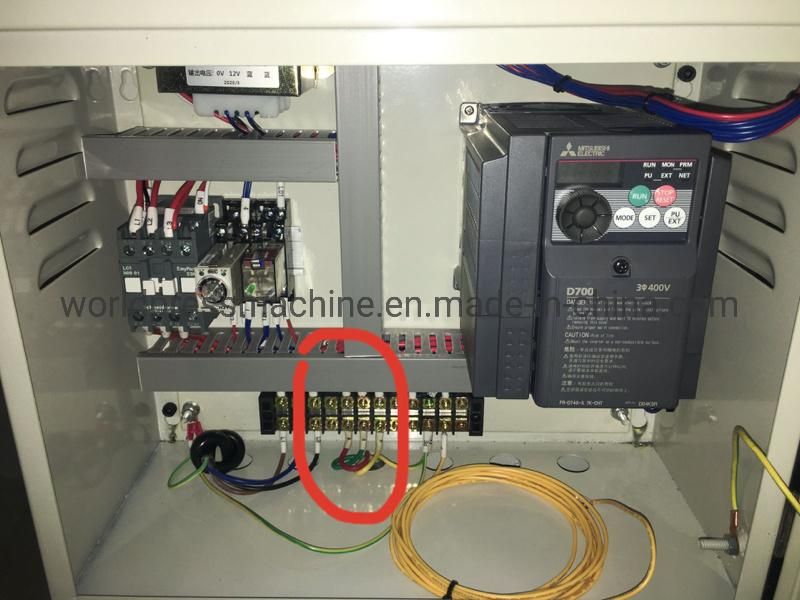

• Inverter：Optional
• Expansion Type：Manual or Hydraulic
• Coil Diameter：1200mm
• Color：Customized
• Transport Package：Wood Box
• Specification：coil with up to 600mm
• Trademark：WORLD
• Origin：China
• HS Code：84622190
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. UL Certification TUV, CCC, ISO9001, CE Warranty 12 Months Customized Customized Condition New Straightener 2 in 1 Decoiler Straightener Coil Pressure Arm Optional Inverter Optional Expansion Type Manual or Hydraulic Coil Diameter 1200mm Color Customized Transport Package Wood Box Specification coil with up to 600mm Trademark WORLD Origin China HS Code 84622190 Production Capacity 1000PCS/Year

Product Description

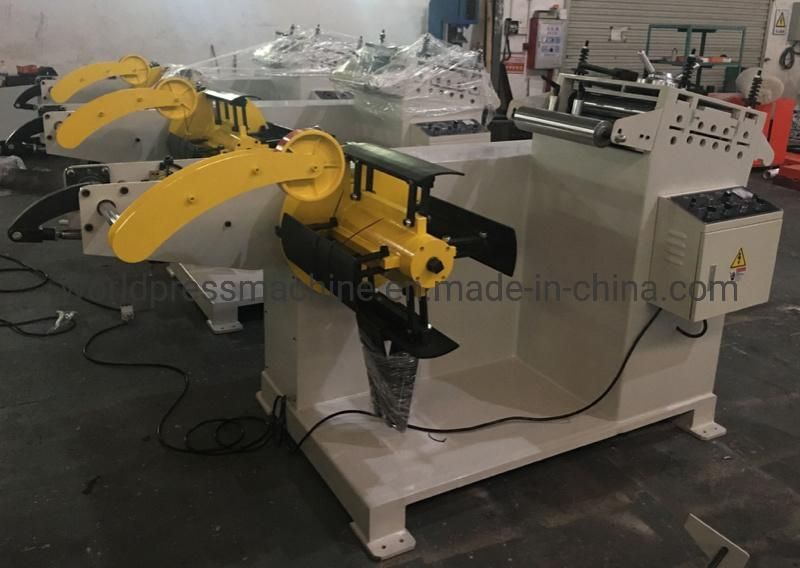

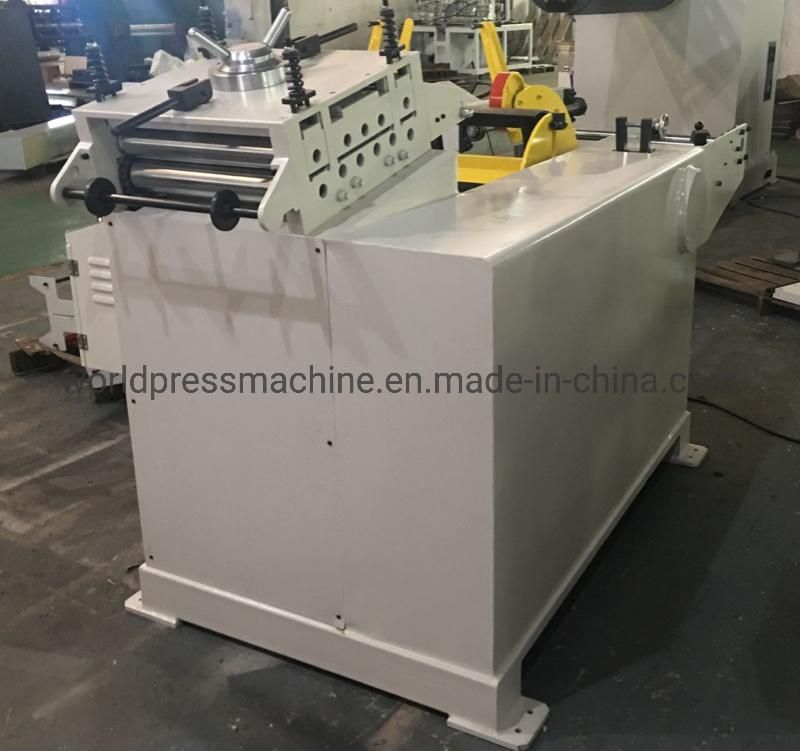

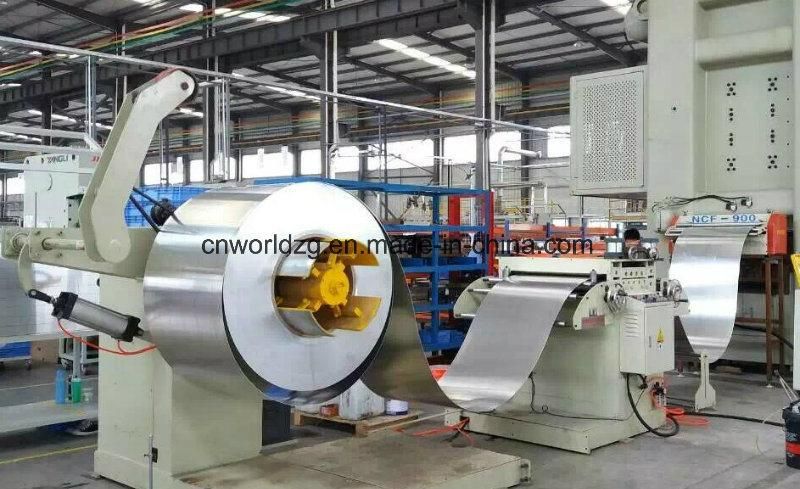

sheet metal coil decoiler straightener for automatic press line

a)      Straightener and decoiler are combined in one machine, reducing overall dimension, saving space and reducing feeding error.

b)      All rolls are made of solid bearing steel, have all been quenched, hard-chrome plated, high-hardness, strong resistance to abrasion long service life.

c)      The machine adopts air cylinder pressing material, straightening gap adjustment adopts synchronous worm gear, turning the handle one cycle can adjust the roller height 1mm. So as to very suitable for thickness material and having high precision adjustment.

d)      Suit for stamping and processing all kinds of Hardware, Toy, Auto parts, then feeding and straightening, accurate and durable.






Specifications


Model No	UL-200A	UL-300A	UL-400A	UL-500A	UL-600A
Material thickness	0.3-2.2mm	0.3-2.2mm	0.3-2.2mm	0.3-2.2mm	0.3-2.2mm
Material width	200mm	300mm	400mm	500mm	600mm
Straightener roller	Upper 3/lower 4	Upper 3/lower 4	Upper 3/lower 4	Upper 3/lower 4	Upper 3/lower 4
Feeding roller	4set	4set	4set	4set	4set
Straightening speed	15m/min	15m/min	15m/min	15m/min	15m/min
Straightening part adjustment	4 manual wheel	4 manual wheel	4 manual wheel	4 manual wheel	4 manual wheel
Coil inner diameter	∅450-530mm	∅450-530mm	∅450-530mm	∅450-530mm	∅450-530mm
Coil outer diameter	∅1200mm	∅1200mm	∅1200mm	∅1200mm	∅1200mm
Coil weight	500kg	1000kg	1000kg	2000kg	3000kg
Coil press arm	OPTIONAL PART	OPTIONAL PART	OPTIONAL PART	OPTIONAL PART	OPTIONAL PART
Expansion method	MANUAL	MANUAL	MANUAL	MANUAL	MANUAL

Model No	UL-200B	UL-300B	UL-400B	UL-500B	UL-600B
Material thickness	0.4-3.5mm	0.4-3.5mm	0.4-3.5mm	0.4-3.5mm	0.4-3.5mm
Material width	200mm	300mm	400mm	500mm	600mm
Straightener roller	Upper 3/lower 4	Upper 3/lower 4	Upper 3/lower 4	Upper 3/lower 4	Upper 3/lower 4
Feeding roller	4set	4set	4set	4set	4set
Straightening speed	15m/min	15m/min	15m/min	15m/min	15m/min
Straightening part adjustment	4 manual wheel	4 manual wheel	4 manual wheel	4 manual wheel	4 manual wheel
Coil inner diameter	∅450-530mm	∅450-530mm	∅450-530mm	∅450-530mm	∅450-530mm
Coil outer diameter	∅1200mm	∅1200mm	∅1200mm	∅1200mm	∅1200mm
Coil weight	500kg	1000kg	2000kg	2000kg	3000kg
Coil press arm	OPTIONAL PART	OPTIONAL PART	OPTIONAL PART	OPTIONAL PART	OPTIONAL PART
Expansion method	MANUAL	MANUAL	MANUAL	MANUAL	MANUAL
