Jz-936sh High Efficiency Automatic Clipboard Double Head Riveting Machine for Lever Arch File
Dongguan Jiuzhou Machinery Co., Ltd.- Automatic Grade：Automatic
- Power Supply：Electric
- Warranty：1 Year
- Certification：GS, CE
- Transport Package：Plywood Cases
- Specification：103 x 114 x 142cm3
Base Info
- Model NO.：JZ-936SH
- Trademark：Jiuzhou
- Origin：China
- HS Code：84532000
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. JZ-936SH Trademark Jiuzhou Origin China HS Code 84532000 Production Capacity 100 Sets/MonthProduct Description

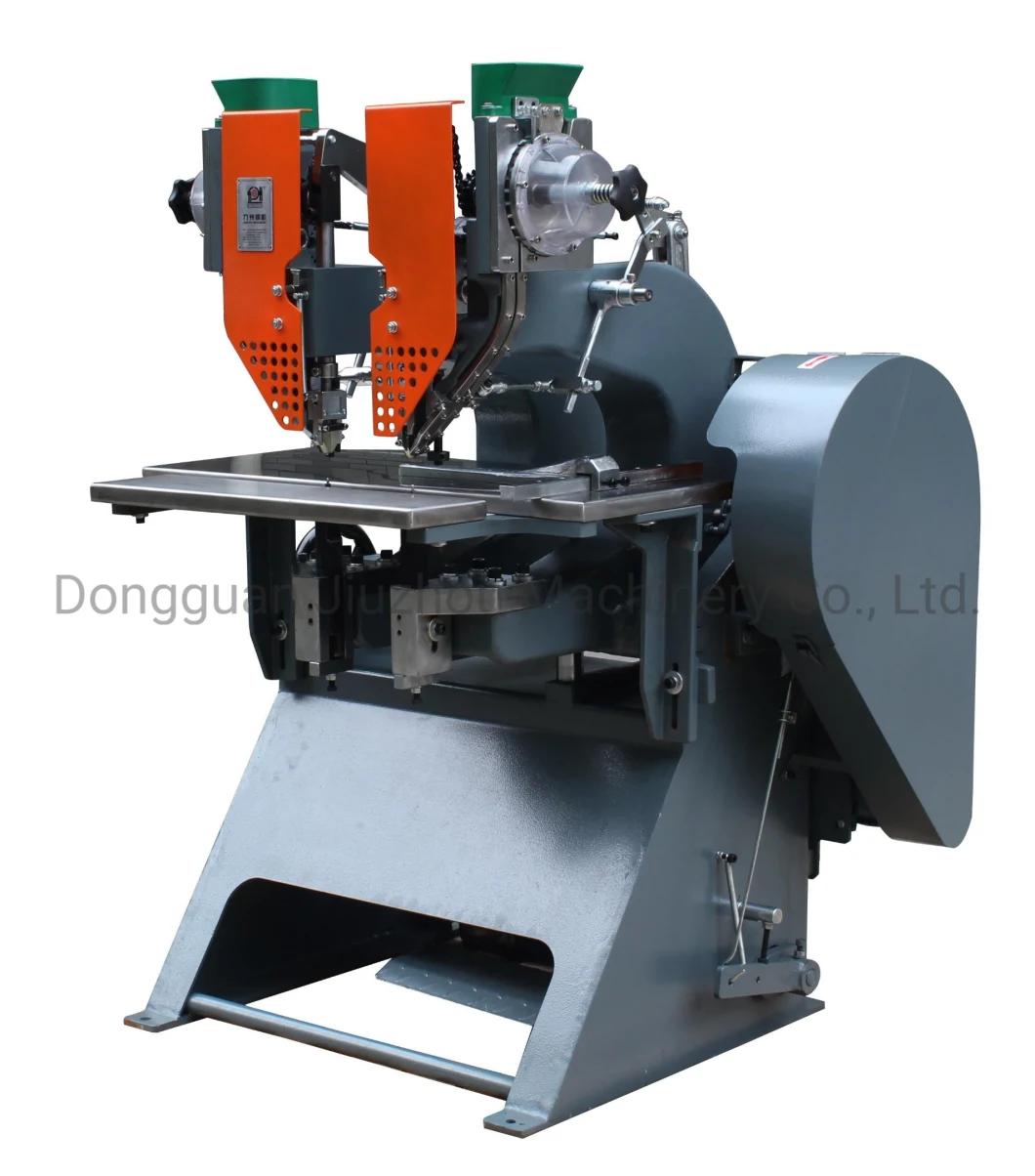

High Efficiency Automatic Clipboard Double Head Riveting Machine For Lever Arch File
Specification:
| Model | JZ-936SH |
| Rivet flange diameter | Φ6-12mm |
| Rivet barrel diameter | Φ2.5-4.5mm |
| Rivet length | 5-18mm |
| Head central distance | 45-365mm |
| Throat depth | 440mm |
| Motor | 1/2HP |
| Height from floor to bottom mold | 850mm |
| Machine dimensions (L*W*H) | 103 x 114 x 142cm3 |
| Net weight | 430kg |
| Gross weight | 565kg |
| Packing | wooden cases |
APPLICATION:

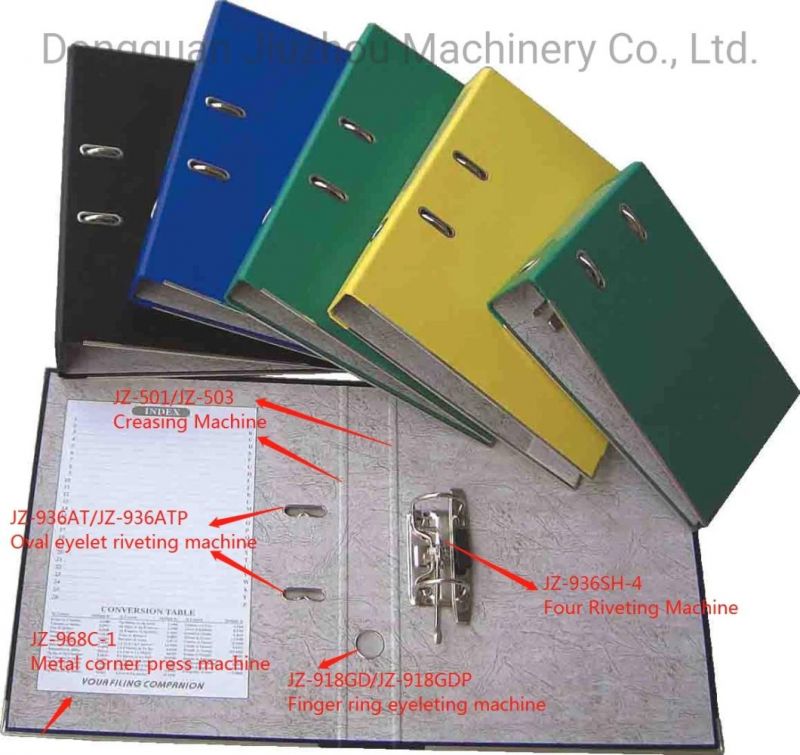

Specially used for simultaneously fixing a pair of rivets with adjustable distance in between, on arch files, clipboards, briefcases, etc
FEATURE:
Two spindle riveting at one action; And adjustable head distance (45-365mm).
