• Model NO.：JK-FS-2500BN
• Mesh Opening Size：50*50-200*200mm
• Mesh Width：2500mm
• Mesh Type：Rolling Mesh
• Welding Speed：45-60times,Min
• Raw Material：Low Carbon Steel,Stainless Steel
• Control System：PLC
• Power Supply：120kw
• Machine Name：Reinforcing Wire Rolled Mesh Welding Machine for 3
• Transport Package：Plastic&Wooden Box
• Specification：CE, ISO, SGS
• Trademark：JIAKE
• Origin：Anping. Hebei, China
• HS Code：8463300000
• Production Capacity：4200kg

ModelDP-FP-2500BNWire diameter3-6mmLongitude wire space50-300mmCross wire spaceMin.50mmMesh widthMax.2.5mWelding speed45-60 times/minLongitude wire feedingFrom wire coilsCross wire feedingPre-straightened&pre-cutWelding electrodes48pcsTransformers125kva*6pcsMachine size2.9*3.2*1.7mWeight4500kg

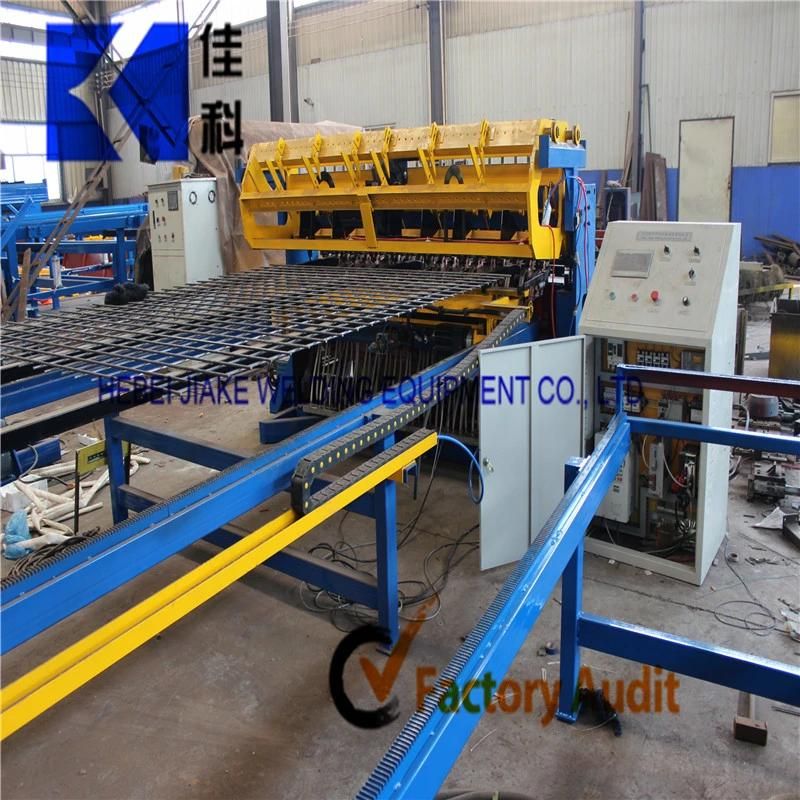

Machine Description
1.Control system: Panasonic (Japan) PLC program, Weinview (Taiwan) touch screen.
2.Wire feeding system: longitude wire from wire coils; cross wire-hopper device with step motor.
3.Cooling system: casting water-cooling transformers.
4.Mesh pulling system: Panasonic (Japan) servo motor for pulling mesh.
5.Special technology: Brake clutch motor connects the principal axis directly, working stable.
6.Machine material:  thick steel plate and profile steel, high strength and toughness.

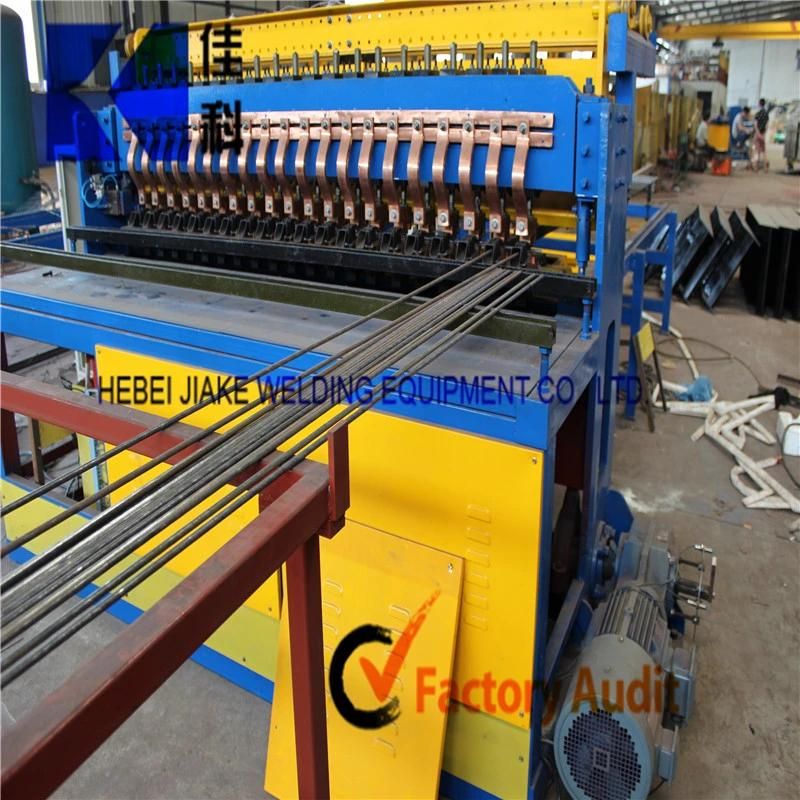

7.Welding electrodes: pure red copper, can be used 3-6 months.







Our service

1. Guarantee time:one year since machine was at buyer' factory within 24 months against B/L date
2.Within guarantee time, if any components are broken under normal condition, we can change for free.
3.We can send our best technician to buyer's factory for installation, debugging and training.
4.Complete installation instructions, circuit diagram, manual operations and machine layout.
5.24 hours technical support by e-mail.
