Manual Powder Coating Equipment with Ce
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：12 Moths
- Type：Powder Coating Machine
- Coating：Powder Coating
- Substrate：Iron
- Certification：CE, ISO
Base Info
- Model NO.：FF-660
- Condition：New
- Packaging：Carton,Wood Case
- Dilivery：3days After Depoist
- After Sales Services Provided：Engineer Is Available
- Power Range：220V
- Frequency：50Hz
- Operational Method：Manual
- Packing Dimension：123*78*83
- Packing Weight：55kg
- Transport Package：Carton
- Specification：CE ISO
- Trademark：FF
- Origin：Zhejiang Hangzhou
- HS Code：8424899990
- Production Capacity：1000sets,Month
Description
Powder Gun
Gun weight: ......... 500G
Rated output voltage ...… 24VDC
Input voltage ......… - 200kv
Maximum output current ...… 180Ua(max)
Maximum output voltage...... 0-100KV ( adjustable)
Maximum powder injection :...… 600g/min
Polarity ......... negative (-)
Pneumatic technical spec
Maximum input-air pressure ........ 8kg/cm
Optimum input-air pressure..... 6kg/cm
Minimum input-air pressure ... 4kg/cm
Maximum water vapor content or compressed air ….. 1.4g/N m3
Maximum oil vapor content of compressed air ..... 0.1ppm
Maximum cimpressed-air consumption...… 13.2 m3/h
TPulse coating ........ ........ ........ 15~20 clock/sec

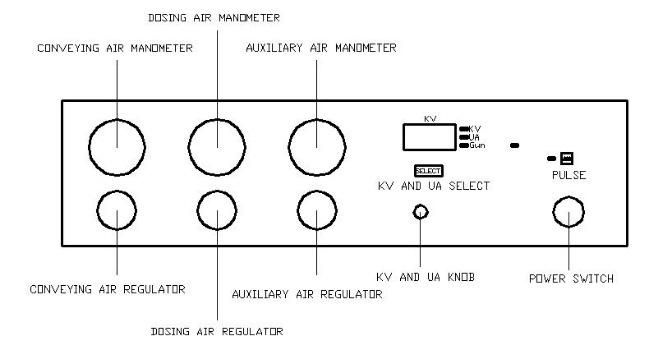

Control unit for hopper model-front
Any question about installation or others information ,just contact us without hesitation.
