Cartridge Filter Powder Spray Booths
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：12 Moths
- Type：Powder Coating Booth
- Coating：Powder Coating
- Substrate：Aluminum
- Certification：CE, ISO
Base Info
- Model NO.：COLO-S-2315
- Condition：New
- Voltage：380V,220V Customzed
- Power Supply：Electric
- Item：Colo-S-2315
- Product：Cartridge Filter Powder Spray Booths
- Overall Dimensions：3000width X 2000 Height X 2200 Depth
- Delivery Time：7-10 Working Days
- Filters：4 PCS
- Name：Cartridge Filter Powder Spray Booths
- Recover Rate：98%
- Transport Package：Wooden Cases
- Specification：CE ISO
- Trademark：COLO
- Origin：China
- HS Code：84243000
- Production Capacity：100set,Year
Description
Basic Info.
Model NO. COLO-S-2315 Condition New Voltage 380V/220V Customzed Power Supply Electric Item Colo-S-2315 Product Cartridge Filter Powder Spray Booths Overall Dimensions 3000width X 2000 Height X 2200 Depth Delivery Time 7-10 Working Days Filters 4 PCS Name Cartridge Filter Powder Spray Booths Recover Rate 98% Transport Package Wooden Cases Specification CE ISO Trademark COLO Origin China HS Code 84243000 Production Capacity 100set/YearProduct Description
Cartridge Filters Powder Spray booths
Model: COLO-S-2315
Working size: Depth1500*Width2300*Height1500mm
The powder spray booth is Ideal for small to medium powder coating application, used for coating a wide range of metal work-pieces
This model has 4pcs of cartridge filters to achive effective powder recycling.
COLO-S-2315 Powder Spray Booth is popular among world customers for its economic and convenient using advantages.

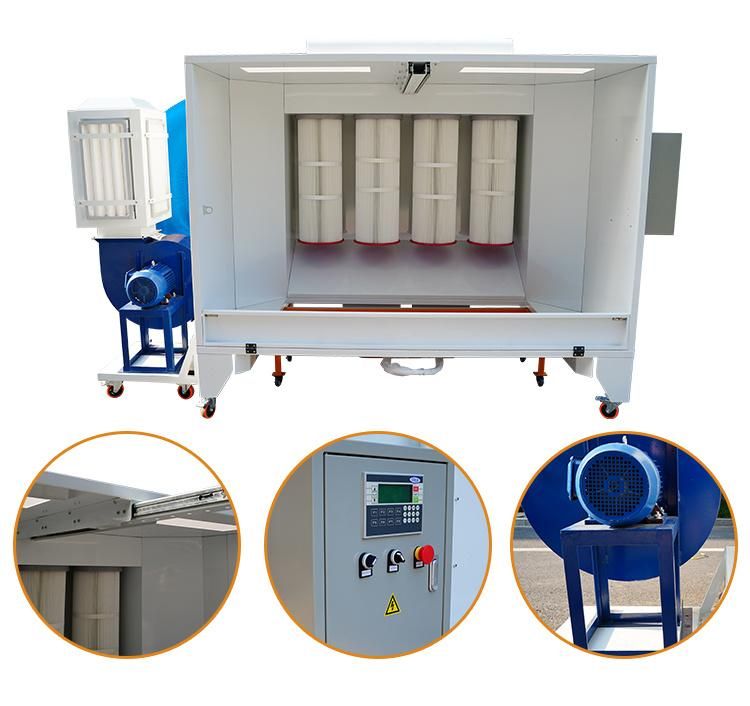

Detailed Pictures
PLC control system & lamps
4 pcs of cartridges filters, made of high quality imported polyester.
Specifications of COLO-S-2315 Powder Spray Booth
| Model | COLO-S-2315 |
| Booth Type | Closed |
| Operator dimensions | D1500*W2300*H1500mm |
| Overall dimensions | D2070*W2750*H2180mm |
| Weight | 450kg |
| Power supply | Electric |
| Nominal power | 4kw |
| Voltage | 380V 3PHASE |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 4(325*900) |
| Filters hang type | easy for change |
| Filter cleaning system | Pneumatic |
| Air consumption | 6677-13353m3/h |
| Warranty | 12 months |
Excellent Advantages
1.Easy Installation
The booth and powder module(s) are factory assembled and shipped complete, making for a much quicker installation and start-up process.
2.-Jet Filter Cleaning
A pressure change in the cartridge filters. When the filters' differential pressure reaches the upper set point, reverse pulsejet cleaning begins by pulsing compressed air through the filters. This means you need to change filters less often.
3.Easy Filter Replacement
Held in place with a lever operating mechanism, cartridge filters are easy to remove and replace. An include air solenoid value allows for easy filter maintenance.
