• Model NO.：XQ-2B
• Power Supply：220V, Single Phase, 50Hz
• Transport Package：Export Wooden Case
• Specification：Manual
• Trademark：Laihua
• Origin：China
• HS Code：9024109000
• Production Capacity：100 Sets

Basic Info.

Model NO. XQ-2B Power Supply 220V, Single Phase, 50Hz Transport Package Export Wooden Case Specification Manual Trademark Laihua Origin China HS Code 9024109000 Production Capacity 100 Sets

Product Description

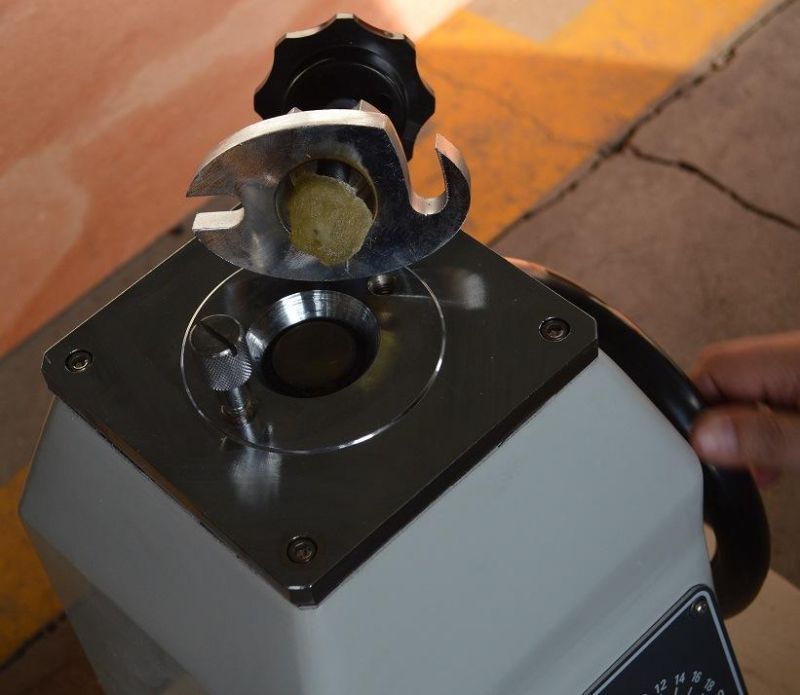

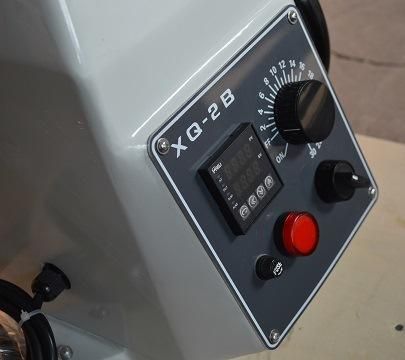

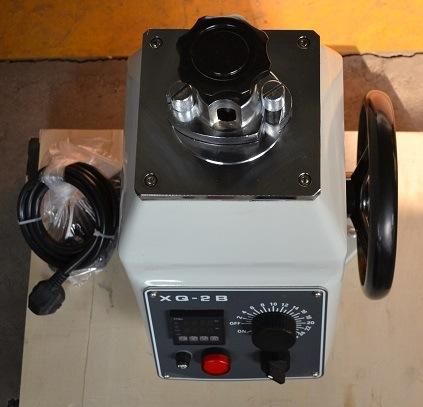

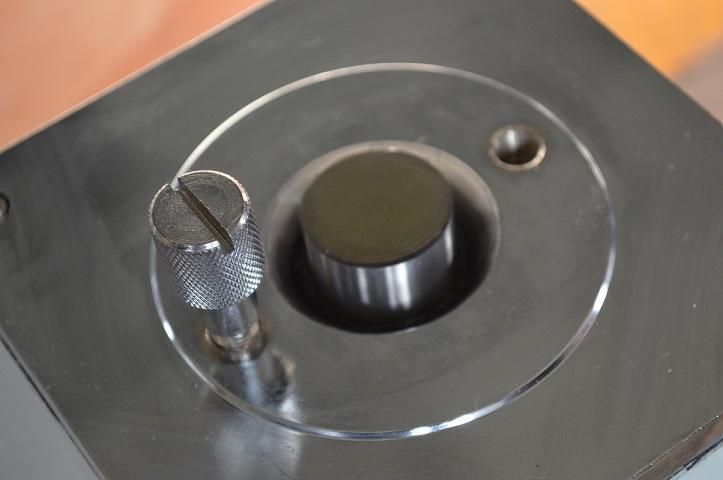

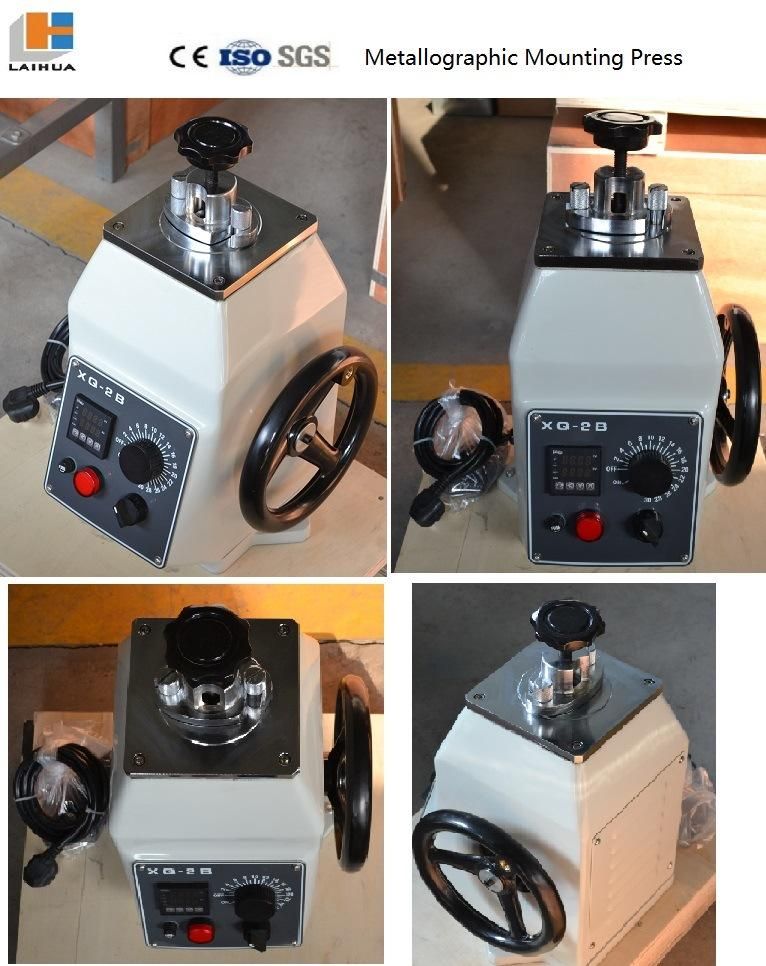

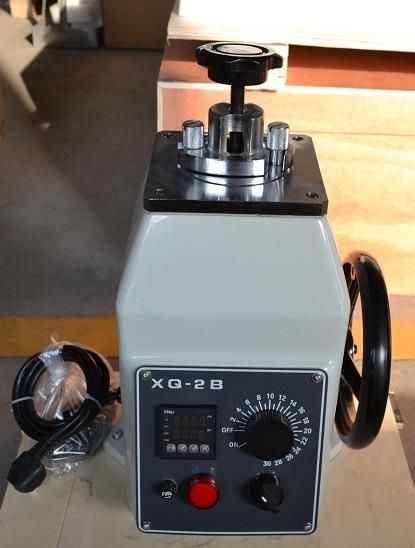

XQ-2B Metallographic Specimen Hot Mounting Press

Features and Application:
XQ-2B mounting press machine is designed for the purpose of mounting process of those small, difficult-to-hold or irregular specimens before grinding and polishing. After mounting process, it can facilitate the grinding and polishing of specimen, and also easy to observe material structure under metallographic microscope, or measure the hardness of the material by hardness tester.

Working conditions:
1)The height is no more than 1000m;
2)The temperature of surrounding medium can not be lower than -10 °C or over 40 °C;
3)The relative humidity of air should be no more than 85% (20 °C).
4)The voltage fluctuation should be no more than 15% and there should be no obvious vibration source around.
5)There should be no current conducting dust, explosive and corrosive air.

Technical Parameter:

Specification of the Sample	22*15mm, 30*15mm, 45*18mm (choose one)
Heater Specifications	650W,220V,50Hz
Range of Temperature Adjusted	100~180°C
Power supply	Voltage fluctuations within ±15%, 220V,50Hz
Dimension	330*260*420mm
Net Weight	33 Kg

Package and Shipping:

Packaging: Standard export package, wooden case

Delivery: 3-15 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.
