• Model NO.：850 steel tile making machine
• Feature：Automation
• Certification：ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Name：850 Steel Tile Making Machine
• Color：Customized
• Roller Material：45 Steel
• Main Fram：300 H Steel
• Function：Steel Roof
• Suitable to Process：0.3-0.8mm
• Material of Rollers：13
• Raw Material：PPGI
• Control System：PLC
• Product Name：850 Steel Tile Making Machine
• Transport Package：Nude in Container
• Specification：steel
• Trademark：DIXIN
• Origin：China, Hebei, Botou
• HS Code：845522
• Production Capacity：300,Month

No.Main parameter for  850 steel tile making machine1Suitable to processGalvanized/Aluminum/Color steel sheet2Width of plate1000mm3Thickness of plate0.3-0.8mm4RollersHigh grade 45# steel, with hard chrome plating5Forming steps166Sprocket chain1.5 inch7Pump station power4kw8Shaft75mm, high grade 45# steel, heat treatment9Hydraulic oil pumpCB-E31010WeightAbout 5.0 tons11Productivity8-12m/min12Cutting headCr12 mould steel with quenched treatment13Control systemTAIDA brand PLC control14Voltage380V 3Phase 60Hz15Motor power4kw16DimensionAbout 6.8m*1.5m*1.5m17Hydraulic pressure10-12mpa18Index error of length±1mm19The temperature range of working line-35-50°
2. Work flow:
Decoiling the sheet----sheet guilding----film covering(option)----roll forming----PLC controlling----hydraulic cutting----receiving the finished panel

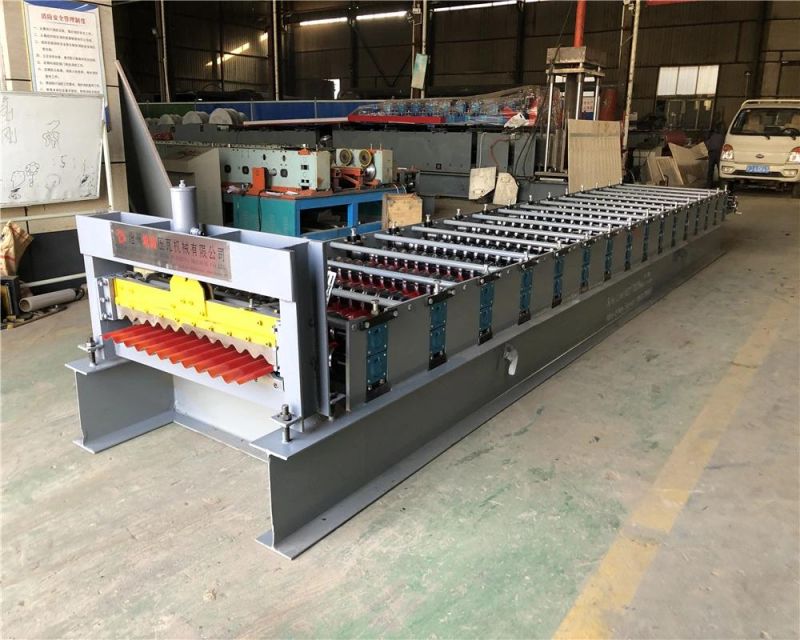

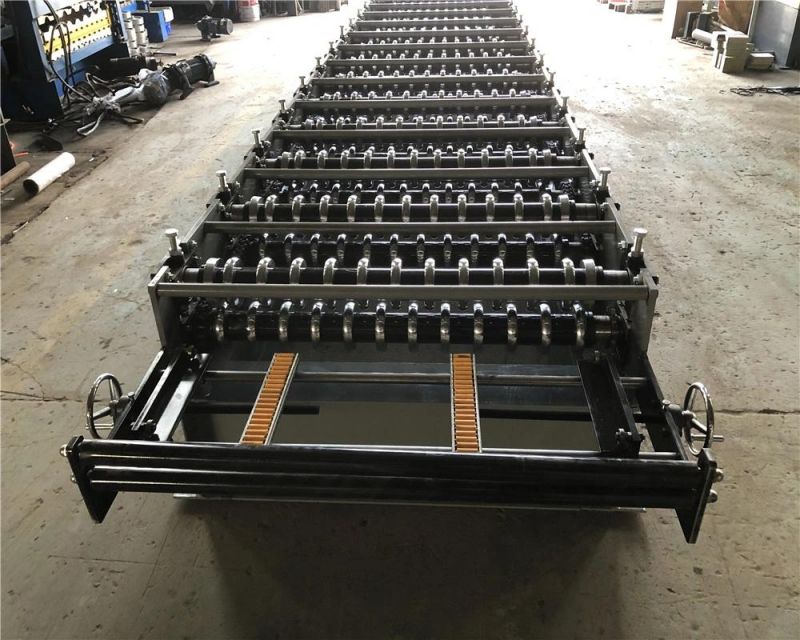

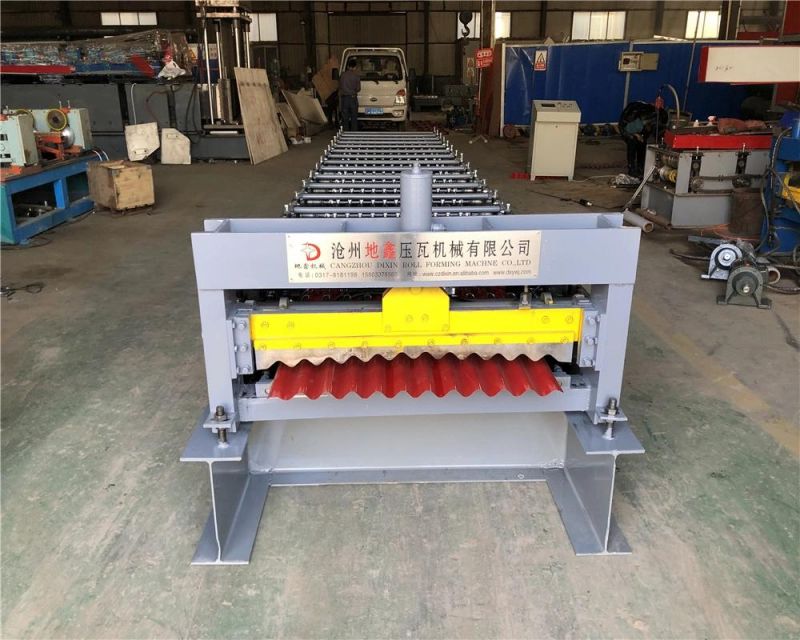

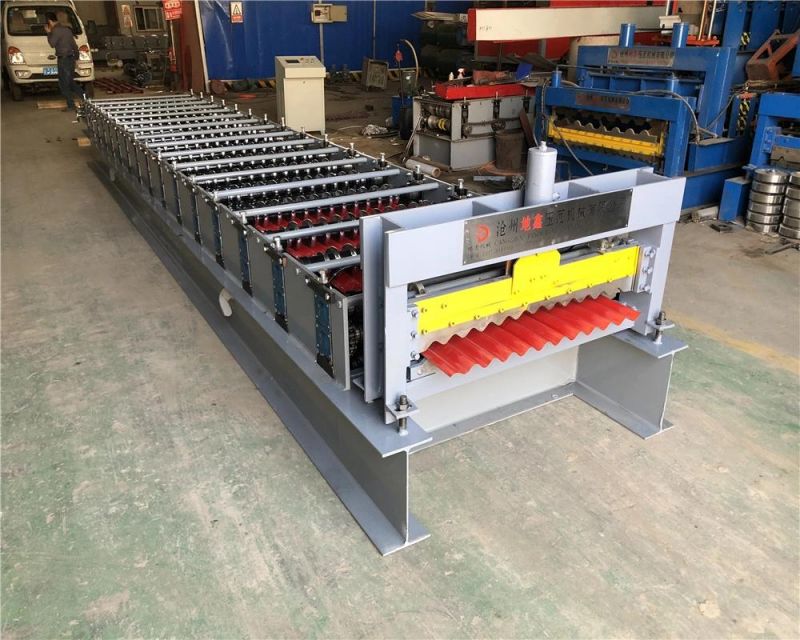

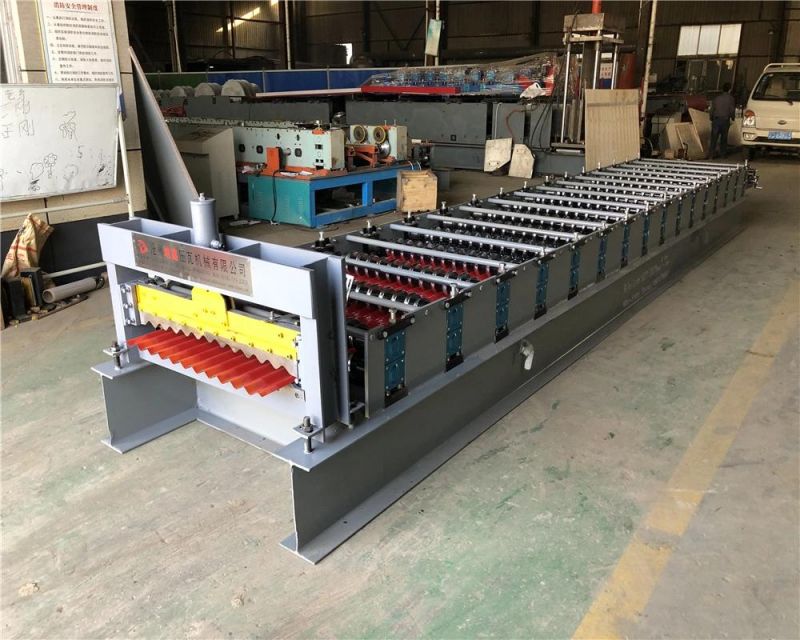

3.Advantage of CE  authentication corrugated 850 steel tile making machine for building     DIXIN roll forming machine1High grade quality2Reasonable price3High efficiency4Low failure rate5Low energy consumption6Free after-sale service7Reliable working8Durable9Wide application10Beautiful appearance11Welcomed by all over the world customers12Professional foreign trade team13Mature technician team14Customize special type3.Some machine photos for your reference

FAQ
1.Q: How can I contact you?
A: You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you.
2. Do you have after sales support?
A:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3.Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
     2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
4.Q: How many years since you have been in this field?
A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.
5.Q. What can you do if the machine broken?
A:Our machine's warranty period is 12months, if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself. if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
6.Q:How long the machine could be made?
 A:Normally speaking,  machine could be made within 30 working days. If you need machines in a hurry, we can make it for you less than a month.
6.Q:If our country's voltage is different from yours, how to solve that?
A:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
