• Model NO.：CNC-860
• Trademark：Jiangnan Machinery
• Origin：China
• Production Capacity：600set Per Year

Basic Info.

Model NO. CNC-860 Trademark Jiangnan Machinery Origin China Production Capacity 600set Per Year

Product Description

Product Category: Computerized Universal Spring Forming Machine


Name: CNC-860


The main technical parameters:




Item	Parameter
Wire Diameter	Ø2.0-Ø6.0mm
Outside Diameter	Max Ø80mm
Wire Feed Length	±0.01-±9999.99m
Wire Feed Speed	0-110m/min
Cam Instruction	±0.1°-±359.9°
Cam Rotation Speed	0-60RPM
Cam Servo Motor	7KW
Wire Feed Servo Motor	15KW
Axis Servo Motor	1KW
Power	380V±10%V50Hz
Dimensions(L*W*H)	2200*1150*2000mm
Weight	3500 (Kg)


Functions and Features:

1.It combines the design of Jiangnan Computer Control System and servo motor imported from Japan.
2.The computer offers the language options of both Chinese and English ,featuring easy operation and accurate positioning.
Computer can control three to eight servo motor,all motor can be synchronous or run alone.
3.The precise detection and tracking device is utilized to stop automatically in case of unqualifed products.
4.The outside diameter and angles can be modified at any time according to the working condition on the fluorescent screen.
5 Automatic mechanical design of self-lubricating oil supply ensures the equipment operation for a long time.
6.In the event of the wireless,disconnection,tangled lines, automatic machine halt and automatic acceleration make production efficient.
7.Processing scope includes torsion spring,straight spring,tension spring,rectangle spring,wire forming,volute spring,spring and various
 fancy spring,complex and special spring ,etc.

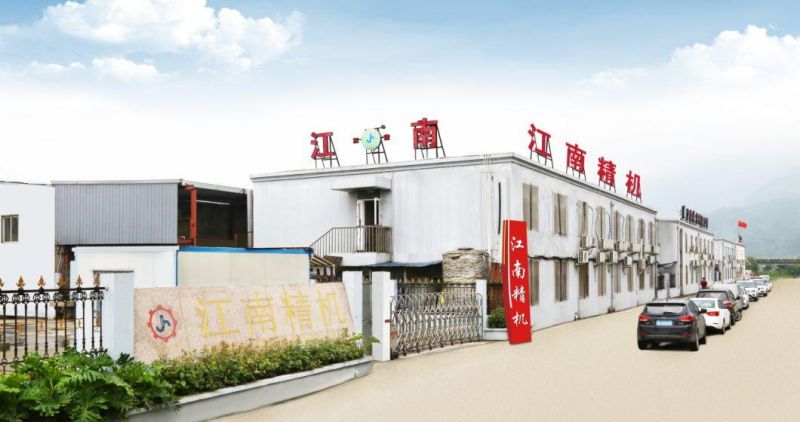

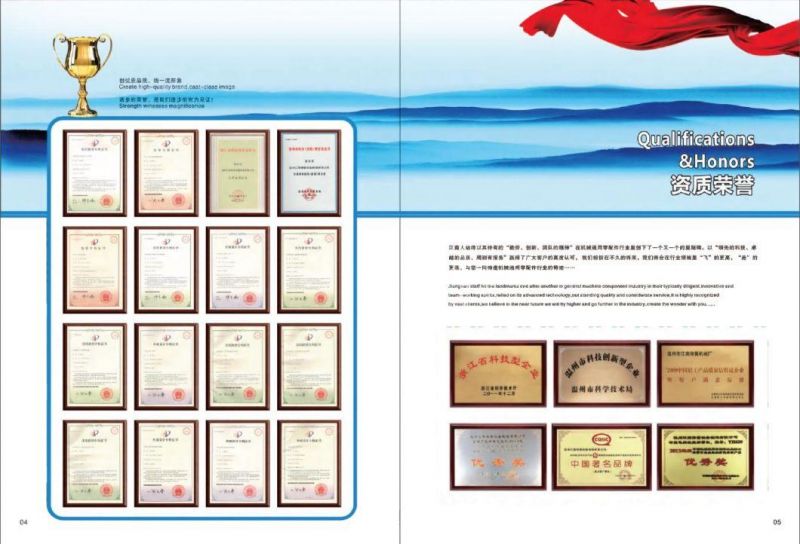

Wenzhou Jiangnan Precision Machinery Co., Ltd. formerly called as Wenzhou Jiangnan Spring Machinery PM, founded in 1991, Zhejiang Sci-tech enterprise, the member of director units of China General Machine Components Industry Association, Integrates R&D. production and sales, specializes in the development and production of Jiangnan branded Model No,CNC-82S, CNC-835, CNC-860 computerized universal spring forming machine. Model No. CNC-YH616, CNC-YH640, 660, 680, 6120, 6160, 6200 series pressure-spring machine or the like; Model No. YK3610CNC gear hobber, Model No.YK3610-A CNC gear hobber: Model No. Yk3620 CNC gear hobber, YK3640 CNC gear hobber,Automatic CNC Spring Grinder, obtained national invention patents and ulilify model patents.
The company has advanced processing facilities involving several large CNC gantry machining centers, one CNC planogrinderand CNC internal/external grinders.

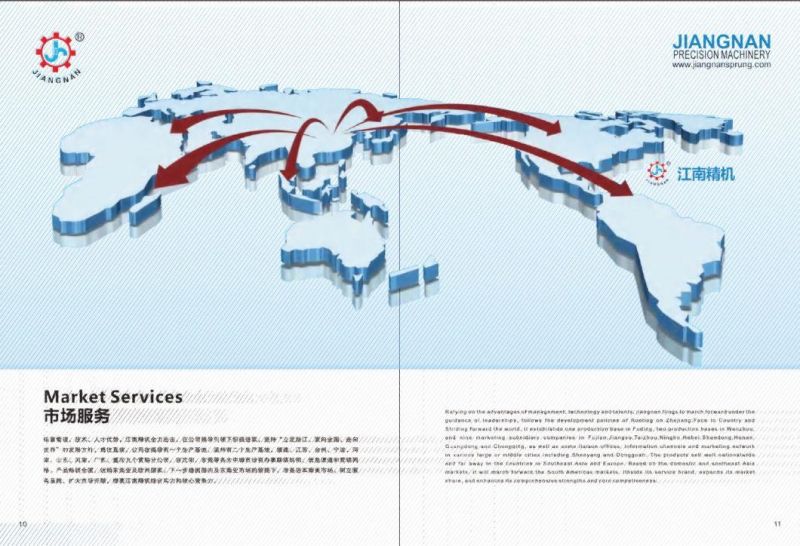

It established one production base in Fueling, two production bases In Wenzhou, and ninemarketlng subsidiary companies in Fujian, Jiangsu. Taizhou, Ningbo, Hebei, Shandong, Henan,Guangdong,and Chongqing as well as some liaison offices,information channels and marketing network in various large or middle cities including Shenyang and Dongguan.The products sell well nationalwide and far away to the countries in Southeast Asia and Europe.Rooted on the domestic and southeast Asia markets, it will march farward the South Americas markets.
In order to suit the economic and development needs of the market, create a first-class enterprise and fulfill social responsibilities^ the company has put into use the Jiangnan sub-factory in Fuding and fully initiates second-stage development, strives to enable the company to be leaped steadily, rapidly and healthfully Into a share-holding group.
