• Model NO.：SH-1250*2500
• Trademark：shenghua
• Origin：China
• HS Code：84639000
• Production Capacity：3set,Month

Basic Info.

Model NO. SH-1250*2500 Trademark shenghua Origin China HS Code 84639000 Production Capacity 3set/Month

Product Description

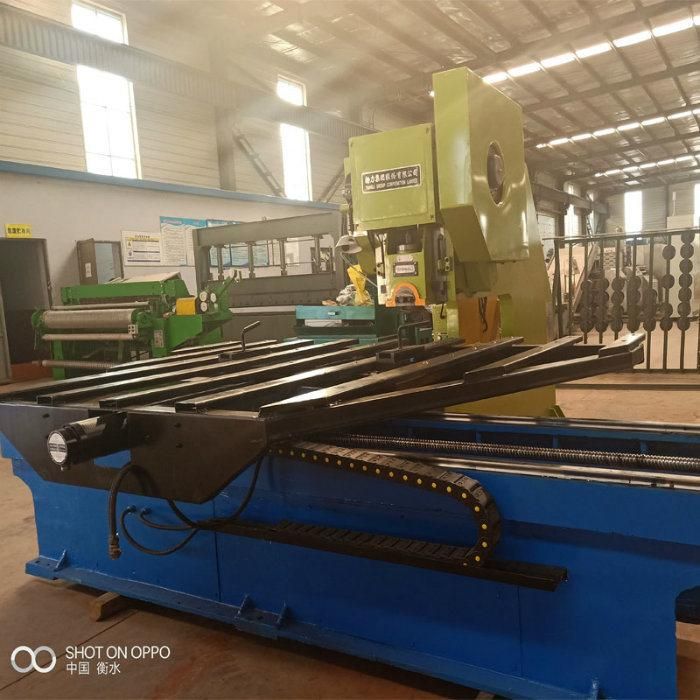

Perforated metal sheet machine




The metallic material of pounding: iron plate, stainless steel plate, aluminum plastic composite panel,cuprum plate,aluminum plate, galvanized plate etc.

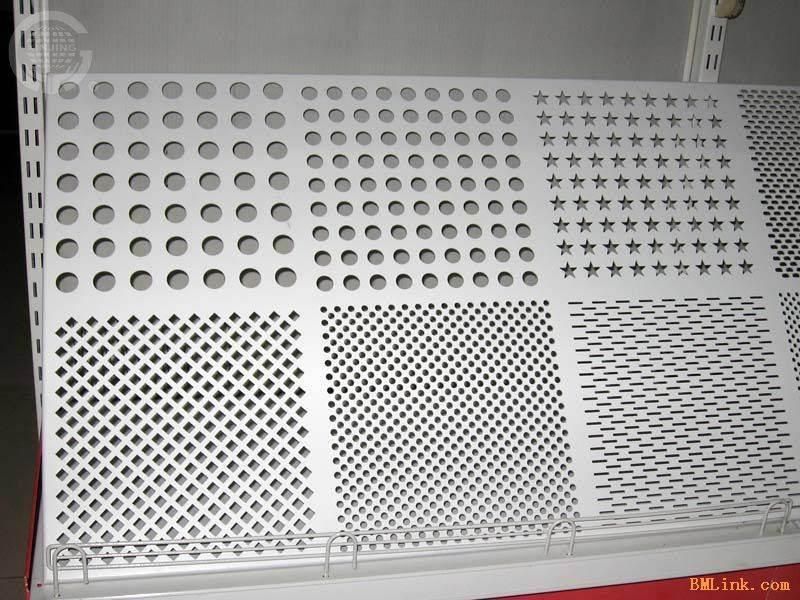

The shape of the hole: round hole, long round hole,square hole, trigonometrical hole,bulgy hole(scale hole), diamond hole, hexagonal hole, crossed hole etc..
Increased throat deep and working area.
I. Technical parameter

1. Pounding plate: 1.25*2.50m
2. Pounding thickness: 0.1-6mm
3. Mesh size: according the mold, ( mold price: USD1000)
4. Times of pounding:60-90/min
5. Pressure: 250KN
6. Power: 7.5KW
7. Space requirement: 6*3m  Weight: 8T
8. Parts including: pressure machine, feeding system, control system
9. Operation: computer control, software: Chinese--English

II. Other instruction about the machine and service

1. The warranty time: one year ( accessory parts)
2. Material of mould: tungsten steel or Cr12
3. Worker needed: one worker can operated two or three sets machine
4. All the accessory parts is GB national standard
5. The mould is manufacture according the customer's requested.

III. Detail for the pressure machine:

Model		SHP-25
capacity	KN	250
Nominal force	mm	2.5
Slide stock	mm	80
Stock times	/min	60
Max. Die height	mm	180
Die height adjustment	mm	70
Motor power	KW	2.2
Outside size	mm	1790×990×2288



Terms:
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training: offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 35days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery.
Packing: waterproof material,control box: wooden case
