• Model NO.：ISF-323
• Shipping：China Port
• Driven Typpe：Electric Motor
• Model：Isf-323
• Range Od：6-12 Inchs
• Drive：Pneumatic
• Transport Package：Wooden Case
• Trademark：Aotai
• Origin：Wenzhou, China
• HS Code：84619090
• Production Capacity：5, 000 Pcs,Year

Basic Info.

Model NO. ISF-323 Shipping China Port Driven Typpe Electric Motor Model Isf-323 Range Od 6-12 Inchs Drive Pneumatic Transport Package Wooden Case Trademark Aotai Origin Wenzhou, China HS Code 84619090 Production Capacity 5, 000 Pcs/Year

Product Description

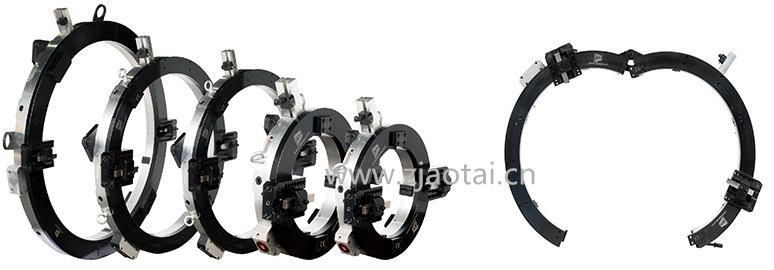

ALUMINUM LIGHTWEIGHT SPLIT FRAME CUTTING &BEVELING MACHINES


Pipe Cutting & Beveling Machines

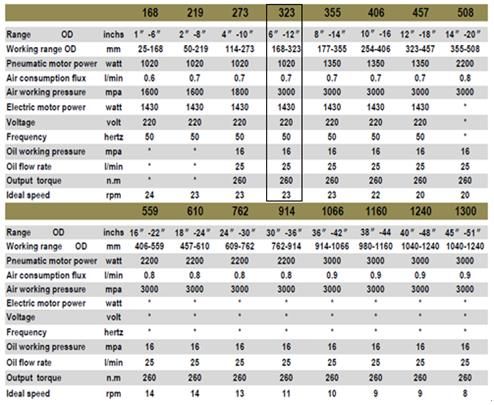

RANGE: φ12-1220 mm (1/2″-48″),O.D
FUNCTIONS : PIPE COLD CUTTING                                            MATERIALS: ANY KIND OF STEEL
           BEVELING FACING                                                                         OR EXOTIC ALLOY
           COUNTERBORING                                                 POWER: ELECTRIC,PENUMATIC
                          FLANGE FACING                                                                      OR HYDRAULIC

FEATURE:
Pneumatic version pipe cutting & beveling machine, compact structure, easy to install because of the lightweight and low clearance.
Cutting and beveling the pipe at the same time or only cutting.
Motor mounted flange are available in straight back(in-line),right angle and front drive reversible options
Eletric Pipe Cutting and Beveling Machine pipe bevel or pipe/tube lathe, adopts high speed tool steel at a high speed to cut, will not produce spark, completely cold cut, and does not influence the tube material; Fit and insert at once, also cut at the same time, slope mouth; The automatic feed of slippery platform of knife rest, easy to use; Light weight with high precision and easy to operate.
Pipe groover Widely used in chemical, boiler, nuclear power, Oil & Gas, fabrication / processing plants, shipbuilding and so on.

DESCRIPTION:
This machine, pipe cutting and bevelling machine adopts the planet gear decelerator to moderate, the awl gear wheel transmission of arc tooth rotates the round ring tooth to enclose, the main frame Can separated it for two; Cut and bevel machine is suitable for the tube to cut off; Knife rest slippery platform the knife moves automatically, can finish cutting, slope mouth meanwhile; The grade of precision reaches Q/WAT01-2002 standard and requires, it is simple to operate, it is safe and reliable.



FAQ

1) Question: How to choose a suitable model?
RE: Before choose the model,we need to know more details about the pipe,such as the I.D,O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately decision .Thanks!
2) Question: Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,hydraulic and NC.
3) Question:  About the type of the beveling?
RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you. Company Information AOTAI,LEADING MANUFATURER FROM CHINA,SINCE 1995,FOCUS OUR ATTENTION ON MANUFACTURING AND PRODUCING ALL KINDS OF PIPE BEVELING MACHINE,PIPE CUTTING AND BEVELING MACHINE,ORBITAL PIPE CUTTING MACHINE,FLANGE FACING MACHINE. BEST SOLUTION FOR YOUR PIPE BEVEL AND CUT.
