6.0mm Versatile CNC Automatic Cam-Less Spring Forming Rotating Machine

Dongguan Hua Yi Da Spring Machinery Co., Ltd.
  • After-sales Service：One Year Guarantee
  • Automatic Grade：Automatic
  • Warranty：1 Year
  • Certification：GS, RoHS, ISO, CE
  • Model：Hyd-60t-12A
  • Axis Count：12 Axes

Base Info

  • Model NO.：HYD-60T-12A
  • Wire Diameter：2.0-6.0mm
  • Wire Feeding Count：4 Pairs
  • Max Feeding Speed：80m,Min
  • Reducer：11 PCS
  • Machine Size：2600*1400*2050mm
  • Machine Weight：4500kg
  • Transport Package：Standard Wooden Box
  • Specification：2600*1400*2050mm
  • Trademark：HYD
  • Origin：Dongguan, Guangdong, China
  • HS Code：84633000
  • Production Capacity：300 PCS,Years

Description



Wire Size Range
     low carbon steel:3-8mm   high-carbon steel:2-6mm
Lead rail
                       distance of 130mm
Wire feeding count
                 4 pairs
Max Feeding speed
                 80m/min
Maximum error
               ±0.1(length)
Control system+decoiler
       1 set
Servo motor power
              49.7KW
Reducer
                            11pcs
Minimum length of angel
                4 times wire diameter
Machine  size
 2600*1400*2050mm
Machine  weight
                  4500KG
Machine Features

1. With the link rocker design,independent control of single-axis servo motor,easy to operate,shaped spring can be placed by the angle of the tooling to save set-up time,increase production efficiency.

2. Using taiwan roller guides to ensure the abrasive resistance and precision.

3. The design of putting spinner on  core rotary,it can be wire rotary function,it will be easier to form some more diffcult product.

4. Taiwan control system, comparing with cam spring machine,cam-less type will be more efficient to produce battery connector etc.

5.The separation of rotary motor and wire feed box reduces the load of feed box and increases the angle of the rotary,which is to ensure the accuracy of the wire feed and rotary.

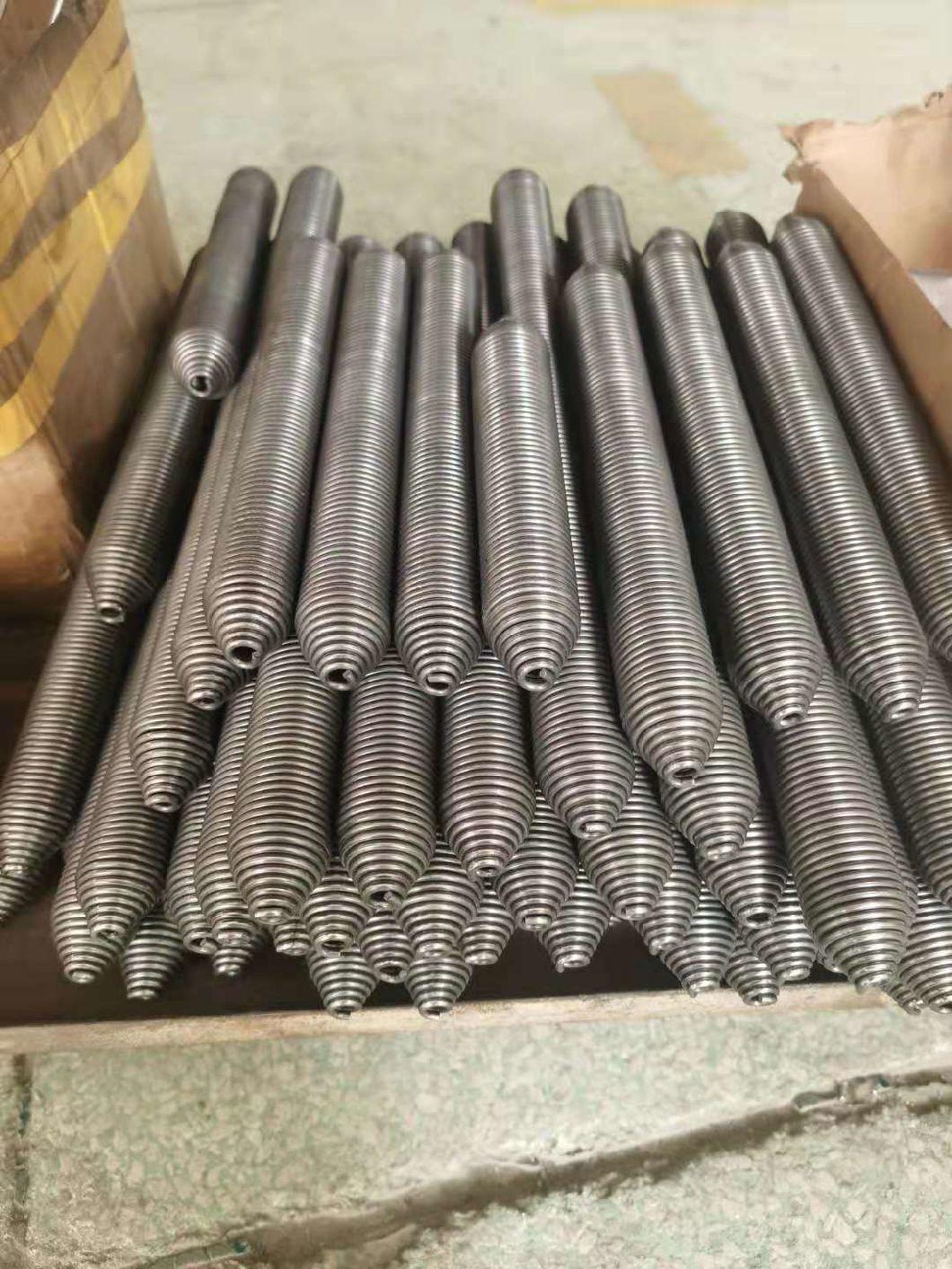

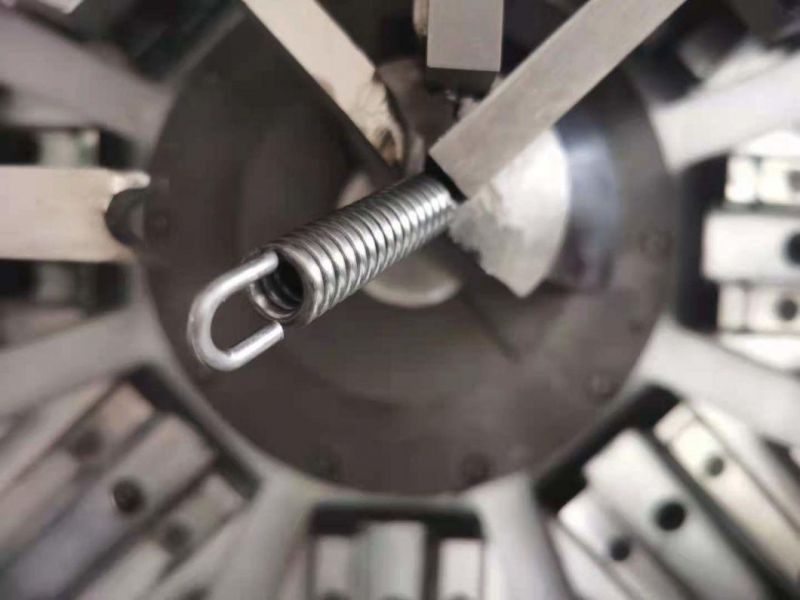

Product Sample


6.0mm Versatile CNC Automatic Cam-Less Spring Forming Rotating Machine6.0mm Versatile CNC Automatic Cam-Less Spring Forming Rotating Machine



6.0mm Versatile CNC Automatic Cam-Less Spring Forming Rotating Machine

Machine Shipment
6.0mm Versatile CNC Automatic Cam-Less Spring Forming Rotating Machine
6.0mm Versatile CNC Automatic Cam-Less Spring Forming Rotating Machine
6.0mm Versatile CNC Automatic Cam-Less Spring Forming Rotating Machine
FAQ
1. Q: What information will be helping to get an accurate quotation from us?
  A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc

2. Q: What is the power supply of the machine?
  A:  The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

3. Q: What is the payment term
  A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.

4. Q: What is the delivery time?
  A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of them could be shipped within 10 days.

5. Q: What is the guarantee period of the machine?
  A: The guarantee period is one year from the date of B/L.
