• Model NO.：ZML-8X1800
• Warranty：12 Months
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Material Thickness：3-8 mm
• Width：1800mm
• Finished Length：9000mm
• Width Accuracy：1mm
• Stacker Height：400mm
• Line Speed：30m,Min
• Coil Weight：30 Tons
• Colour：Customized
• Material：Aluminum Alloy, Stainless Steel
• Length Accuracy：1mm
• Power：AC 380V, 50Hz
• Protection Grade：IP40
• Transport Package：Seaworthy Packing
• Specification：60 m (L) X 12 m (W)
• Trademark：ZeYe
• Origin：China
• HS Code：8460902000
• Production Capacity：60

Basic Info.

Model NO. ZML-8X1800 Warranty 12 Months Customized Customized Advantage Work Flexible Condition New Material Thickness 3-8 mm Width 1800mm Finished Length 9000mm Width Accuracy 1mm Stacker Height 400mm Line Speed 30m/Min Coil Weight 30 Tons Colour Customized Material Aluminum Alloy, Stainless Steel Length Accuracy 1mm Power AC 380V, 50Hz Protection Grade IP40 Transport Package Seaworthy Packing Specification 60 m (L) X 12 m (W) Trademark ZeYe Origin China HS Code 8460902000 Production Capacity 60

Product Description

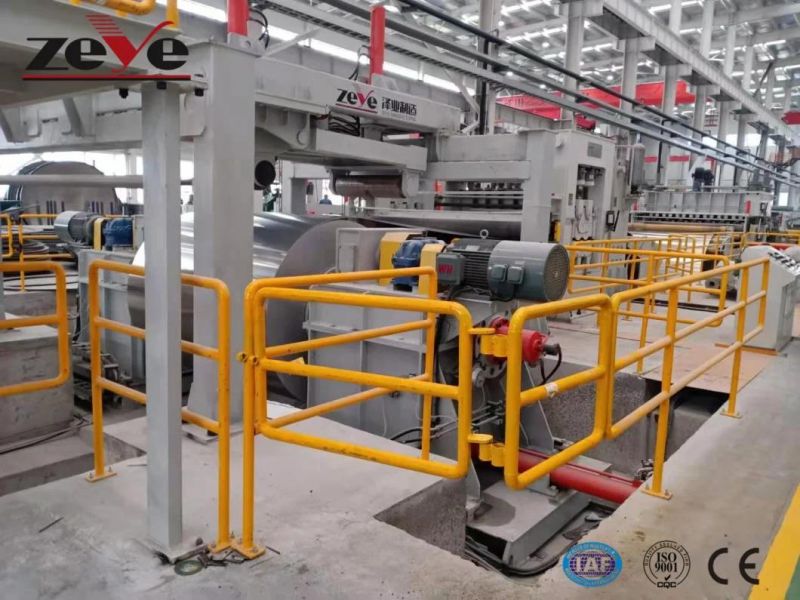

Moving Cut to Length Line ZML series
Moving cut to length line is mainly used for metail coil shear from decoiling,leveling,moving shear to stacker.
Application material: Aluminum alloy, cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.

Main Units
1.Coil Saddle,
2.Entry coil car,
3.Uncoiler,
4.Feeding device,
5.Leveler,
6. Hydraulic head shear,
7.Looper,
8.Side guide
9.Accurcacy leveler,
10.Film applicator,
11.Moving shear machine,
12.Conveyor,
13. Stacker

Main Technical Parameters

Model	ZML-6	ZML-8	ZML-12	ZML-16	ZML-20/25
Material thickness	1.5-6.0mm	2-8 mm	3-12 mm	4-16 mm	6-20/25 mm
Material width	800-2000 mm	800-2000 mm	800-2000 mm	800-2200 mm	800-2500 mm
Finished length	1000-6000 mm	1000-8000 mm	100-12000 mm	2000-14000 mm	2000-14000 mm
Length accuracy	±1.0 mm	±1.0 mm	±1.0 mm	±1.0 mm	±1.0 mm
Diagonal accuracy	±1.0 mm	±1.0 mm	±1.5 mm	±1.5 mm	±1.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1.5 mm/m2	<1.5 mm/m2	<1.5 mm/m2
Line speed	40 m/min	40 m/min	40 m/min	40 m/min	30 m/min
Coil weight	20,30 t	20,30 t	20,35 t	20,35 t	20,35 t


Our advantages

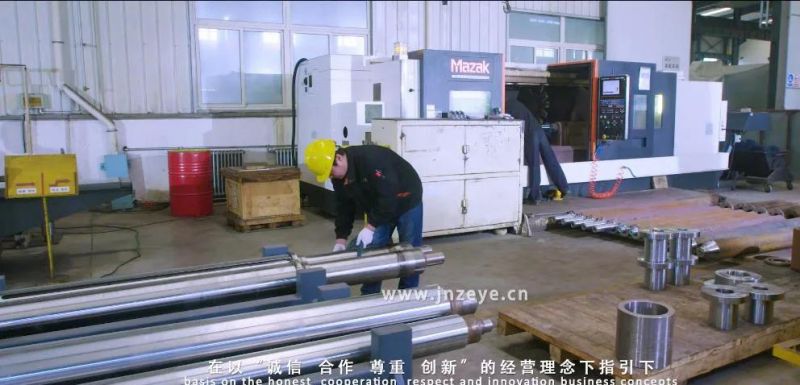

1.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.

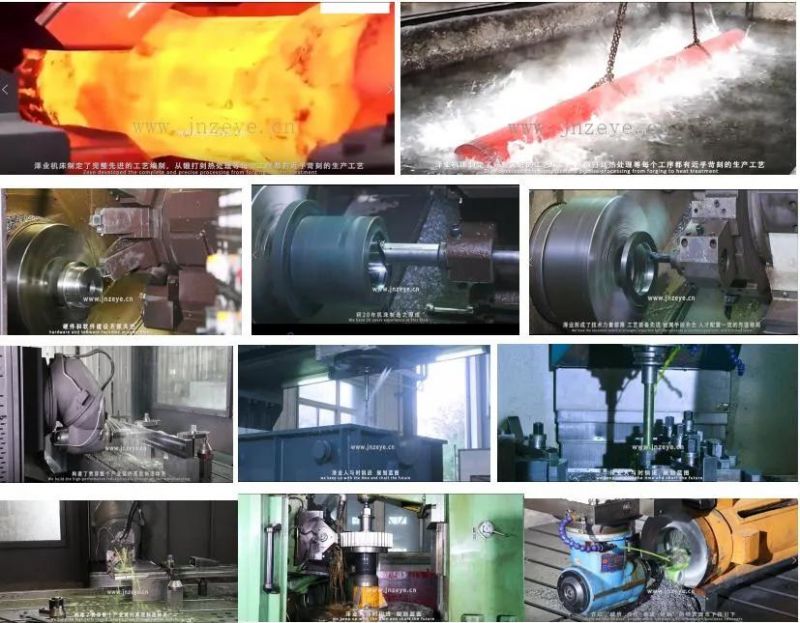

2. Every part has been finished it's own complete technology process, such as forge, rough machined,  heat treatment, cooling, burring, tempering,  finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.
3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified.

Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.

Company introduction

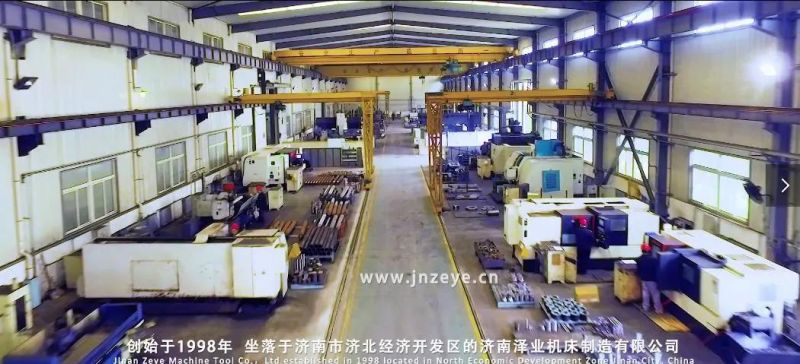

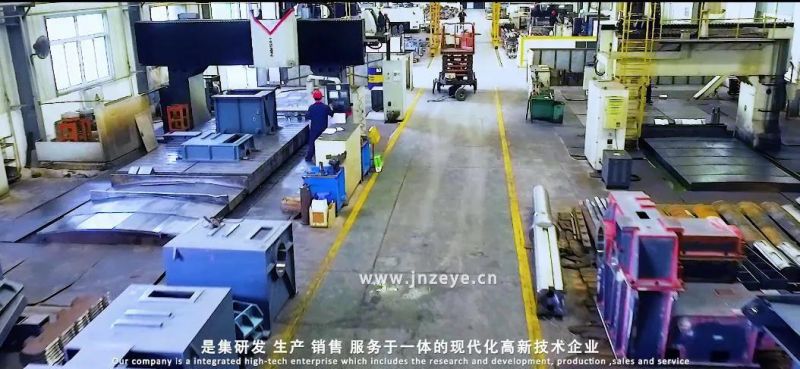

Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian is for import and export business,  ZeYe is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Slitting Recoiling or Cut to Length Line Compound Line,Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.

We have one professional technical team and after sale service team, we are ready to serve you at any time.


Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team,  we could design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, process precision etc.

Q: What's the shipping cost from China to our country ?
A: We can ship equipment to your port by sea, shipping cost depends on shipping agend and season.

Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months when the equipment run normally .
