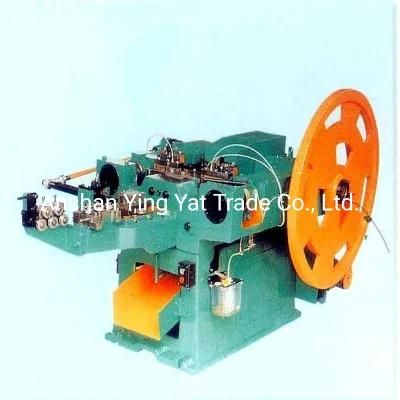

• Model NO.：Z94-1C Z94-2C Z94-3C Z94-4C Z94-5C
• Customized：Non-Customized
• Advantage：Work Flexible
• Condition：New
• Transport Package：Wooden Case
• Specification：1700× 1150× 1750mm
• Origin：Hebei
• HS Code：8463300000
• Production Capacity：2000 Sets,Month

Basic Info.

Model NO. Z94-1C Z94-2C Z94-3C Z94-4C Z94-5C Customized Non-Customized Advantage Work Flexible Condition New Transport Package Wooden Case Specification 1700× 1150× 1750mm Origin Hebei HS Code 8463300000 Production Capacity 2000 Sets/Month

Product Description

Technical Items	Unit	Z94----1C
Diameter of nail Max	Mm	1.6
Diameter of nail Min	Mm	0.9
Length of nail Max	Mm	25
Length of nail Min	Mm	9
Designed output	Pc / Min	450
Motor power	Kw	1.5
Weight	kg	800
Overall size	Mm	1440×1040×1270



Technical Items	Unit	Z94----2 C
Diameter of nail Max	Mm	2.8
Diameter of nail Min	Mm	1.2
Length of nail Max	Mm	50
Length of nail Min	Mm	16
Designed output	Pc / min	350
Motor power	Kw	3
Weight	kg	780
Overall size	Mm	1700×1300×1400



Technical Items	Units	Z94---3 C
Diameter of nail Max	Mm	3.4
Diameter of nail Min	Mm	2.0
Length of nail Max	Mm	80
Length of nail Min	Mm	40
Designed output	Pc/ min	280
Motor power	Kw	3
Weight	kg	1200
Overall size	Mm	2000×1400×1400



Technical Items	Units	Z94----4C
Diameter of nail Max	Mm	5.0
Diameter of nail Min	Mm	3.4
Length of nail Max	Mm	110
Length of nail Min	Mm	70
Designed output	Pc / min	220
Motor power	Kw	4
Weight	kg	2000
Overall size	Mm	2400×1600×1650



Technical Items	Units	Z94----5C
Diameter of nail Max	Mm	5.0
Diameter of nail Min	Mm	3.4
Length of nail Max	Mm	180
Length of nail Min	Mm	70
Designed output	Pc / min	200
Motor power	Kw	5.5
Weight	kg	2200
Overall size	Mm	2600×1600×1650



Model	Nail Pointing Machine(steel wire rod should under 7 mm)
Function	The thin wire rod pressure
