• Model NO.：170
• Certification：CE, ISO9001
• Type：Casting Machine
• Transport Package：Plastic Package
• Specification：5.5*1.6*2.05
• Trademark：Longhua
• Origin：Anhui, China(Mainland)
• Production Capacity：5000,Year

Basic Info.

Model NO. 170 Certification CE, ISO9001 Type Casting Machine Transport Package Plastic Package Specification 5.5*1.6*2.05 Trademark Longhua Origin Anhui, China(Mainland) Production Capacity 5000/Year

Product Description

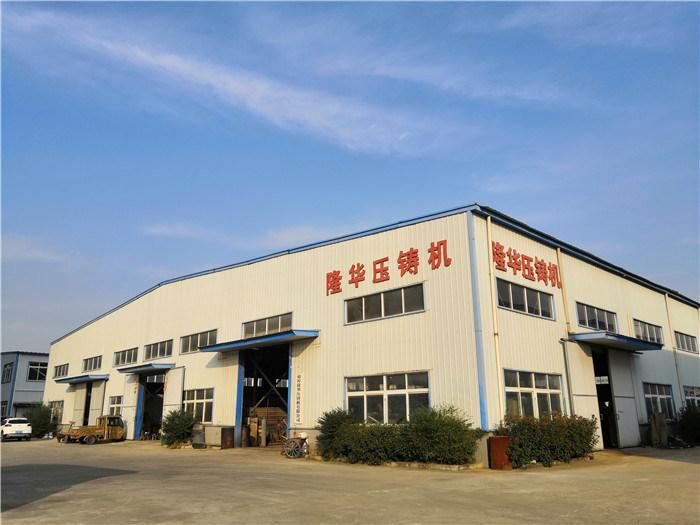

Longhua Die-Casting Machine Company,founded in Bengbu,Anhui Province of China in 1982, is a professional high-tech enterprise engaged in the design,manufacture and sales of cold chamber die casting machine and die-casting peripheral equipment.

This die casting  machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and supplies.computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection  rate over 4M/s, and minimum boosting time less than 30ms.

The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.

Specification of 170 ton Cold Chamber Die Casting  Machine Aluminium:

Specification	Unit	LH-170T
Hydraulic working pressure	Mpa	7
Clamping force	KN	1700
Space between tie bars	mm	460*460
Tie bar diameter	mm	80
Die Opening stroke	mm	350
Injection force(Intensify)	Mpa	220
Plunger Launch distance	mm	120
Injection Position	mm	0-140
Plunger diameter	mm	40-60
Injection stroke	mm	320
Casting pressure (intensify)	Mpa	143/92/64
Casting fiange protrusion	mm	10
Casting fiange diameter	mm	110
Max casting area under 40Mpa	cm2	400
Injection weight (Al)	KG	1.8
Die height (Min-Max)	mm	200-550
ejector force	KN	100
ejector stroke	mm	80
Motor capacity	KW	11
Machine dimensions (L*W*H)	M	5.5*1.6*2.05
Oil tank capacity	L	400
Referential machine weight foruplifting	T	5.8

P.s.:

We reserve the right to make any technical improvement without further notice

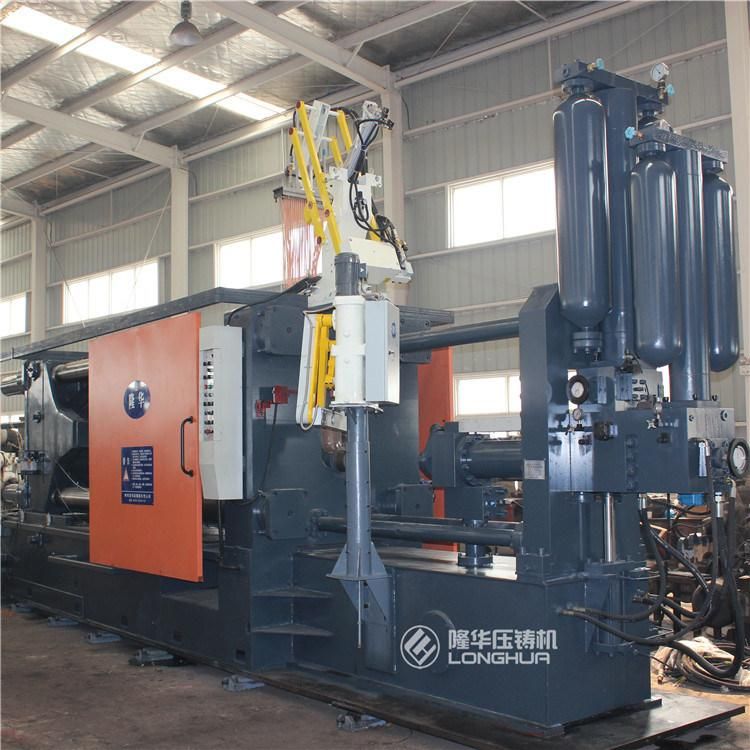

LH-170T cold chamber die casting machine


1. Easy to handle

- Completely automatic process cycle and analysis function

- Permanent process monitoring via sensors

- Extensive security installations



2.Excellent performance

- High efficiency and reduced scrap

- High quality casting of complex and large parts

- Extremely stable value of the machine

- Multi-shift operation possible


 3.Flexible

 - Small or large casting clusters

- Non-ferrous metals including zinc, aluminium, bronze and brass alloys

- Moulding chamber easily adaptable for shell-, sand- and block moulds.
