• Model NO.：According to Customers′ Drawings
• Material：Alloy
• Application：Metal Recycling Machine, Metal Cutting Machine, Metal Processing Machinery Parts, Optic Device
• Surface Process：Multi-Option
• OEM：Available
• Designing：Available
• Transport Package：Carton
• Specification：80X60X130mm
• Trademark：ZHD
• Origin：Wuhan, China
• HS Code：8401200000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. According to Customers′ Drawings Material Alloy Application Metal Recycling Machine, Metal Cutting Machine, Metal Processing Machinery Parts, Optic Device Surface Process Multi-Option OEM Available Designing Available Transport Package Carton Specification 80X60X130mm Trademark ZHD Origin Wuhan, China HS Code 8401200000 Production Capacity 5000PCS/Year

Product Description

Note: This product is just a sample part we once machined according to a customer's drawing, and the price shown on this page is not the real price.

Our procedure for customizing parts for you is as follows:


1. Customer provides 2D or 3D drawings;
2. We quote the prices according to your drawings(we can also design the parts according to your specific requirements);
3. Orders are confirmed by both parties;
4. We start to put your parts into machining;
5. We package and deliver the parts the customer;

Description of This Part

Material
6061-T6 + H62 brass

Workpiece
   This workpiece is an optical lens barrel and focusing transmission gear. Optical components need to be assembled in the middle, and the precision is very high.

Machining Characteristics
Lens barrel
   1.Lathe rough turning, and stock is left out.
   2.Aging treatment to fully remove the cutting stress in the workpiece
   3.Lathe finish machining, dimensions machined to the requirement, cylindricity of installation positions of internal optical components is within 0.007mm, and concentricity within 0.01mm.
 4. Finish milling of inside and outside the workpiece is done by 4+1 axis machining center, and the position accuracy and perpendicularity shall be within 0.02mm.
Gear
   1.Finishing with lathe.
   2.Slow wire cutting on gear tooth profile with precision less than 0.01mm

Surface Treatment
   Black anodizing + brass passivation treatment, meeting the requirements of environmental protection

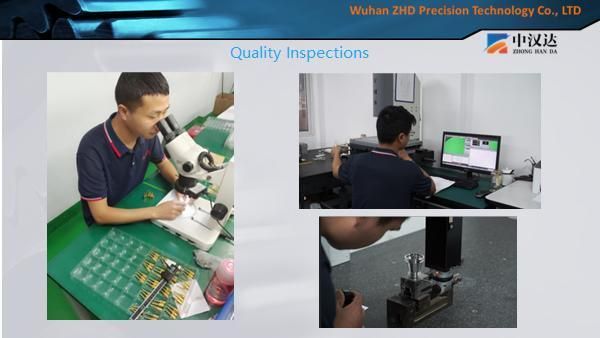

Inspection

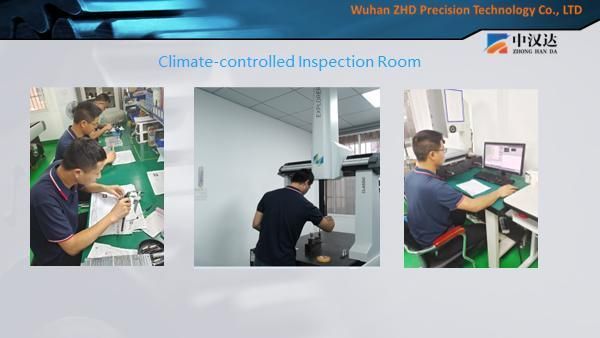

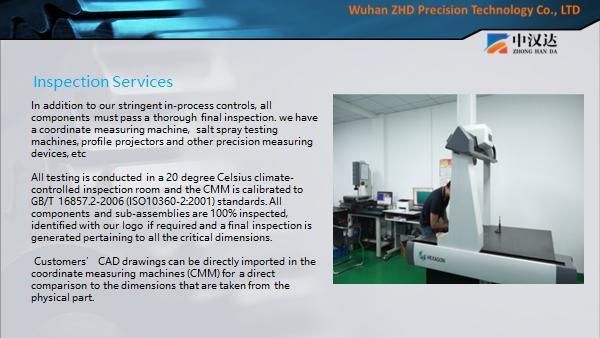

The places where accuracy is required meet the requirements of drawing, and the flatness and perpendicularity are within 0.02mm, and cylindricity 0.007mm , and concentricity 0.01mm. It is tested with CMM, and reports of finished products from CMM are generated.
After assembly, the focusing is ensured to be smooth and accurate.
