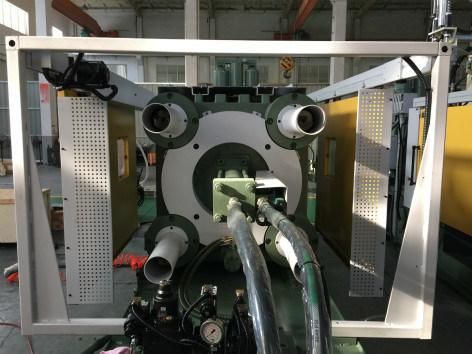

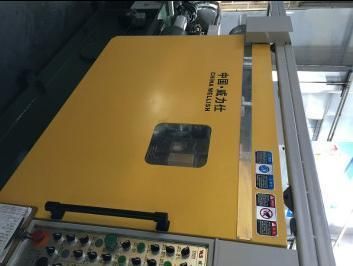

China Factory Cold Chamber Die Casting Machine C/680d

Ningbo Beilun Allway Machinery Co., Ltd.
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：C,680D
  • Automatic Grade：Automatic
  • Certification：CE, RoHS, GS, ISO9001
  • Type：Special Casting
  • Transport Package：Standard Packing
  • Specification：CE, SGS, ISO9001: 2008, CQC
  • Trademark：ALLWAY
  • Origin：Ningbo China
  • HS Code：8454301000
  • Production Capacity：500PCS,Year
  • Package size per unit product：8400.00cm * 2100.00cm * 3000.00cm
  • Gross weight per unit product：31000.000kg

Description

China Factory Cold Chamber Die Casting Machine C/680dChina Factory Cold Chamber Die Casting Machine C/680d China Factory Cold Chamber Die Casting Machine C/680dChina Factory Cold Chamber Die Casting Machine C/680dChina Factory Cold Chamber Die Casting Machine C/680d
Specification C/680D
Clamping ForceKN6800
Clamping Strokemm680
Die-Thickness (Min-Max)mm350-900
Platen Size(H *V)mm1290* 1290
Space between Tie-barsmm860*860
Diameter of Barsmm160
Casting ForceKN240-680
Casing Strokemm640
Injection Plunger diametermm70
80
90
Max. Casting Volume (AL)kg4.3
5.7
7.2
Max. Casting Volume(MG)kg4.3
5.7
7.2
Casting Pressure (Min-Max)Mpa73.5-158.5
56-121
44.5-95.9
Cast Projection AreaCm2397-1600
Injection Positionmm0, -250
Ejector Spacemm280
Extruding Flange Diametermm165
Height of Extruding Flange Patternmm15
Ejecting ForceKN315
Ejecting Strokemm150
Dry Cycle Times12
System Working PressureMpa16
Motor PowerKW37
Tank CapacityL1000
Machine Weightkg31000
Overall Dimensions of
Machine (L*W* H)		mm8400*2100*3000

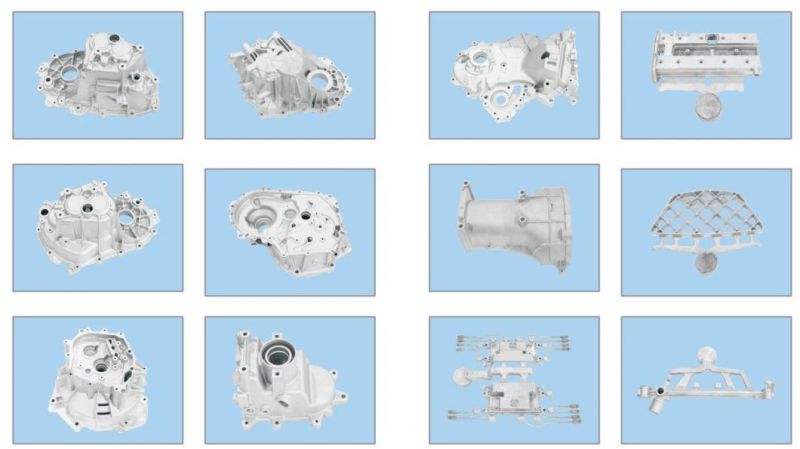

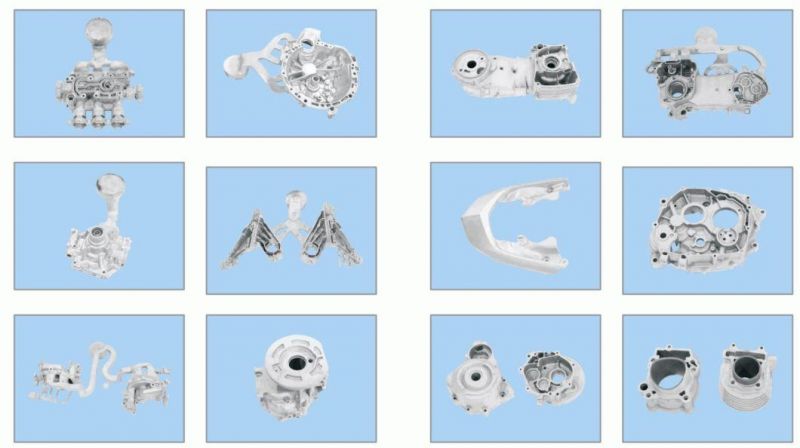

WELLISH precision die casting machine are widely used for lead , zinc,copper , aluminum , magnesium etc non-ferrous die casting in the industries of aviation & aerospace , ship & vehicles , electric and electronic appliances , instruments and meters , medical facilities , hardware's etc.
China Factory Cold Chamber Die Casting Machine C/680d
China Factory Cold Chamber Die Casting Machine C/680dChina Factory Cold Chamber Die Casting Machine C/680dChina Factory Cold Chamber Die Casting Machine C/680dChina Factory Cold Chamber Die Casting Machine C/680dChina Factory Cold Chamber Die Casting Machine C/680dChina Factory Cold Chamber Die Casting Machine C/680d
