• Model NO.：WXC130CA
• Transport Package：Seaworthy Package
• Specification：weight: 11.5T
• Trademark：RW
• Origin：Shandong, China
• HS Code：84581900
• Production Capacity：1000PCS,Year

ModelWXC130CAWorkpiece RequiredCutting range(mm)Φ35~ Φ135X3000~unlimitedTensile strength σb(Mpa)≤1100Surface hardness≤HB320Bend(mm/m)≤1.50Diameter toleranceAs per GB 702-88 group twoRoundness≤diameter tolerance 50%Surface roughness(Ra)≤25~50mmFinished ProductsDiameter range(mm)Φ30~Φ130Radius cutting depth(mm)0. 5~2.5Diameter tolerance≤IT9(standard diameter tolerance)Surface roughness (Ra)≤3.2μmRoundness (mm)≤0.03Feeding speed (infinitely adjust speed m/min)1.0~5.0(Slow down for materials with ceaseless chips, high strength and high hardness.)Cutter head rotating speed (infinitely variable speed) (r/min)160~900 (2 level speed gearbox)Main motor power (kW)90(4 electrodes)   Feeding motor power (kW)5.5 (4 electrodes)Clamping vehicle motor (kW)4 (servo)Dimensions (m) (reference)Host machine 4X3.7X2.4Weight (t) (reference)Host machine 11.5Total capacity (kW)120Source of compressed air (prepared by user)0.4~0.8MPa, 2m³/min, with second grade  oil and water separator

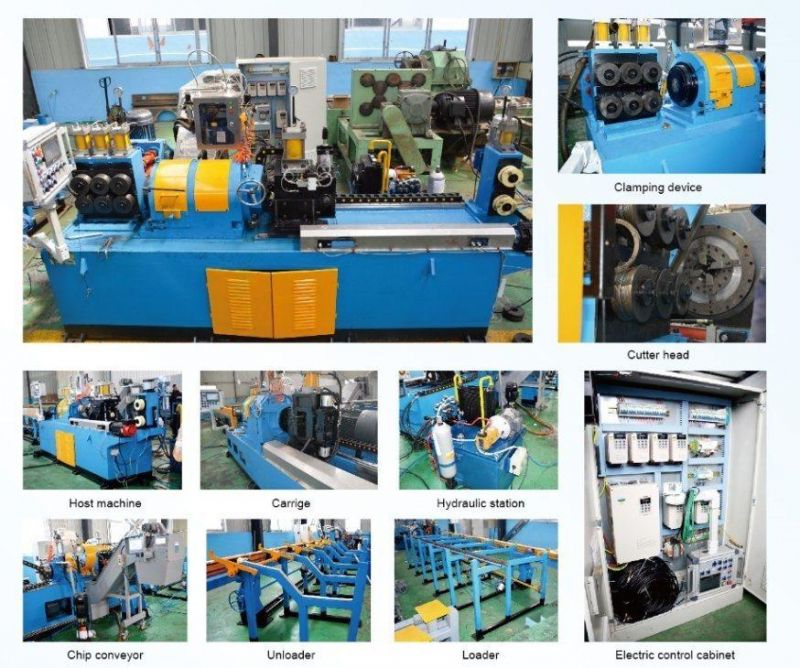

Composition Introduction


The equipment is composed of two general members: "host machine and transportation devices".

1. Host machine: host machine consists of lathe bed, spindle, oil-air lubrication system , front clamping and rear extracting systems, front guide and middle-rear guide etc.

2. Transportation devices: Transportation devices comprises loader and unloader.

3. Oil-air lubrication system: Oil-air lubrication system is specially designed for retaining effective lubricating and cooling in the process of spindle's high speed rotation. It is comprised of pump, oil air distribution block and gas source processing component.

4. Cutting liquid cooling recycling system: Cutting liquid cooling recycling system is composed of cooling water recycling pump, pipelines, nozzles etc. High pressure water pump transports cooled cutting liquid in water tank to nozzle near the cutter head through pipe. It directly sprays onto cutting blade point and chips, whereby the majority of cutting heat is taken away, and drops to discharging hole underneath the cutter head together with chips, and flows back to water tank through pipe to cool down.

5.Chip-conveyor: Chip-conveyor is an outsourced fine quality product. Chips travel through downfall hole at the bottom of cuter head and drop onto the chain plates of the conveyor and are brought out by transmission ,waiting to be collected.

6. Hydraulic pressure system: Hydraulic pressure system consists of pump electric motor, control valve, hydraulic pressure fuel tank, hydraulic pressure pipes and others. It enables to clamp and extract bars through oil cylinder within front (rear) clamping elements.

7. Electric machinery system: Electric system includes power supply and controlling system. It is composed of 1 power distributing cabinet and 1 operating button station. It fulfils the function of electric control for main transmission system, front and rear clamping feeding system, cooling system, hydraulic pressure system, chip-conveyor and transportation devices.



MODELS FOR YOUR SELECTION
.

Model	Input Dia	Length	Feeding Speed	Cutting Depth	Surface Roughness	Dia.Tolerance	Spindle Motor	Total Capacity
WXC20	ф5-ф20mm	≥1400mm	1-25m/min	0.5-2mm	Ra≤3.2	IT9	22KW	30KW
WXC40	ф5.5-ф40mm	≥1400mm	1-15m/min	0.5-2mm	Ra≤3.2	IT9	45KW	63KW
WXC60	ф13-ф75mm	≥2000mm	1-15m/min	0.5-2mm	Ra≤3.2	IT9	45KW	63KW
WXC80	ф16-ф85mm	≥2200mm	1-12m/min	0.5-3mm	Ra≤3.2	IT9	55KW/75KW	75KW/90KW
WXC100	ф25-ф110mm	≥2800mm	0.5-10m/min	1-4mm	Ra≤3.2	IT9	75KW	95KW
WXC130	ф35-ф135mm	≥3000mm	0.3-6m/min	1-5mm	Ra≤3.2	IT9	90KW	120KW
WXC160	ф45-ф170mm	≥3500mm	0.3-5m/min	1-5mm	Ra≤3.2	IT9	110KW	140KW
WXC200	ф70-ф210mm	≥4000mm	0.3-4m/min	1-5mm	Ra≤3.2	IT9	132KW	165KW
WXC250	ф95-ф260mm	≥4000mm	0.2-2.5m/min	1-5mm	Ra≤3.2	IT9	160KW	210KW
WXC350	ф150-ф360mm	≥4500mm	0.1-2m/min	1-10mm	Ra≤3.2	IT9	200KW	265KW
WXC400	ф205-ф410mm	≥4800mm	0.1-2m/min	1-10mm	Ra≤3.2	IT9	250KW	345KW
WXC500	ф315-ф510mm	≥5000mm	0.1-1.5m/min	1-10mm	Ra≤3.2	IT9	315KW	415KW
