Drywall Chipboard Self Tapping Screw Making Machine Thread Rolling Machine Cold Heading Machine
Xuchang Huarui Machinery Co., Ltd.- After-sales Service:Online Support
- Type:Forging Operation
- Forging Forming Method:Mold Forging
- Power Source:Electric
- Feature:Automation
- Certification:CE
Base Info
- Model NO.:ZM5-80B ZM6-60B ZM6-100B ZM6-120B ZM8-120B
- Warranty:24 Months
- Customized:Customized
- Advantage:Use Widely
- Condition:New
- Transport Package:Wooden Case or Container
- Specification:Screw Diameter: 3-14mm
- Trademark:Huarui
- Origin:China(Mainland)
- HS Code:8463200000
- Production Capacity:500sets Per Month
Description
Basic Info.
Model NO. ZM5-80B ZM6-60B ZM6-100B ZM6-120B ZM8-120B Warranty 24 Months Customized Customized Advantage Use Widely Condition New Transport Package Wooden Case or Container Specification Screw Diameter: 3-14mm Trademark Huarui Origin China(Mainland) HS Code 8463200000 Production Capacity 500sets Per MonthProduct Description

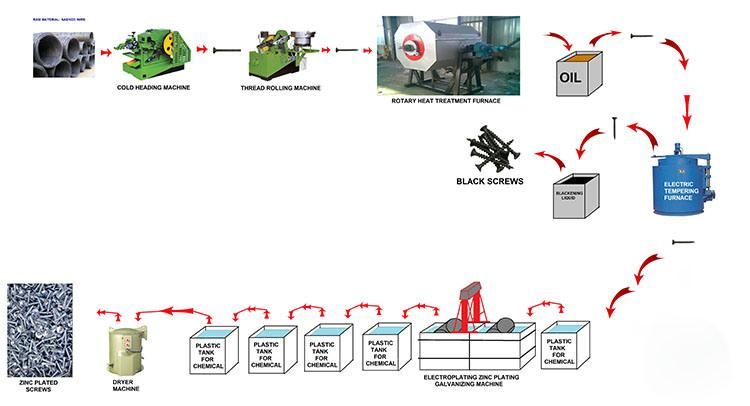

Drywall Chipboard Self tapping Screw Making Machine Thread Rolling MachineCold Heading MachineProcess of making screws:
wire rod-cold heading machine-thread rolling machine-screws
If want to make high quality screw, need below process (welcome to contact us for more details):
screw quenching furnace and screw tempering furnace: heat treatment to harden screws
electric galvanizing equipment: make screws zinc or copper plated

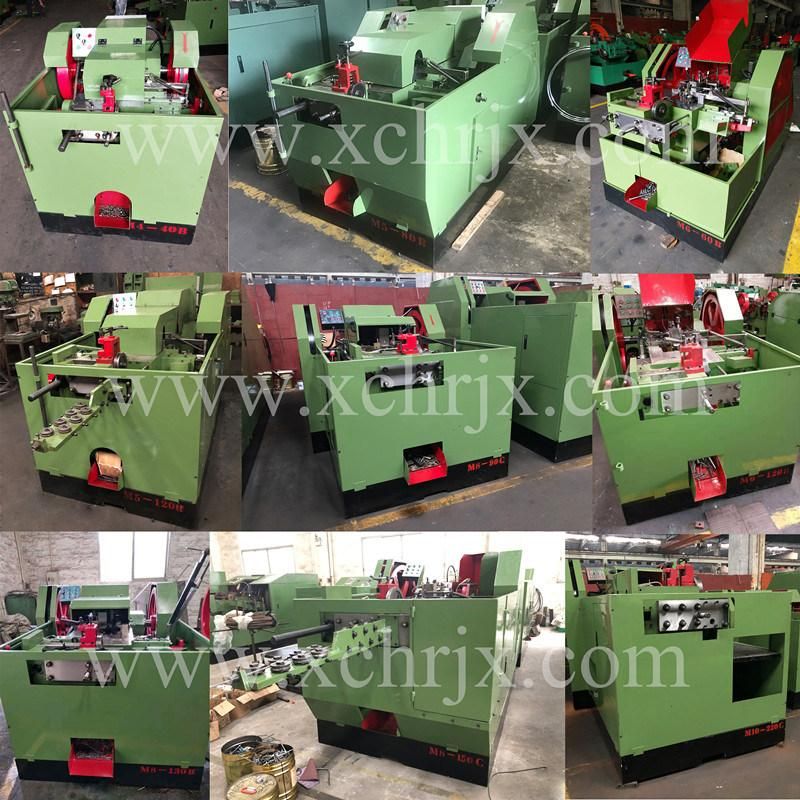

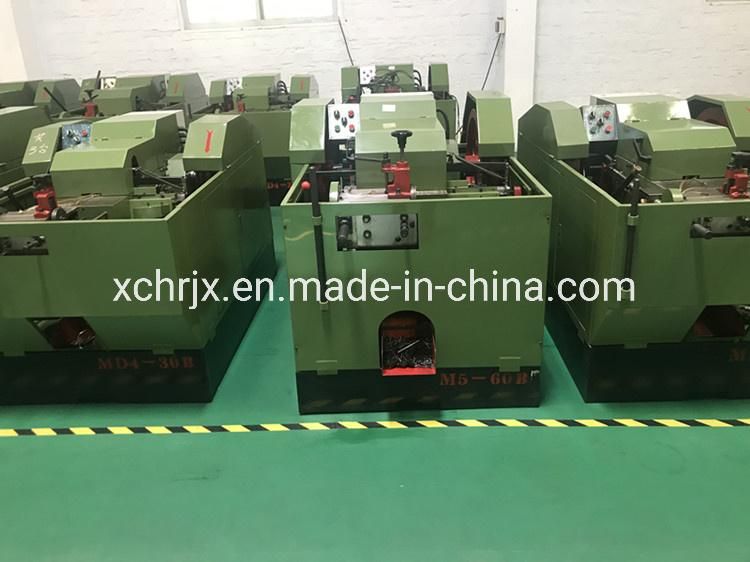

1. M series Automatic screw heading machine (cold heading machine)This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form.
Finished Feeding, straightening, cutting material, forming, discharging by one machine.Main technical parameters:
Model | Max. Screw Dia. (mm) | Max. Screw length (mm) | Capacity (pcs/min) | Motor (kw) | Weight(Ton) | Overall size (m) |
ZM3-18A/B | 3 | 18 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
ZM3-28A/B | 3 | 28 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
ZM4-28B | 4 | 28 | 120-160 | 1.5/0.37 | 0.97 | 1.5*0.9*0.9 |
ZM4-28D | 4.5 | 28 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1*1.2 |
ZM4-40B | 4 | 40 | 120-150 | 1.5/0.37 | 0.97 | 1.6*1*1.2 |
ZM4-40D | 4.5 | 40 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1.1*1.1 |
ZM5-40B | 6 | 40 | 120-150 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
ZM5-60B | 6 | 60 | 110-140 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
ZM5-80B | 6 | 80 | 80-100 | 2.2/0.37 | 1.9 | 2*1.1*1.2 |
ZM5-100B | 6 | 100 | 60-80 | 3/0.18 | 2.1 | 2.4*1.2*1.2 |
ZM5-120B | 6 | 120 | 50-70 | 3.6/0.37 | 2.3 | 2.8*1.3*1.3 |
ZM6-60B | 8 | 60 | 80-110 | 4/0.37 | 2.8 | 2.3*1.3*1.3 |
ZM6-100B | 8 | 100 | 60-90 | 4/0.37 | 2.7 | 2.3*1.3*1.3 |
ZM6-120B | 8 | 120 | 60-70 | 4/0.37 | 3 | 2.4*1.3*1.4 |
ZM6-170B | 8 | 170 | 40-70 | 4/0.37 | 3.7 | 3*1.3*1.5 |
ZM6-200B | 8 | 200 | 40-55 | 4/0.37 | 3.7 | 3*1.3*1.5 |
ZM8-120B | 10 | 120 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.5*1.5 |
ZM8-130B | 10 | 130 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.51.5 |
ZM8-130C | 10 | 130 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.51.5 |
ZM8-150C | 10 | 150 | 40-50 | 5.5/0.37 | 5 | 3.5*1.7*1.7 |
ZM8-200B | 10 | 200 | 25-60 | 7.5/0.37 | 6 | 3.8*1.6*1.7 |
ZM10-120B | 12 | 120 | 40-70 | 11/0.75 | 7 | 3.3*1.71.7 |
ZM10-170C | 12 | 170 | 40-60 | 11/0.75 | 7.5 | 4.2*1.81.7 |
ZM10-220C | 12 | 220 | 35-60 | 11/0.75 | 7.5 | 4.2*1.81.7 |
ZM10-250C | 12 | 250 | 30-45 | 11/0.75 | 8.5 | 5*1.8*1.7 |
ZM10-300C | 12 | 300 | 25-35 | 15/0.75 | 9 | 5*1.9*2.1 |
ZM10-360C | 12 | 360 | 20-30 | 15/0.75 | 12 | 6.7*2*2.6 |
ZM12-150C | 14 | 150 | 40-50 | 15/0.75 | 10 | 3.9*1.9*1.8 |
ZM12-250C | 14 | 250 | 35-50 | 15/0.75 | 11 | 5.3*2.2*1.9 |
ZM14-150C | 16 | 150 | 40-50 | 11/0.75 | 10 | 4.5*2.2*2.15 |
ZM14-250C | 16 | 250 | 35-45 | 15/0.75 | 11 | 5*2.2*2.15 |

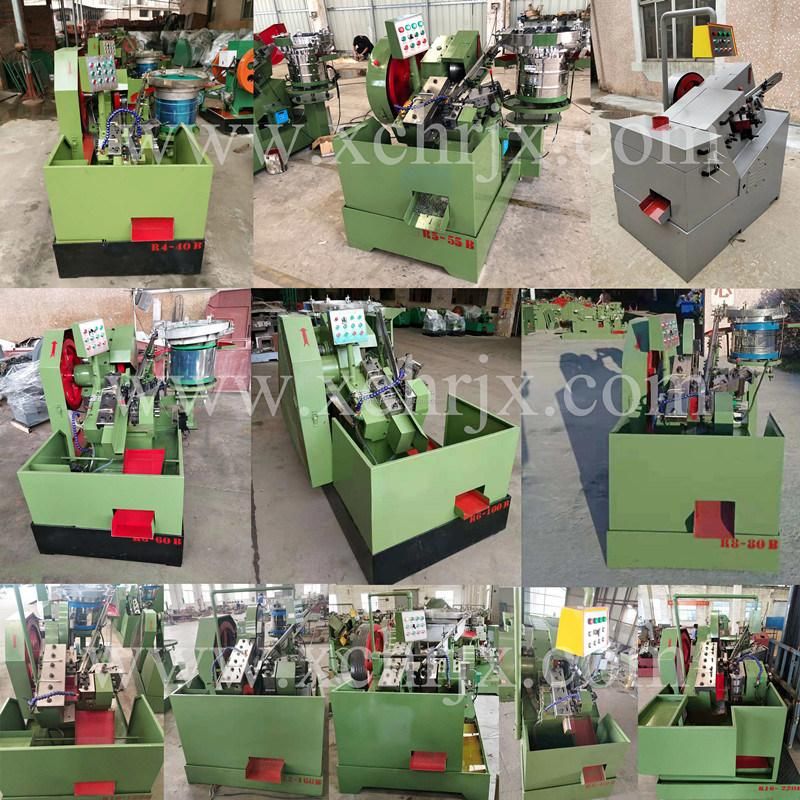

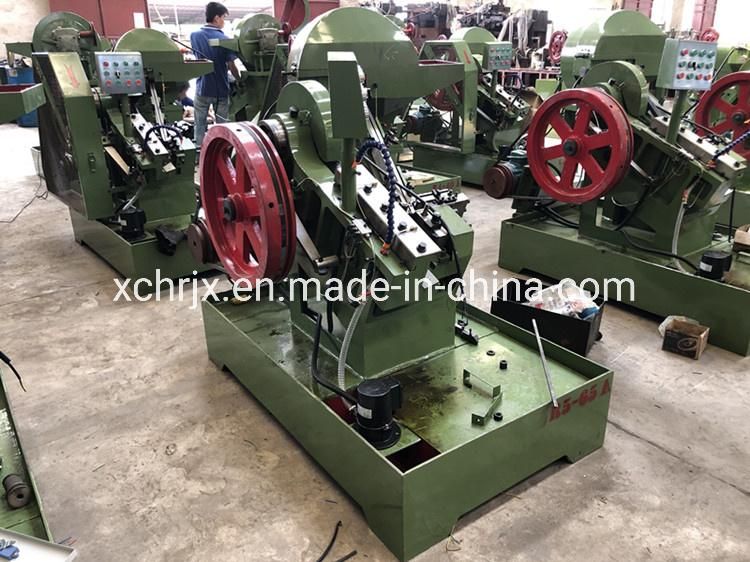

2. Full automatic thread rolling machineThis equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed,
movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates,
movable plate move forward twist work piece, make its surface plastic deformation into thread.
Main technical parameters:
Model | Max. Screw Dia (mm) | Max. Screw length (mm) | Motor (kw) | Capacity (pcs/min) | Weight (Ton) | Overall size (m) |
HR3-20A | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
HR3-20B | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
HR4-25A | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
HR4-25B | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
HR4-40A | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
HR4-40B | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
HR5-55B | M5 | 55 | 3+0.37 | 160 | 1.2 | 1.6*1.35*1.7 |
HR5-65A | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
HR5-65B | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
HR6-60A | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
HR6-60B | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
HR6-100B | M6 | 100 | 5.5+0.37 | 110 | 1.9 | 2.7*1.3*1.3 |
HR8-80B | M8 | 80 | 5.5/0.37 | 110 | 1.8 | 2.1*1.55*1.3 |
HR8-100B | M8 | 100 | 7.5+0.37 | 100 | 2.1 | 2.7*1.7*1.3 |
HR8-120B | M8 | 120 | 5.5 | 100 | 2.1 | 2.4*1.8*1.4 |
HR10-120B | M10 | 120 | 7.5 | 80 | 1.8 | 2.35*1.95*1.4 |
HR12-120B | M12 | 120 | 11 | 60 | 3 | 2.45*2*1.45 |
HR12-160B | M12 | 160 | 13 | 60 | 3 | 2.45*2*1.45 |
HR12-220B | M12 | 220 | 15 | 50 | 3.5 | 2.5*2*1.45 |
HR16-120B | M16 | 120 | 15 | 50 | 3.8 | 2.5*2.1*1.45 |
HR16-160B | M16 | 160 | 15 | 50 | 4 | 2.5*2.1*1.45 |
HR16-220B | M16 | 220 | 15 | 45 | 4.8 | 3.7*1.9*1.7 |

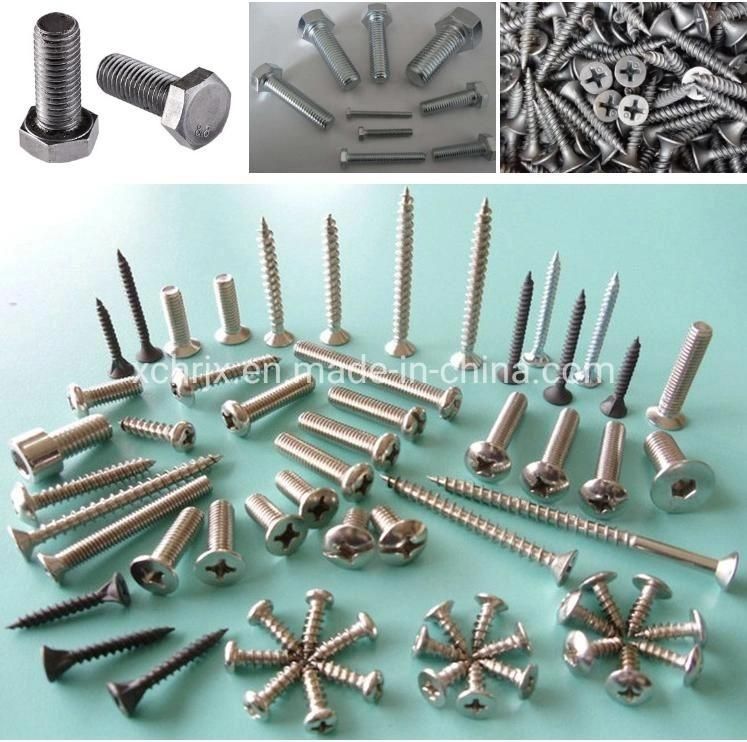

3. Finished screws:
We can also customize machine according to your screws. Please send pictures of screws you want to make and
tell screw diameter and length you want to make. Then we can recommend most suitable machine accordingly.

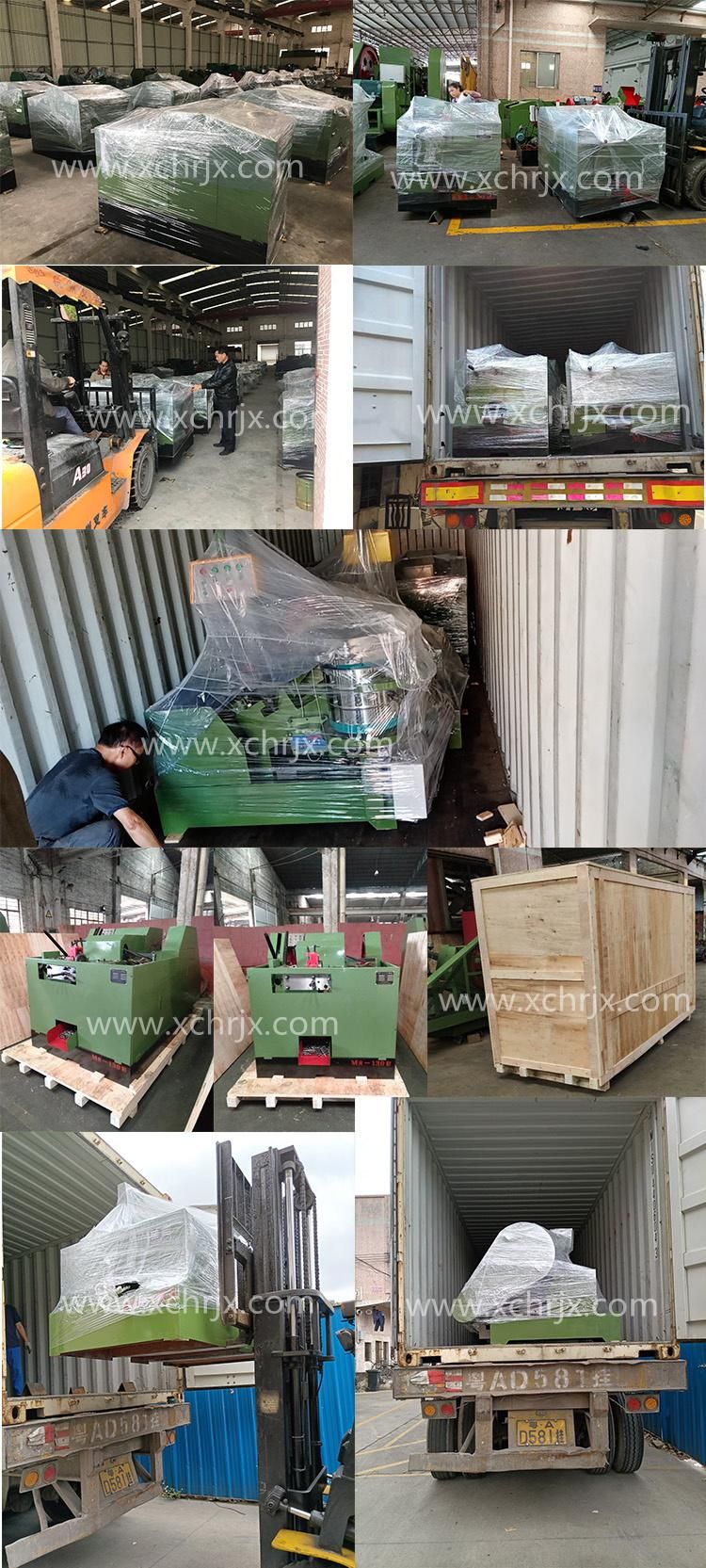

4. Our screw making machines have been exported to many countries:

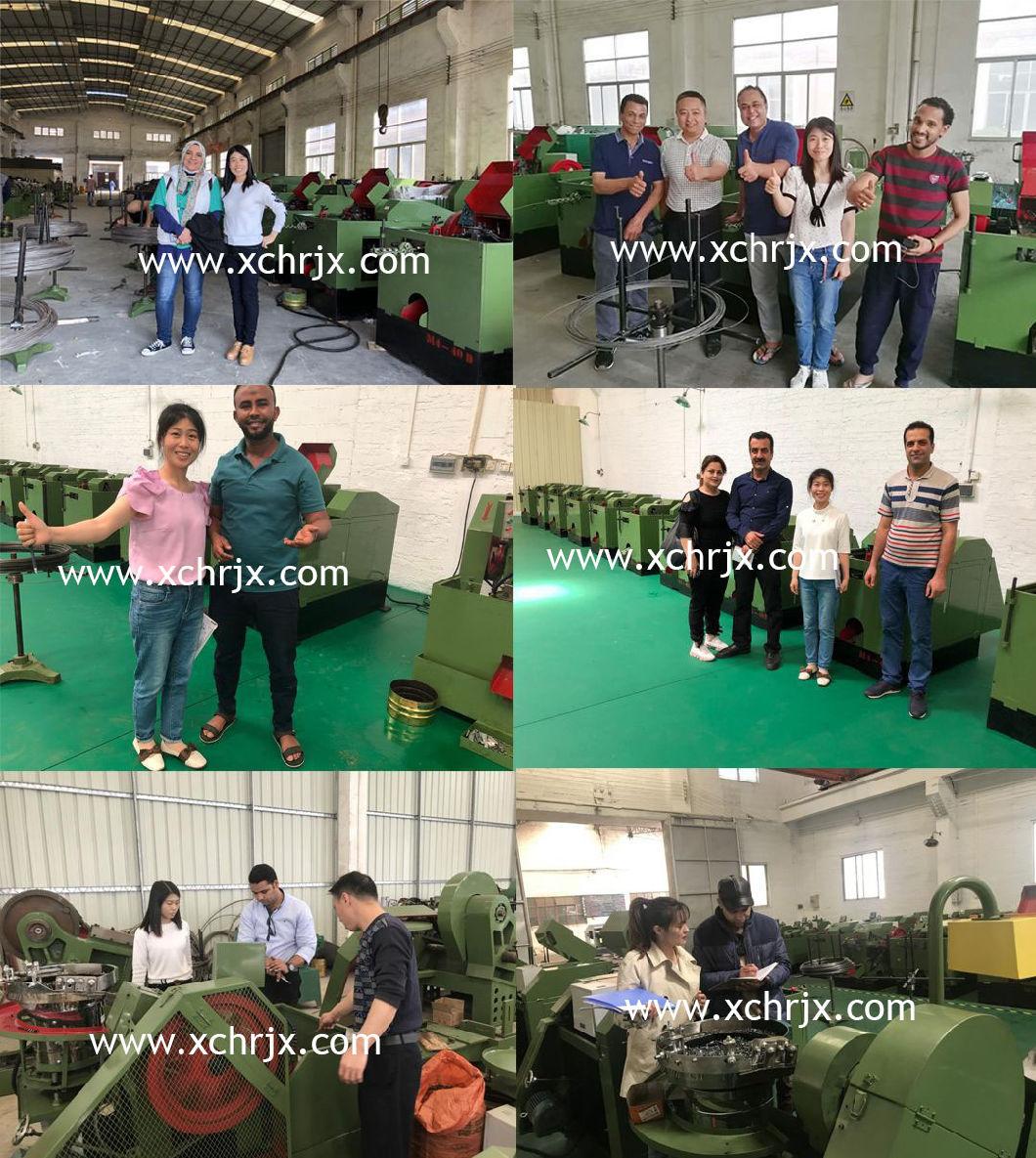

5.Customers Show:
6. After sales service:
1. The warranty time of all our products is two years.
2. Before sending the machines, they will be tested and adjusted, so you can use machines directly when you get it.
Operation video & instruction will also be sent to clients.
3. Professional advice will be offered when you meet some problems when using our products.
4. All kinds of frequently used parts are supplied all the year round.
5. 24 hours on line service.

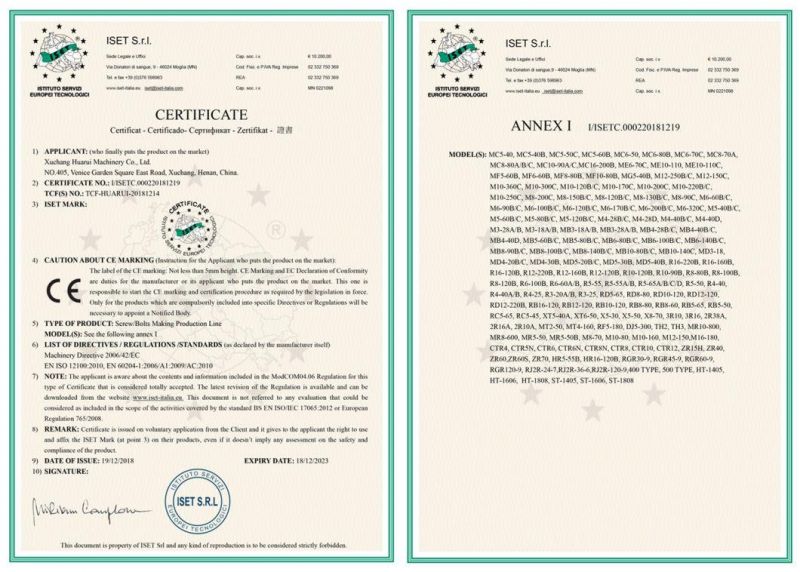

7. CE certification of screw making machine8. Our company has been specialized in screw making machines, rivet making machines,
bolt making machines for over 30 years. If any interest in our machines, welcome to contact
us any time.
