• Model NO.：LL-CL70-14Q
• Profile Can Be Produced：C Profile
• Transport Package：Main Machine Bulk and Spare Parts by Wooden Box
• Specification：41*21,41*41,41*62,41*52,41*72,41*82,41*90,41*100
• Trademark：LONGLONG
• Origin：Tianjin China
• HS Code：84552210
• Production Capacity：100sets,Month

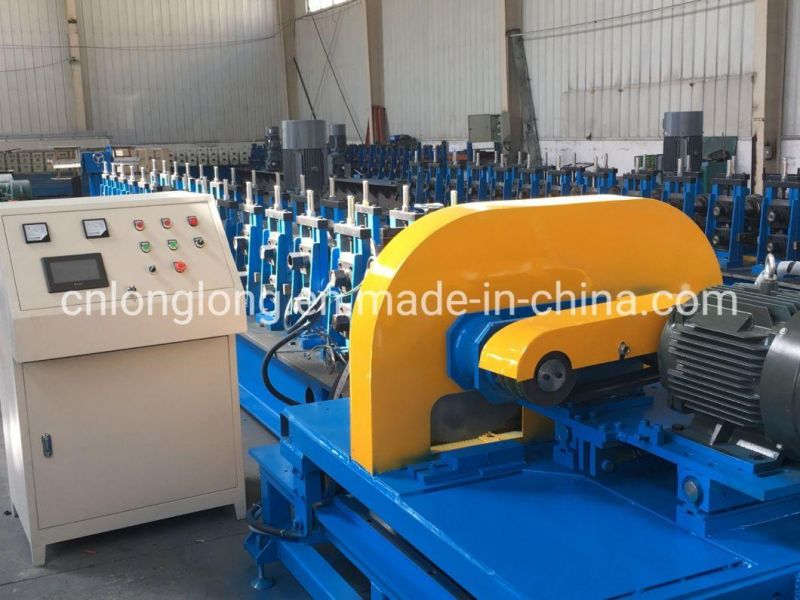

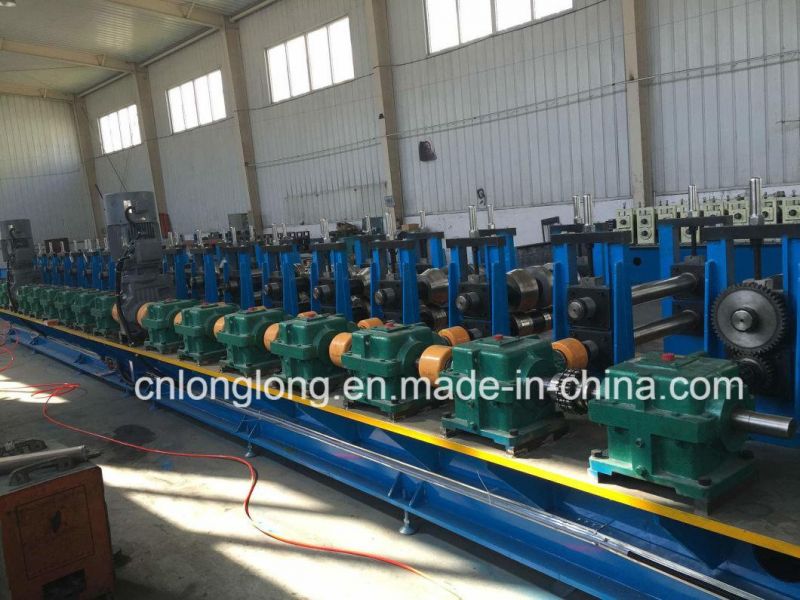

 Performance and parameterMaterial width for production50-300mmForming main machineMotor powerElectromagnetic speed regulating motor:(main motor)15*1=15Kw;chase shear motor 15kwRolling thickness0.5-3.0mm(Mould tolerance 2.0-2.5mm)Roller materialCommon Cr12;Salt bath quenching:HR58-62Production scopeC profile(see drawing)Frame structureArch type structure,Commutator transmissionProduction speed10-30m/minK97 seriesControl methodPLC controlBase structureIntegral steel plate welding structure;Body milling machine.DecoilerStructureVertical MT-500Forming steps14Weight capacity2000kgShaft diameter¢70mm1300mmTransmission modecommutator transmission;Soft coupling outputI.D480mmCutting deviceCutting modeFlying saw follow up cuttingMaterial Width200-300Cutting mould65MNCollectorLength3000-11800mmCutting mode CollectCollect frameLength tolerance Fixed length formPneumatic accuracy fixed length device(Deceleration follow up shear)SizeMain machine(mm)26000X1800X1300(L*W*H)Production line lisProduction line(mm)30000X3000(L*W)Decoiler1set  Production process:Decoiler---straighten---roll fomring---finish product straighten--follow up flying saw cuttingMain machine1set  Electric cabinet1set  Production line features: Main drive by K97 series helical gear reducer; transmission mode for the transmission of the commutator; a soft connection method input into the main machine.Motor use 2 variable frequency motor. The fixed size mechanism adopts penumatic fine fixed legnth and the satisfies the tolerance +/-1.0mm,add reduce speed device to the fixed part to avoid collision effectively.Collector1set  Follow up flying saw cutting1set  Roll Forming Machine

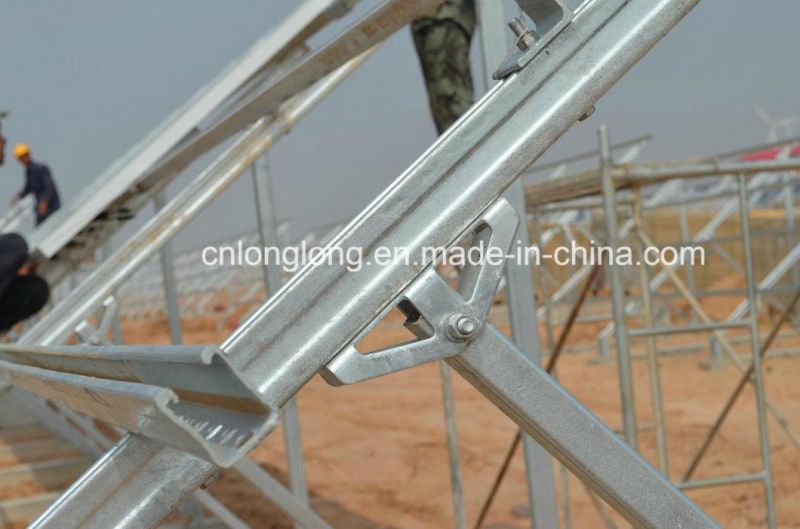

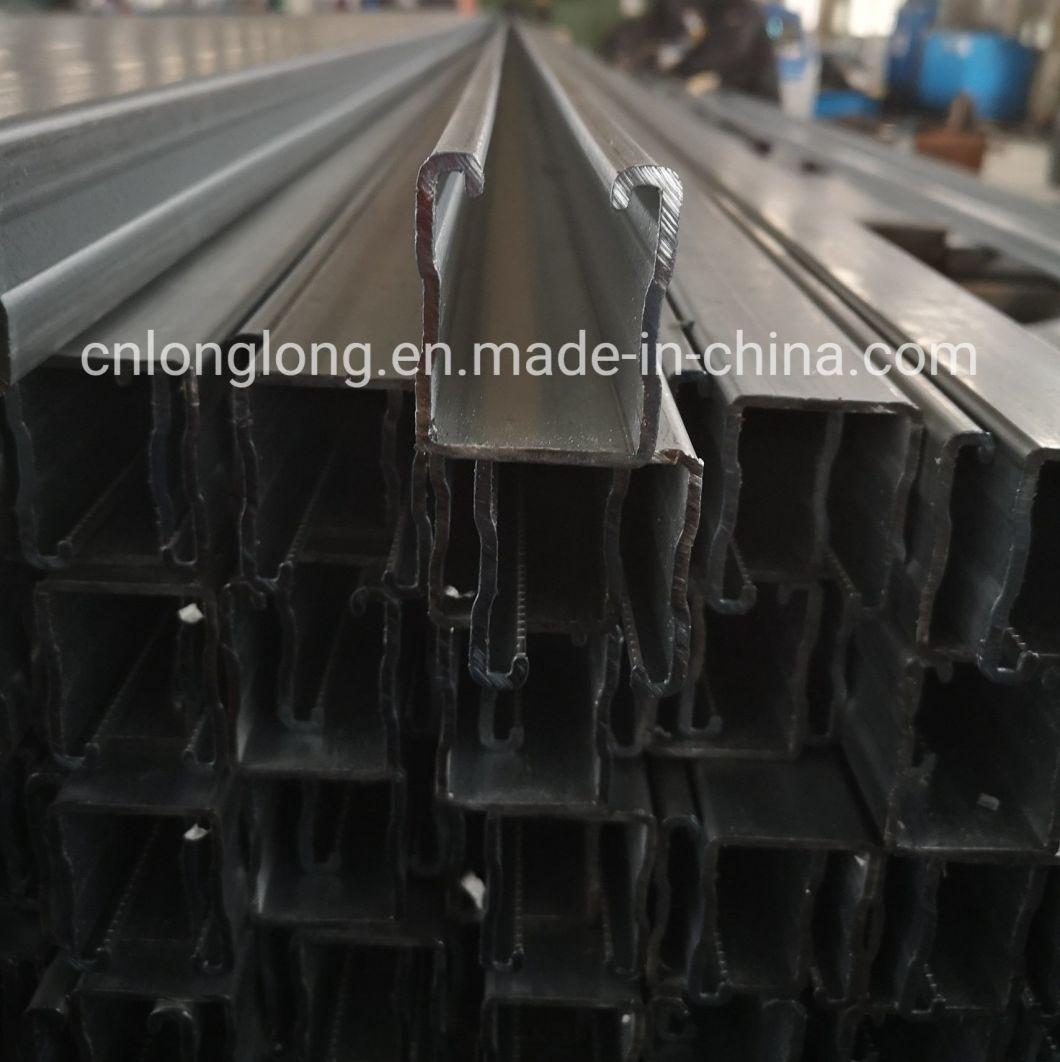

Perforated Steel Bracket

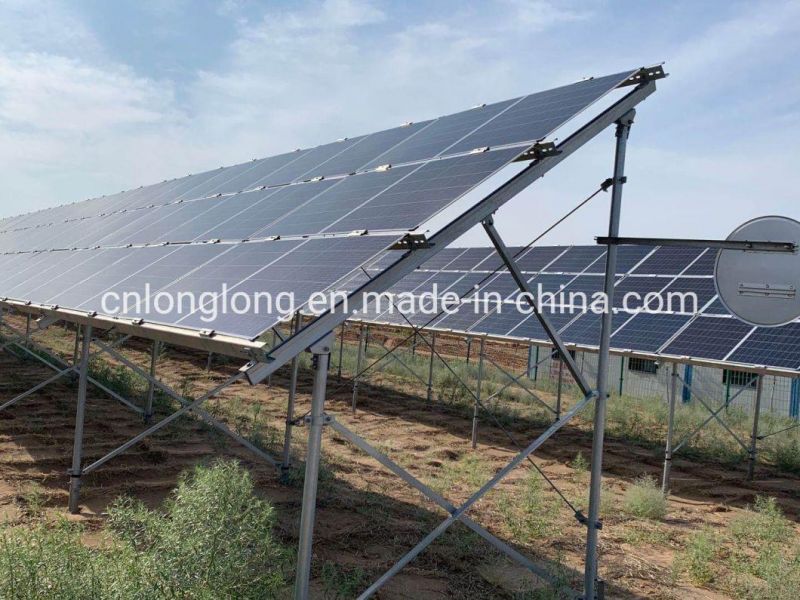

Solar Tracking system project:
Advantage
1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services.

FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
