Jolt Squeeze Sand Molding Machine Z145W/Z146W
Qingdao Hua Chuan Machinery Co., Ltd.- Control Type:Pneumatic Control
- Customized:Non-Customized
- Condition:New
- Automatic Grade:Semi-Automatic
- Certification:CE
- Type:Sand Casting
Base Info
- Model NO.:Z145W,Z146W
- Transport Package:Wooden Packing
- Specification:2-5cbm
- Trademark:QDHC
- Origin:Qingdao, China
- Production Capacity:1000sets,Year
Description
Basic Info.
Model NO. Z145W/Z146W Transport Package Wooden Packing Specification 2-5cbm Trademark QDHC Origin Qingdao, China Production Capacity 1000sets/YearProduct Description

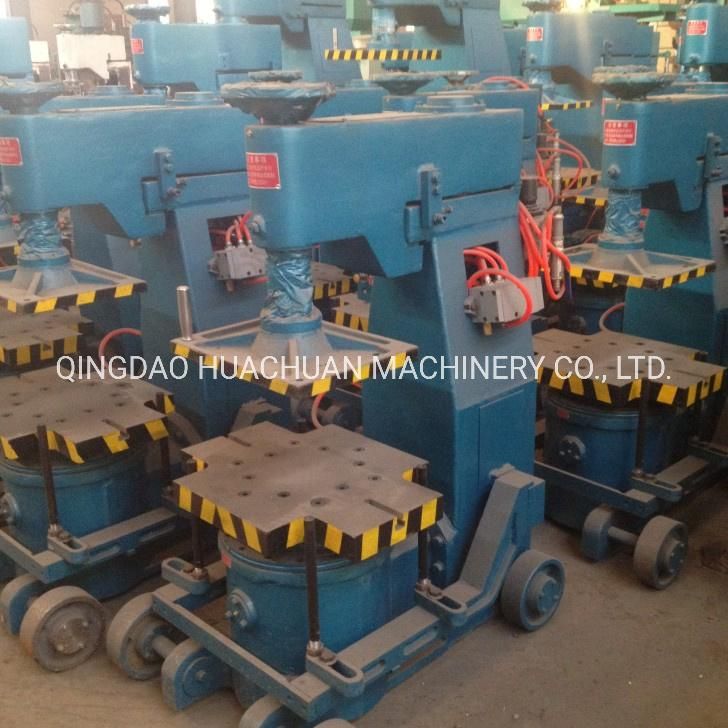

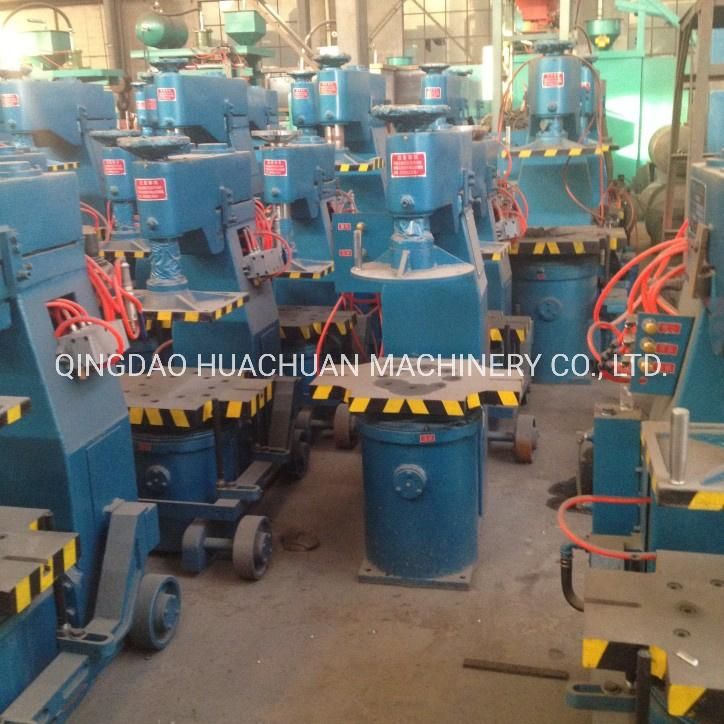

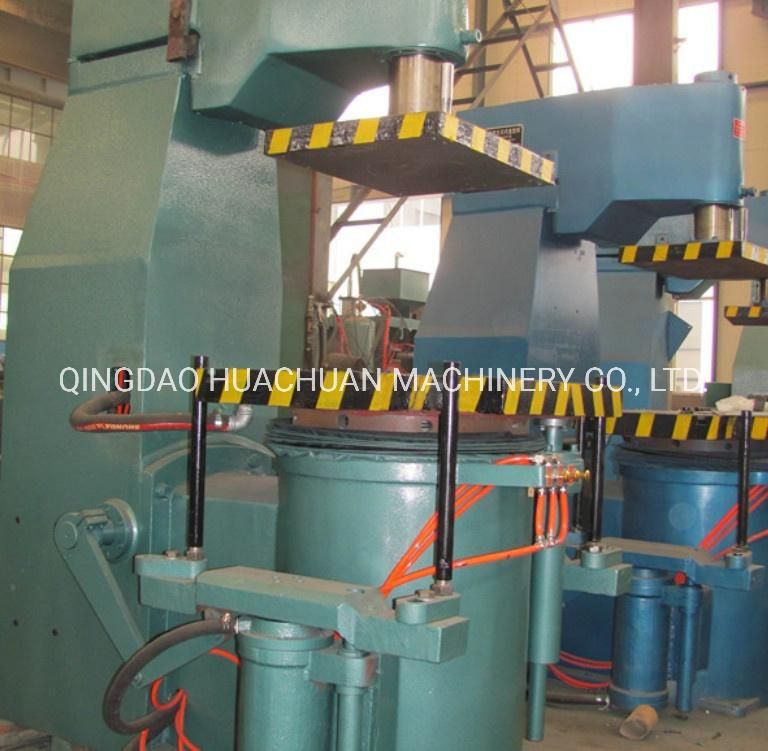

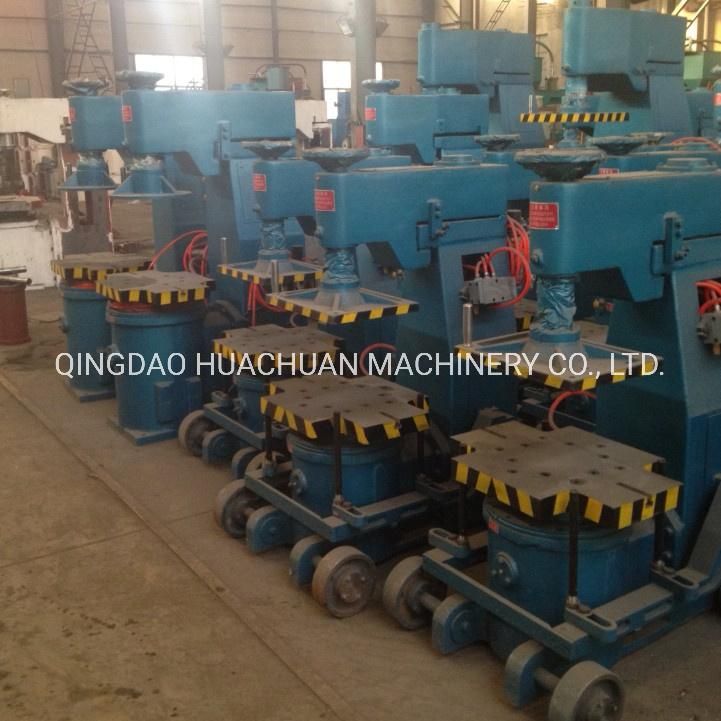

Jolt Squeeze Sand Molding Machine Z145W/Z146W
The Jolt Squeeze Moulding Machine Work Technical Parameters
Molding machine | Z143W | Z145W | Z146W | Z147W | Z148W |
Foundry flask max dimension mm | 500*400 | 550*450 | 620*500 | 700*550 | 850*650 |
Worktable dimension mm | 600*420 | 600*460 | 700*560 | 800*560 | 900*730 |
Compressive process mm | 140 | 160 | 160 | 160 | 220 |
Compressive stress kgf | 4200 | 6800 | 8300 | 8300 | 11775 |
Jolting load kgf | 200 | 300 | 300 | 300 | 600 |
Moulding process mm | 160 | 200 | 220 | 220 | 280/300 |
Productivity box/hr | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
Consumption of free air m³/box | 0.25 | 0.4 | 0.4 | 0.4 | 0.5 |
Outline size mm | 820*650*1310 | 900*750*1600 | 1000*800*1700 | 1200*900*1700 | 1300*1120*2100 |
The Jolt Squeeze Moulding Machine Work principle
The worktable fall and collide with floating shock-iron,and the sand was tighted slightly, and then to compaction,get the top and bottom of sand mould are tight. The slightly shock is high frequency (500-1000 times/min), small amplitude (5-25 mm) vibration instead of low frequency (60-120 times/min), the large amplitude vibration. This kind of moulding machine made of sand mold are good quality, the basic requirement is also lower.
The Jolt Squeeze Moulding Machine Feature
- The Jolt Squeeze Moulding Machine Noise Controlled
- The Jolt Squeeze Moulding Machine Combined Jolt Squeeze
- The Jolt Squeeze Moulding Machine Accurate Centreline Draw
- The Jolt Squeeze Moulding Machine Variable Jolt Timers
- The Jolt Squeeze Moulding Machine Operational Roller on Pin Lift Draw
- The Jolt Squeeze Moulding Machine Operational Safety Guards
We can design product according to your demand. Our molding machine have stabile performance , good quality and reliable service. We allow a proper discount according to the quantity you order.If you have any question, pls dont feel any hesitate to ask me, i will try best to meet your demand,It's make our company great honour.
