Extruded Fin Tube Machine for Heat Exchangers & Coolers Used Bimetallic High Fin Tube

Nantong Zhenhuan Trade Co., Ltd.
  • After-sales Service：Available
  • Warranty：1 Year
  • Ase Tube Diameter Range：7~11mm; 12~32mm; 15~45mm
  • Outer Diameter of Finned Tube：25~77mm
  • Base Tube Material：Steel, Copper, Stainless Steel
  • Fin Material：Aluminum, Copper

Base Info

  • Model NO.：GJ-66
  • Fin Material Thickness：0.3~0.45mm
  • Fin Height：Less Than 16mm
  • Finned Tube Length：0-15m
  • Spindle Rotating Speed：80rpm, 100rpm, 120rpm
  • Fin Rolling Speed：0.6m,Min, 0.75m,Min, 0.9m,Min
  • Main Motor Power：11kw
  • Transport Package：Wooden Case
  • Specification：2450 x 1000 x 1650mm
  • Trademark：ZHENHUAN
  • Origin：China
  • HS Code：8455229090
  • Production Capacity：10 Sets , Month

Description

15m* Note: When base tube diameter is less than 22mm, recommend fin height is better not more than 12mm.
** Note: When fin pitch is less than 2.3mm or more than 3.2, it's better to provide more details of fin tubes for us to check.
 Main technical data of extruded fin tube machine:
ItemData
Center line height of main spindle to worktable345mm
Height of worktable718mm
Output spindle rotating speed80rpm; 100rpm; 120rpm
Fin rolling speed0.6m/min; 0.75m/min; 0.9m/min
Main driving motor power11kW
Coolant water pump motor power0.12kW
Machine weightAbout 1500kg
Overall dimension (packed)About 2450 x 1000 x 1650mm

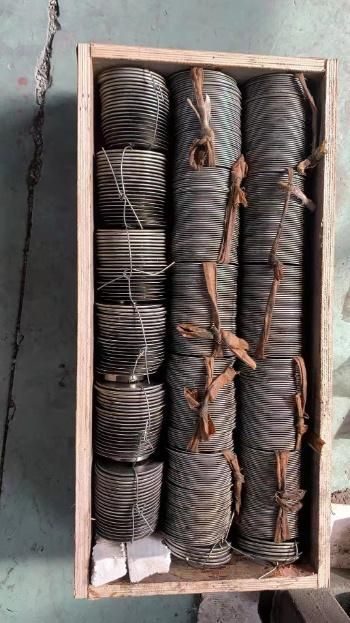

Rolling blade of this extruded fin tube machine:

Extruded Fin Tube Machine for Heat Exchangers & Coolers Used Bimetallic High Fin TubeExtruded Fin Tube Machine for Heat Exchangers & Coolers Used Bimetallic High Fin Tube
By changing different rolling blades, different size fin tube can be produced.

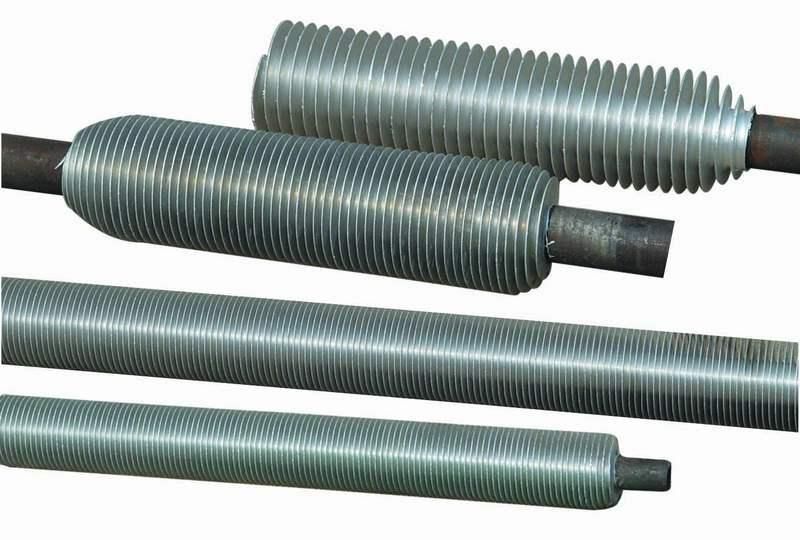

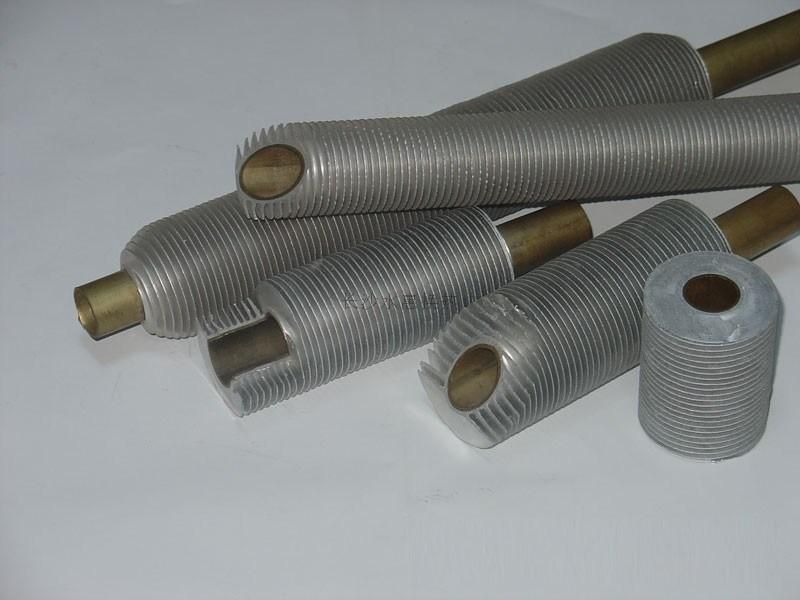

Photos of finned tube made by extruded fin tube machine:
Extruded Fin Tube Machine for Heat Exchangers & Coolers Used Bimetallic High Fin TubeExtruded Fin Tube Machine for Heat Exchangers & Coolers Used Bimetallic High Fin Tube
Our Nantong Zhenhuan Trade Co., Ltd., established in 2004. is a private owned manufacturer and export agent of metal related fabricating & forming machinery.

Our products cover a full range of HVAC ventilation duct machines, transformer manufacturing related machines, motor making machines, lead-acid battery making machines, heat exchanger making machines, air-conditioner and refrigerator making machines, steel pipe forming & processing machines, tube/pipe fabricating & processing machines, steel tank making machines, steel wire bending machines, etc.

Focusing on international trade, we have placed our priority on both machine quality and service, which are the key elements that make your band more competitive in the global market. If you are looking for machines, components, OEM products, Zhenhuan Machines will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

Kindly please contact us for more service or details of the heat exchanger extruded fin tube machine.
