• Model NO.：WLD2022
• Condition：New
• Heating Type：Diesel Burner,Natural Gas,LGP,Infrared Lamp
• Port of Loading：Guangzhou,Shenzhen Port
• Application：Metal Coating etc
• Voltage：380V,415V,220V,3pH,50Hz,60Hz
• Certificate：CE
• Color Choice：White,Bule
• Products Capacity：Depends on Requirements
• Working Type：Automatic
• Transport Package：Export Standard
• Specification：Customized
• Trademark：WLD
• Origin：Guangzhou, China
• HS Code：8424899990
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. WLD2022 Condition New Heating Type Diesel Burner/Natural Gas/LGP/Infrared Lamp Port of Loading Guangzhou/Shenzhen Port Application Metal Coating etc Voltage 380V/415V/220V/3pH/50Hz/60Hz Certificate CE Color Choice White/Bule Products Capacity Depends on Requirements Working Type Automatic Transport Package Export Standard Specification Customized Trademark WLD Origin Guangzhou, China HS Code 8424899990 Production Capacity 100 Sets Per Year

Product Description

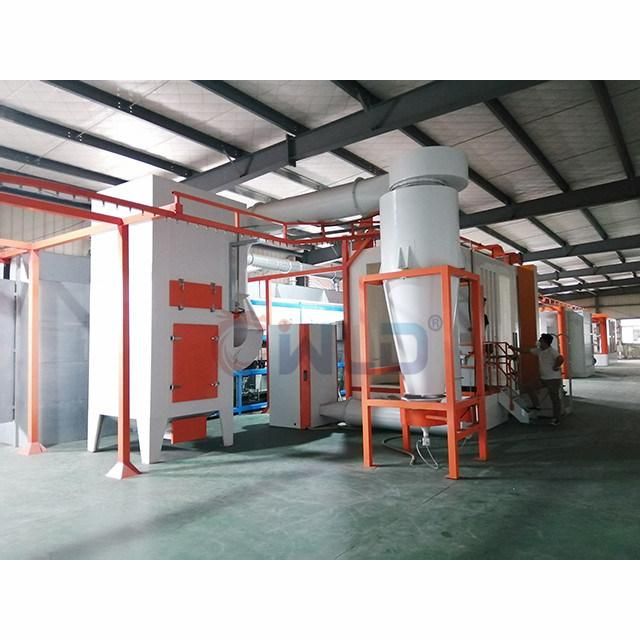

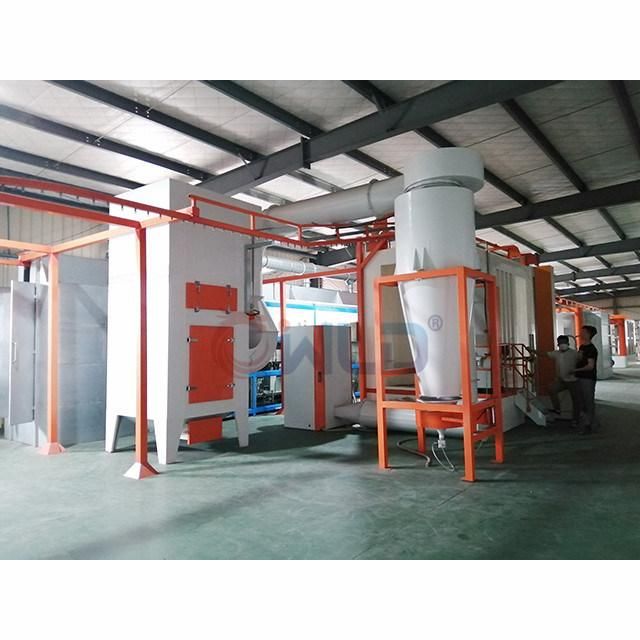

Wld2022 Customized Automatic Electrostatic Powder Spray Equipment/Spraying Machine/Painting Line/Powder Coating Lines/Powder Spraying Equipment:
1. Powder spraying line: hanging → degreasing spray (50-60 ºC) → clean water spray (1 min) → clean water spray (1 min) → DI (swimming immersion for 1 min) → DI spray (1 min) → DI spray cleaning (1 min) → draining section → drying (120 ºC, 8 min) → cooling (18 min) → spraying (automatic, manual repair or manual spraying) → baking and curing (180-220 ºC adjustable, 28min) → Cool down (18min) → hang down.

5. Suspension conveying system:

5.1 The heavy-duty 200 suspension conveyor chain is used, and the single-point lifting weight is 50kg, including driving mechanism, heavy hammer tensioning device, chain, straight rail, curved rail, telescopic rail, bracket, primary spreader, electrical control system, overload automatic protection device, etc. .

5.2 Adopt the appropriate number of driving devices according to the tension of each line; no problems such as crawling and jamming.

5.3 The design process chain speed is: V=0.5m/min (0.5-1.0m/min steplessly adjustable).

5.4 The drive device adopts variable frequency stepless speed regulation technology.

5.5 Displacement limit protection switches are installed on the tensioning device, catenary emergency stop switches are installed in all key parts of the whole line, and the drive is equipped with mechanical and electrical double safety protection.

5.6 All tracks are equipped with turning light wheel slewing devices to reduce the driving load.

5.7 The track in the curing furnace is equipped with 2 expansion joints to ensure that the track has no thermal deformation.

5.8 The running noise of the drive chain is below 65db, and the grease-enclosed chain is used for easy maintenance.

5.9 The upward and downward slope angles of all conveyor chains are 30º;

5.10 Set the emergency stop button at each of the following positions, and set the acousto-optic display of the emergency stop position in the conspicuous position of the workshop to promptly inform the production management personnel of the emergency stop location:

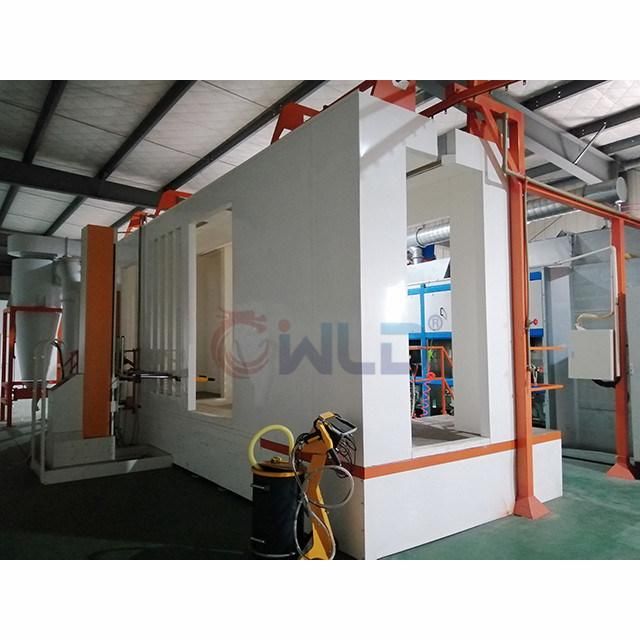

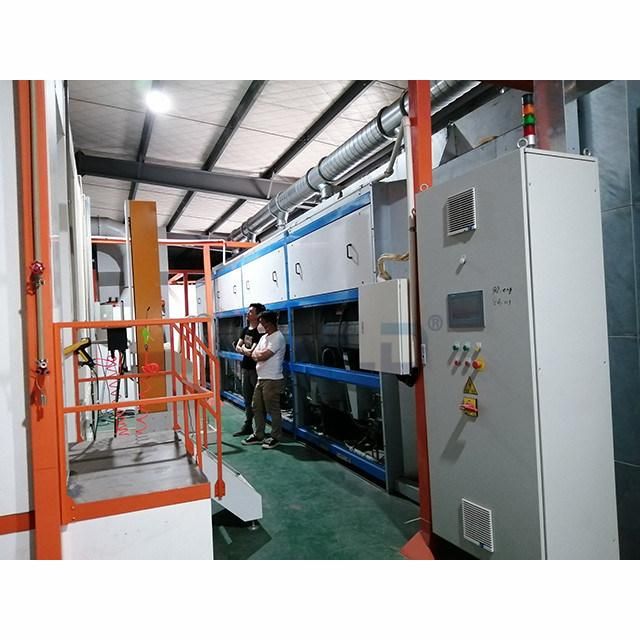

 The position of the upper part; the spray booth; the powder spraying room; the driving position; the control cabinet; the position of the lower part.
