Cold Chamber Die Casting Machine C/680d
Ningbo Beilun Allway Machinery Co., Ltd.- Condition：New
- Automatic Grade：Automatic
Base Info
- Model NO.：C,300D
- Certification：CE, RoHS, GS, ISO9001
- Type：Special Casting
- Transport Package：Standard Packing
- Specification：CE, SGS, ISO9001: 2008, CQC
- Trademark：ALLWAY
- Origin：Ningbo China
- HS Code：8454301000
- Production Capacity：500PCS,Year
- Package size per unit product：6630.00cm * 1640.00cm * 2840.00cm
- Gross weight per unit product：12500.000kg
Description
| Specification | C/300D | |
| Clamping Force | KN | 3000 |
| Clamping Stroke | mm | 480 |
| Die-Thickness (Min-Max) | mm | 250-680 |
| Platen Size(H*V) | mm | 900x900 |
| Space between Tie-Bars | mm | 580x580 |
| Diameter of Bars | mm | 110 |
| Casting Force | KN | 142-340 |
| Casing Stroke | mm | 440 |
| Injection Plunger diameter | mm | 50 60 70 |
| Max. Casting Volume (AL) | kg | 1.6 2.2 3.1 |
| Max. Casting Volume(MG) | kg | 1 1.5 2 |
| Casting Pressure (Min-Max) | Mpa | 72.3-173 50-120 36.9-88.3 |
| Cast Projection Area | Cm2 | 162-759 |
| Injection Position | mm | 0, -160 |
| Ejector Space | mm | 150 |
| Extruding Flange Diameter | mm | 110 |
| Height of Extruding Flange Pattern | mm | 12 |
| Ejecting Force | KN | 180 |
| Ejecting Stroke | mm | 105 |
| Dry Cycle Time | s | 8 |
| System Working Pressure | Mpa | 16 |
| Motor Power | KW | 18.5 |
| Tank Capacity | L | 850 |
| Machine Weight | kg | 12500 |

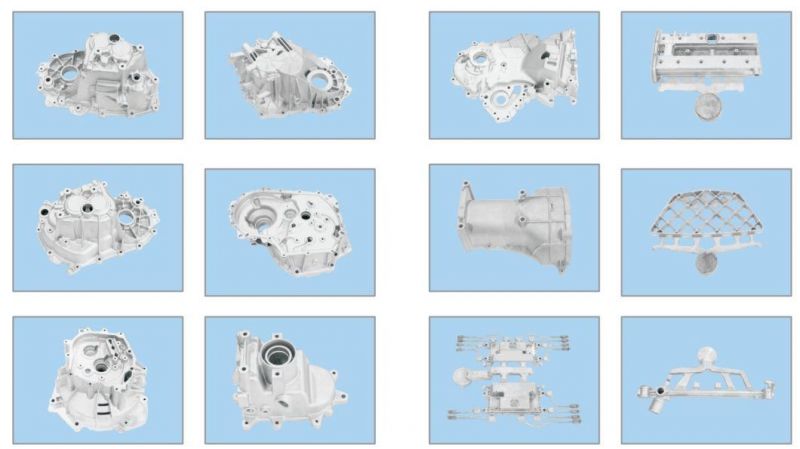

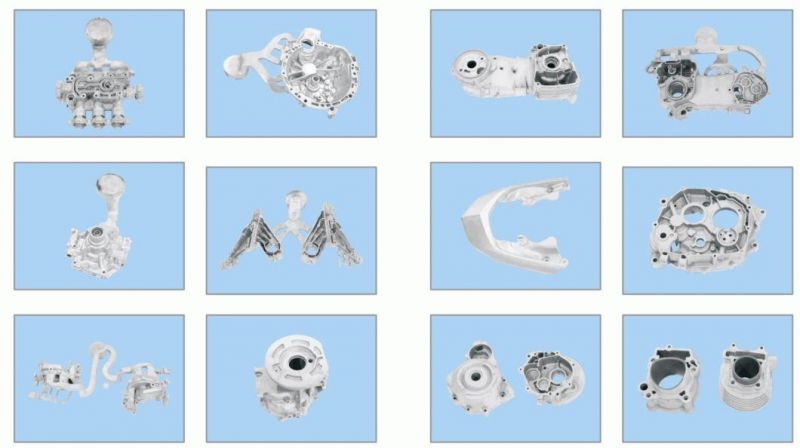

WELLISH precision die casting machine are widely used for lead , zinc,copper , aluminum , magnesium etc non-ferrous die casting in the industries of aviation & aerospace , ship & vehicles , electric and electronic appliances , instruments and meters , medical facilities , hardware's etc.

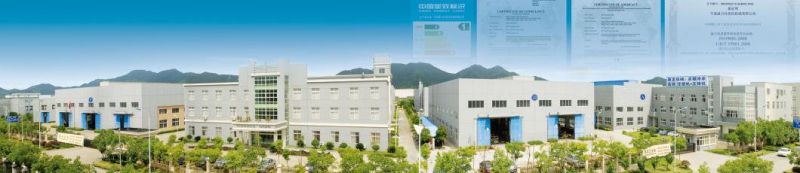

Factory Panorama
Exhibition Show

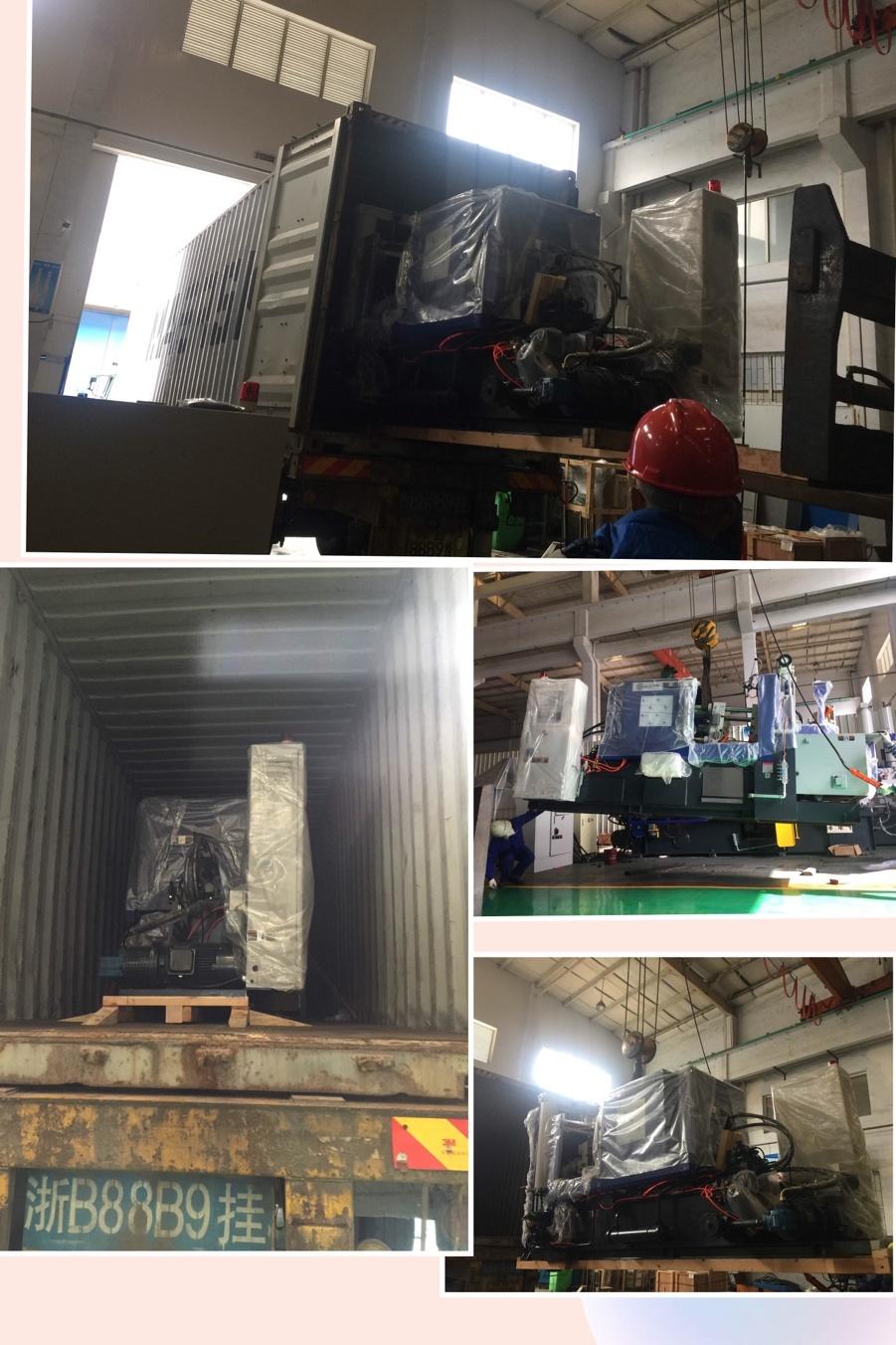

Packaging & Shipping
ALLWAY---ALWAYS ON THE WAY WITH YOU !
