• Model NO.：P60
• HS Code：846190
• Production Capacity：1000

AC 380V 50HZ 3P

Max process speed

3000mm/min

Cutting motor power

4.0KW

Feeding speed

0-1500mm/min

Feed motor power

0.12KW

Plate length

≥300mm

Beveling angle

15°~60°

Plate width

≥100mm

Max land Width

50mm

Plate thickness

8~50mm

Beveling depth

5-30mm

Single depth

12mm

Surface roughness

Ra3.2~Ra12.5

Weight

210KG

Above parameters just for reference only, not acceptance criteria

 OOLING:

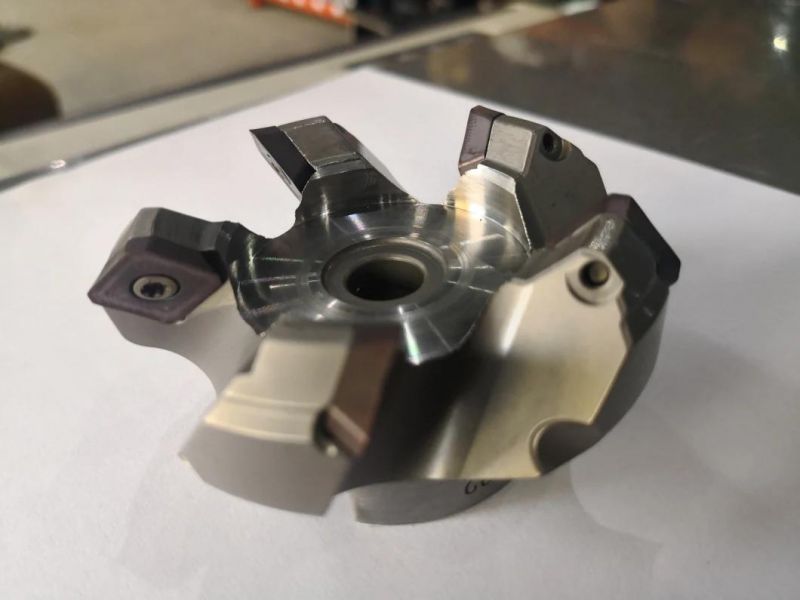

Milling cutter


USING IN 3 WAYS:

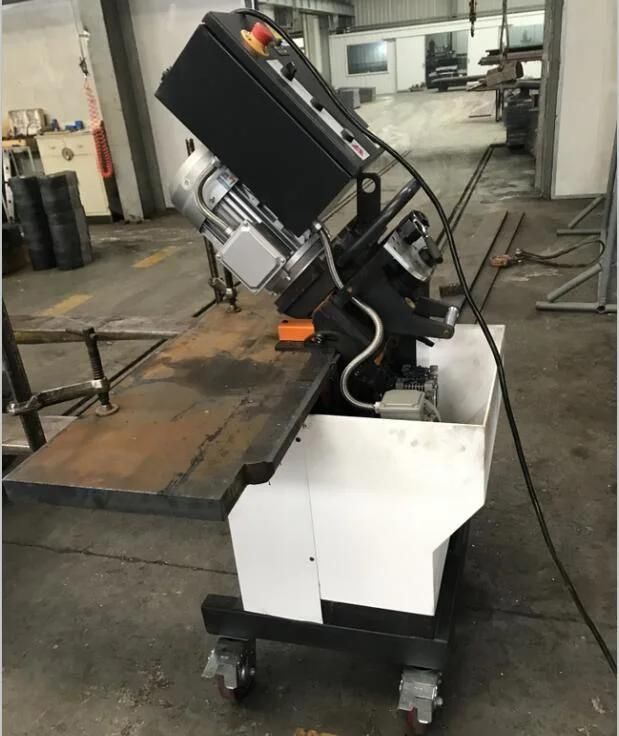

1.mounted on its trolley, for chamfering on medium and big size sheets;

2. Bench version, for chamfering on work-pieces that can be handled manually

3."hanged" version, without trolley, when it is not possible to work at standard heights
