• Model NO.：CK1530
• Layout：Horizontal
• Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
• Automatic Grade：Automatic
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Transport Package：Plywood Packing
• Specification：3200x2800x500mm
• Trademark：CHANKE
• Origin：Shandong China
• HS Code：8465990000
• Production Capacity：200
• Package size per unit product：3190.00cm * 2200.00cm * 1900.00cm
• Gross weight per unit product：2000.000kg

Basic Info.

Model NO. CK1530 Layout Horizontal Cutting Material Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting Transport Package Plywood Packing Specification 3200x2800x500mm Trademark CHANKE Origin Shandong China HS Code 8465990000 Production Capacity 200

Packaging & Delivery

Package size per unit product 3190.00cm * 2200.00cm * 1900.00cm Gross weight per unit product 2000.000kg

Product Description

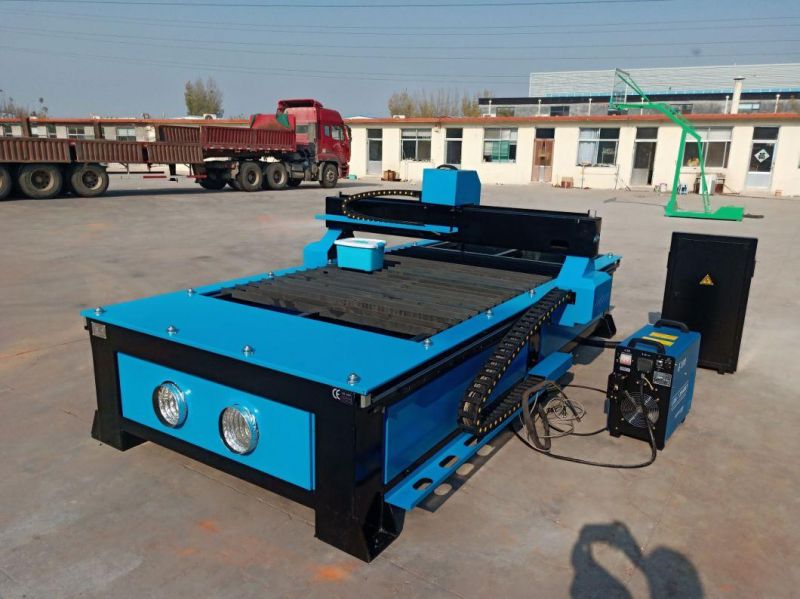

CNC Plasma Cutting Machine with Good Quality


No.	Description	Plasma cutting machine
1	Working   Size	1500*3000mm
2	Z   Axis Clearance	150mm
3	Table   Type	Knife table (Teeth table And Water table can be optional)
4	Transmission   System	Rack   Pinion And Hiwin Linear Rails For X/Y
5	Driving   System	Stepper   Motor And Drivers(Servp motor is optional)
6	Max.   Cutting Speed	12000mm/Min(different configuration and different material and thickness speed is different)
7	Max.   Travelling Speed	30000mm/Min(different configuration speed is different)
8	Working   Voltage	380V/3ph(220V/3ph is optional)
9	Plasma   Generator	According to your requirements
10	Arc   Mode	Non-Contact   Arc, Arc   Pressure Adjuster
11	Max.   Cutting  Thickness	6/15/18/20/30mm
12	Working   Material	Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum   Plate and almost all of the metal

Application:


Advertising industry:
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.

Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.


cnc plasma cutting machine Features
1. Fast cutting speed,high precision and low cost.
2.With firm and reasonable structure,the machine is easy to operate and durable for use.

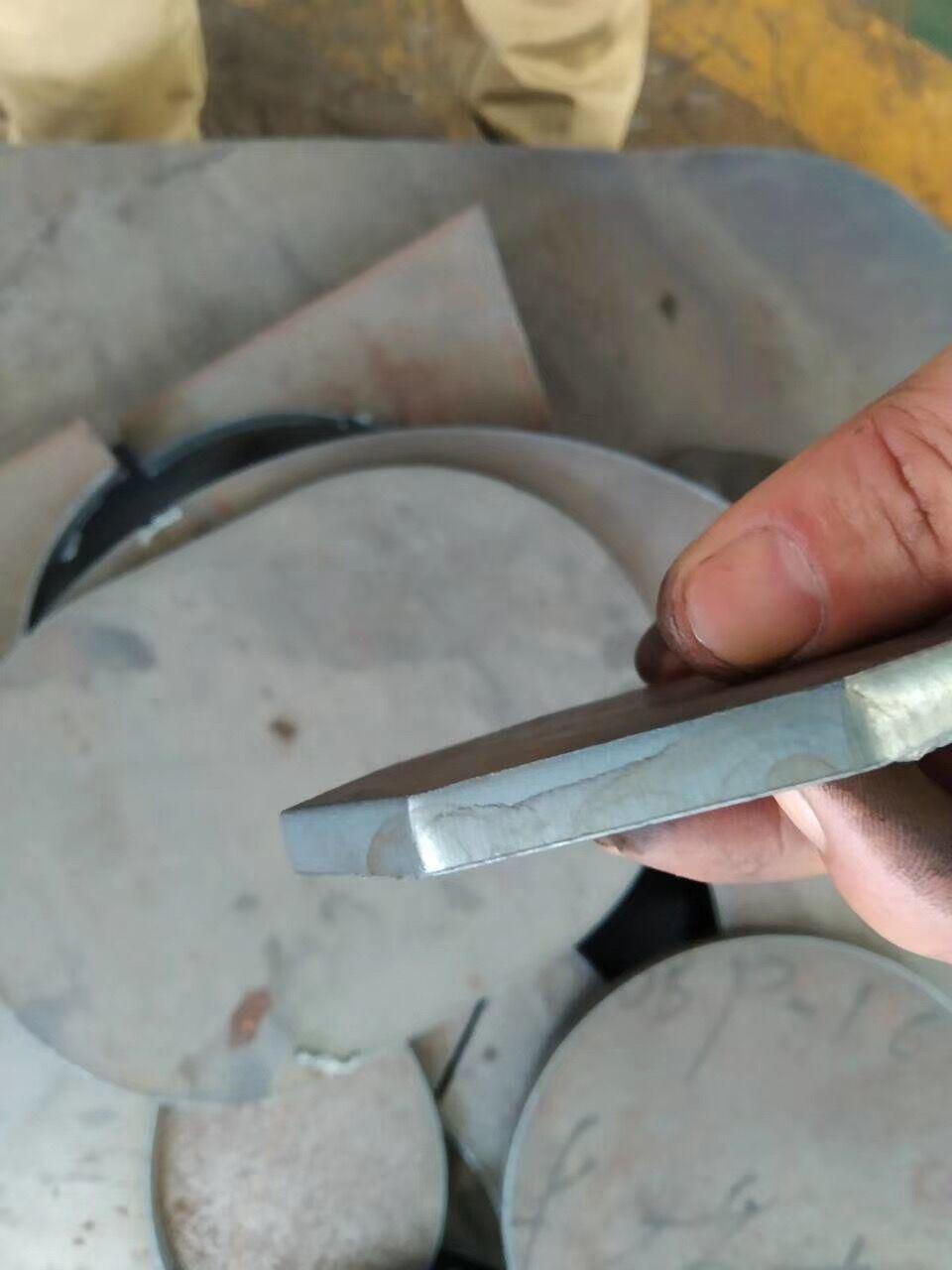

3.The cutting incision is thin and tidily and can avoid the second processing.
4. High configurated CNC system,auto arc-striking and stable performance.
5.Together with other advertising equipments,they form an advertisement producing line which completely solve the problem of traditional manual mode.
6. Working with computer and support G code and files of  Uncannest software (specilized in cutting metal material) (optional Fastcam software)
7.It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional)
8.Start control system and Start THC device
cnc plasma cutting machine Components
A : Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.
B : Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair.
C :Plamsa torch or flame torch
D : Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.
E: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.
F: Height adjustment: Torch Height Controllor (can cut different height material ).
