• Model NO.：D12X50X100
• Material：Tungsten Carbide
• Coating：Coating
• Tooth Form：Spiral Tooth
• Tooth Space：Extra Dense Tooth
• Structure：Indexable Type
• Materials：Tungsten Carbide,Cemented Carbide
• Co：10%
• Wc：90%
• Grain Size：0.8
• Density：14.4
• Hardness：91.8
• T.R.S：3800
• Applicaiton：Cutting and Milling
• Type of Application：Side Milling and Face Milling
• Materials to Be Milling：Aluminum , Copper,Alloy
• Transport Package：Plastic Box Per Single Piece
• Specification：from diameter 0.3 to 20mm
• Origin：China
• HS Code：8207709000
• Production Capacity：30000PCS,Piece

Basic Info.

Model NO. D12X50X100 Material Tungsten Carbide Coating Coating Tooth Form Spiral Tooth Tooth Space Extra Dense Tooth Structure Indexable Type Materials Tungsten Carbide/Cemented Carbide Co 10% Wc 90% Grain Size 0.8 Density 14.4 Hardness 91.8 T.R.S 3800 Applicaiton Cutting and Milling Type of Application Side Milling and Face Milling Materials to Be Milling Aluminum / Copper/Alloy Transport Package Plastic Box Per Single Piece Specification from diameter 0.3 to 20mm Origin China HS Code 8207709000 Production Capacity 30000PCS/Piece

Product Description

Materials:

GW10    WC: 90%, CO:10%, Grain size: 0.8, Density: 14.4, Hardness: 91.8HRA, T.R.S: 3800

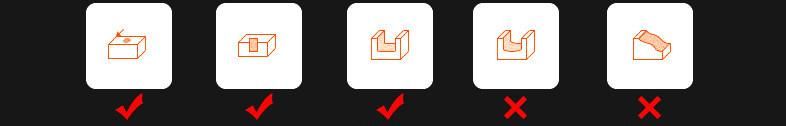

Machining types can used to:

Helix: 35 degree
workpiece to be cut:  Aliminum

Adwantages: Acurate and positive rake angles are sharpened and sharpened. The 3-blade geometry cutting design has a large capacity for chip removal, making cutting smoother, non-sticky, achieving high-efficiency machining, high workpiece accuracy, and good gloss.


3 Flutes Flat End Mill  for Aluminium



HRC choice:  HRC38-45, HRC50-55
Without polishing     with polishing
Materials to be cut:  Aluminum

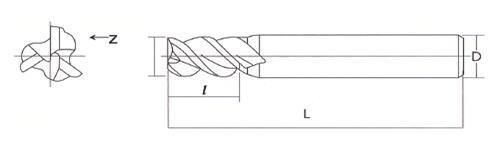

Code No.	Diamter d	Cutting length l	Total length L	Shank D	Flutes Z
3GW4-01002050	1	3	50	4	2
3GW4-01504050	1.5	4	50	4	2
3GW4-02050500	2	5	50	4	2
3GW4-02507050	2.5	7	50	4	2
3GW4-03008050	3	8	50	4	2
3GW4-04010050	4	10	50	4	2
3GW4-04015075	4	15	75	4	2
3GW4-04020100	4	20	100	4	2
3GW4-05012050	5	13	50	6	2
3GW4-06015050	6	15	50	6	2
3GW4-06020075	6	20	75	6	2
3GW4-06020100	6	30	100	6	2
3GW4-06020060	8	20	60	8	2
3GW4-08025075	8	25	75	8	2
3GW4-08025100	8	35	100	8	2
3GW4-010025075	10	25	75	10	2
3GW4-010040100	10	40	100	10	2
3GW4-012020075	12	30	75	12	2
3GW4-012040100	12	40	100	12	2
3GW4-014020080	14	30	80	14	2
3GW4-014100100	14	40	100	14	2
3GW4-016040100	16	40	100	16	2
3GW4-018040100	18	40	100	18	2
3GW4-020040100	20	40	100	20	2
3GW4-06040150	6	40	150	6	2
3GW4-08050150	8	50	150	8	2
3GW4-010050150	10	50	150	10	2
3GW4-012050150	12	50	150	12	2
3GW4-014060150	14	60	150	14	2
3GW4-016060150	16	60	150	16	2
3GW4-018060150	18	60	150	18	2
3GW4-020060150	20	60	150	20	2

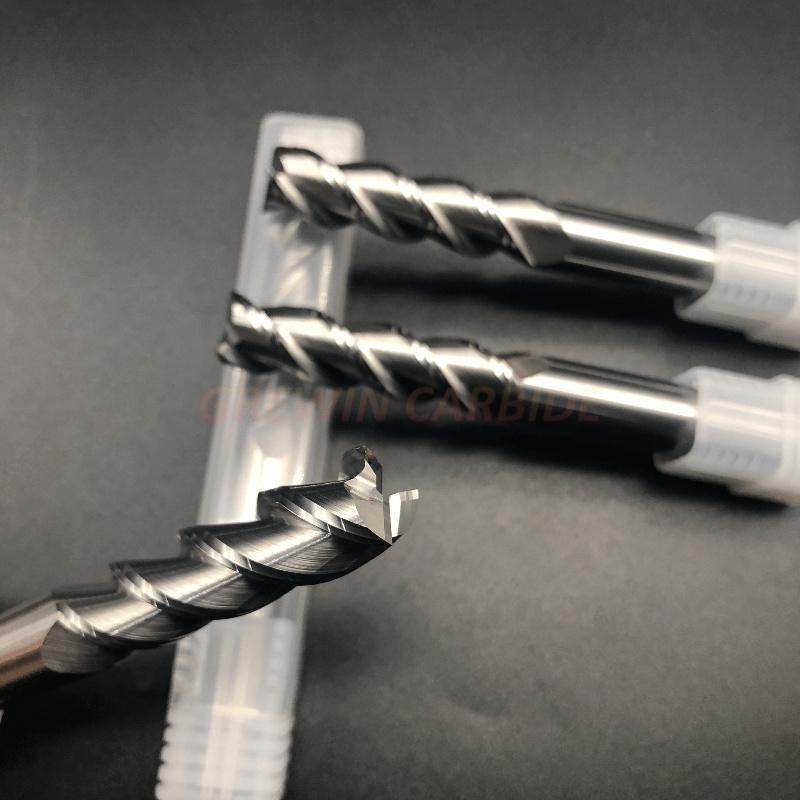

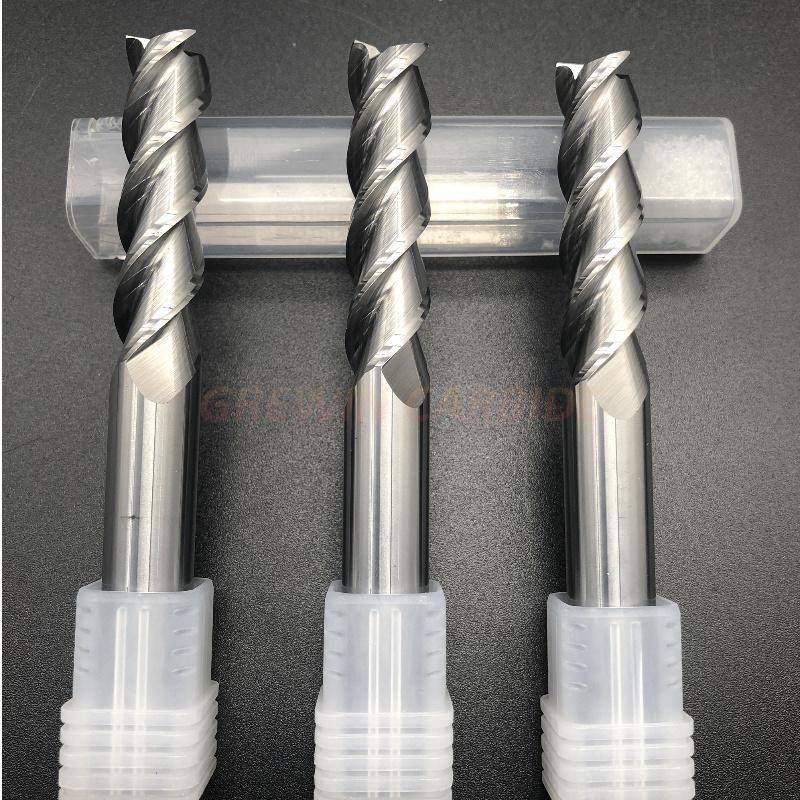

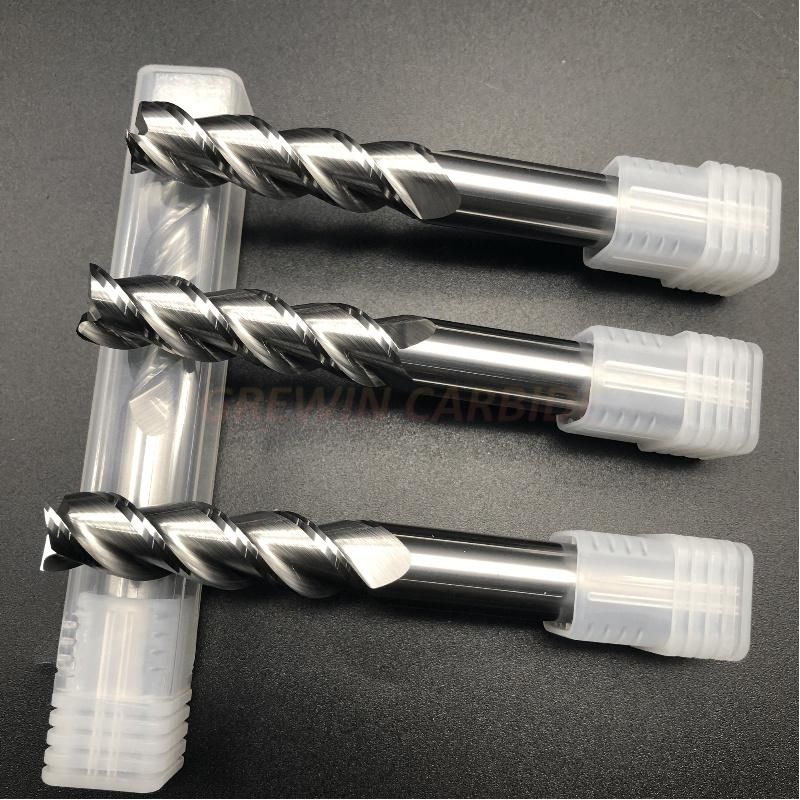

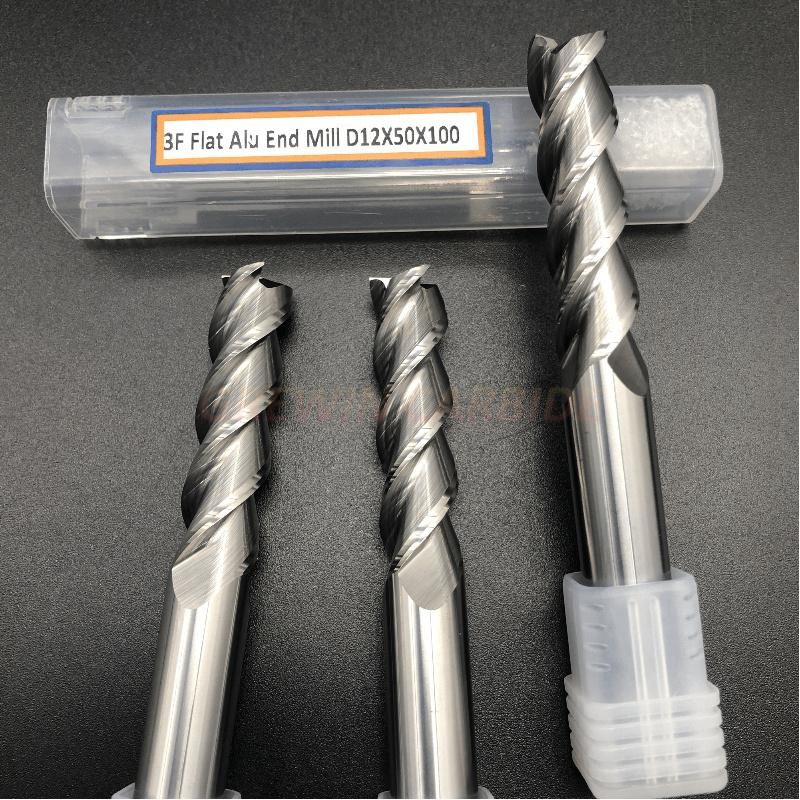

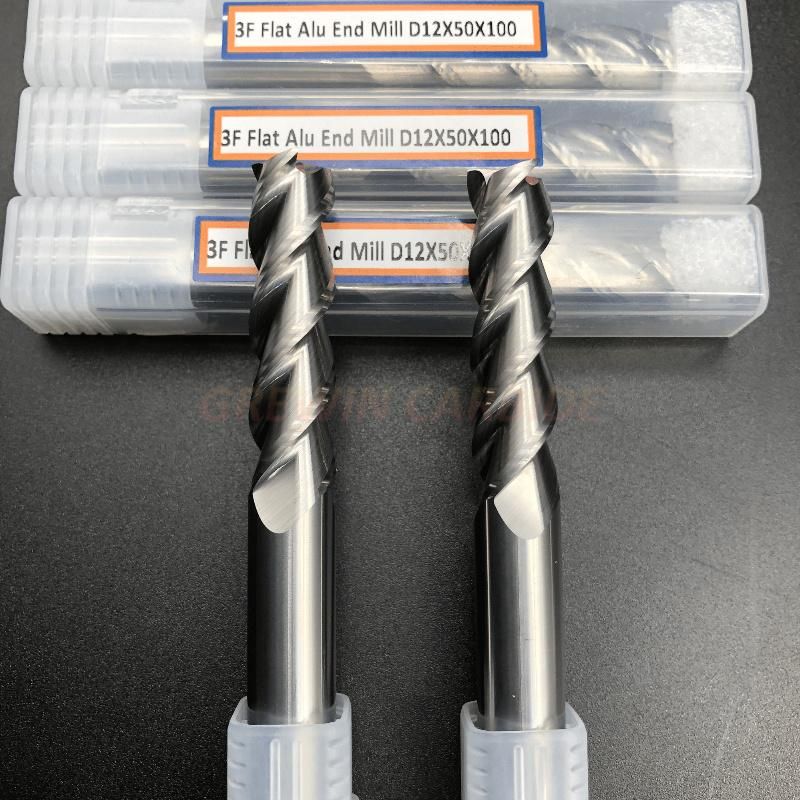

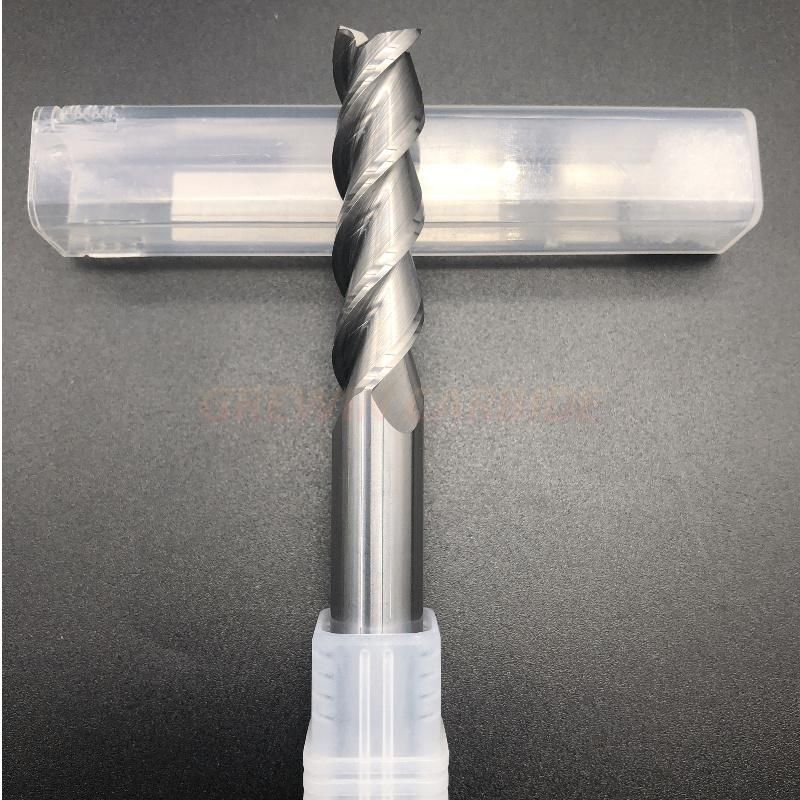

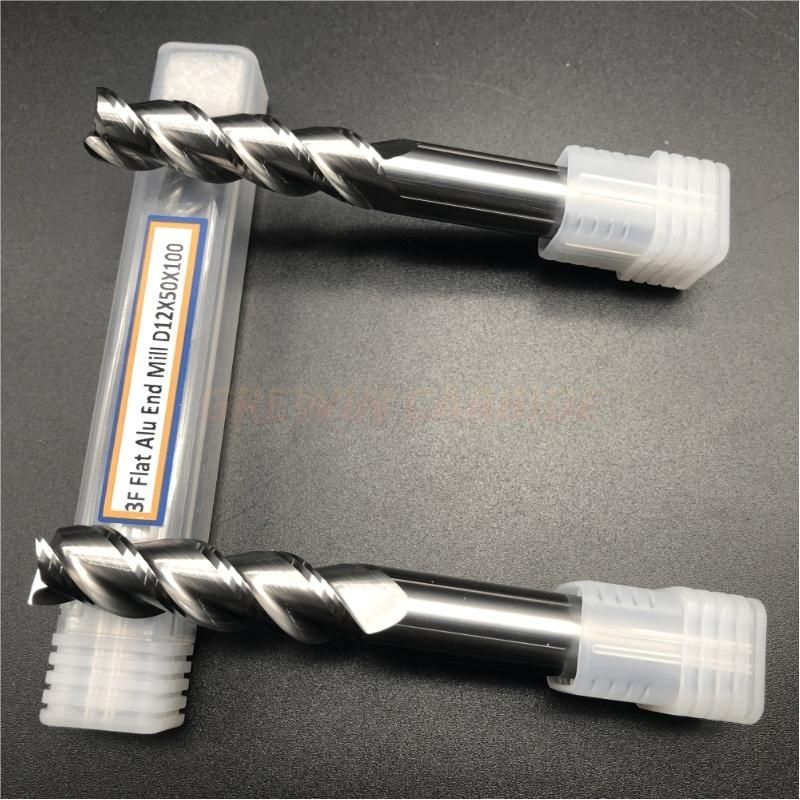

finished carbide end mills in Sub-Micron Grain Size  with 3 Flutes for Cutting Aluminum Workpiece show:









Any quantity is always welcomed, please write us or call us freely!
