• Model NO.：ZHTF-1500I
• HS Code：8455229090
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. ZHTF-1500I HS Code 8455229090 Production Capacity 100 Sets Per Year

Product Description

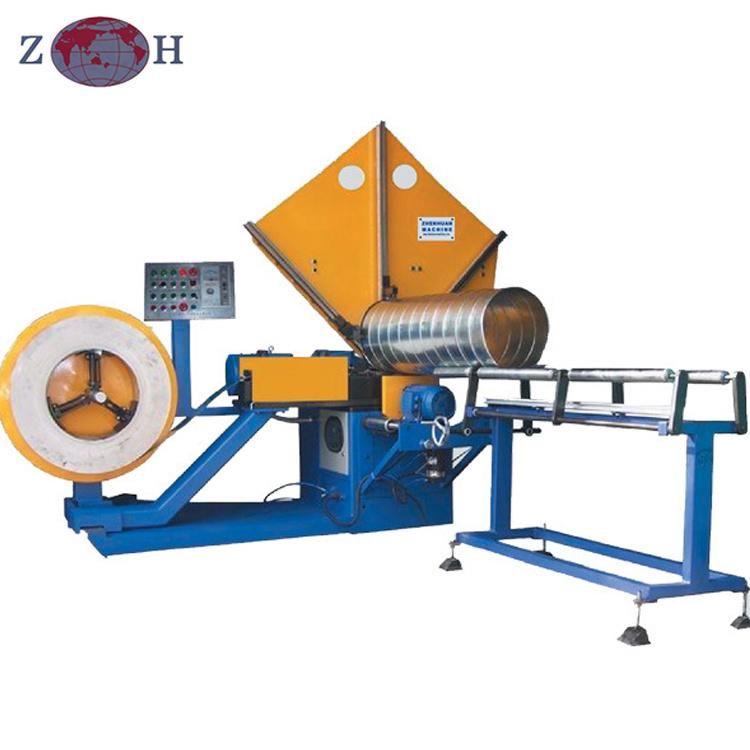

ZHTF-1500I Spiral Tubeformer


 I Description of ZHTF-1500I spiral tubeformer:
This machine is also called as spiral tube forming machines, duct forming machine, HVAC duct machine, for producing round air duct for various uses, such as for HVAC round ducts, oval ducts, chimney flue, etc.

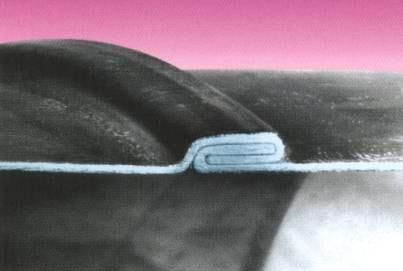

(Locking type)

II Main advantages of ZHTF-1500I spiral tubeformer:
-- Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower.

-- Large diameter range
-- High speed synchrony flying cutting system.
-- PLC control, convenient operation
-- Light and small, suitable for site work.

III Main technical data of ZHTF-1500I spiral tubeformer:

Item	Data
Suitable spiral duct diameter range	85~1500mm
Spiral duct length	No limited
Suitable material	Aluminum, stainless steel, galvanized steel, PPGI
Suitable material thickness	0.4-1.0mm (can be specially ordered)
Suitable material width	137-140mm
Material linear feeding speed	1-38m/min
Main driving motor power	5.5kW
Cutting motor power	2.2kW
Compressed air needed	0.8MPa
Control system	PLC + HMI
Machine dimension	3500 x 2800 x 2580mm
Machine weight	About 2500kg

Our factory has more than 15 years experience on spiral tubeformer machines in China. We can provide you good quality spiral tubeformer as well as good after-sale services.

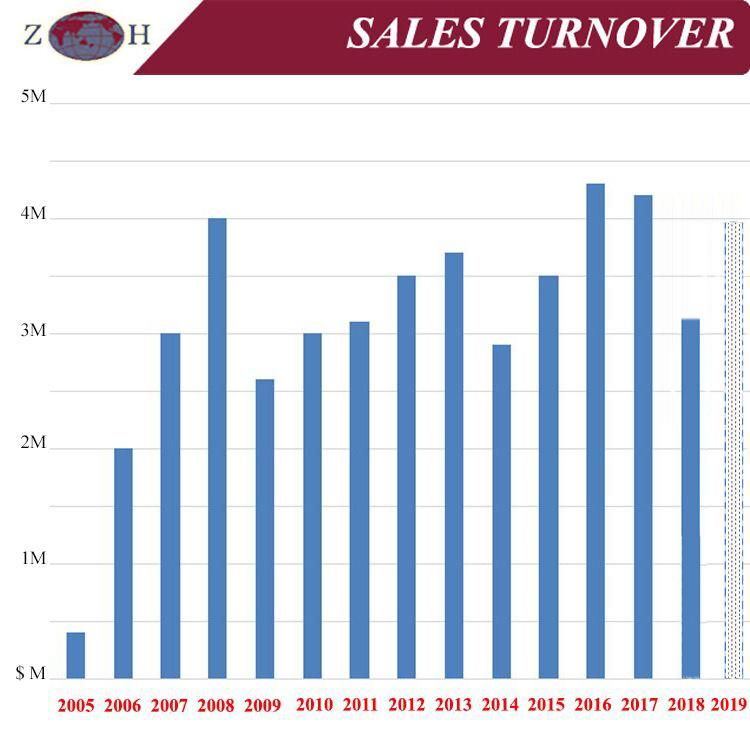

Sales Turnover


Certifications
