Decoiler Straightener Roll Feeder for Metal Punching Machine (Mac4-1300)

GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.
  • After-sales Service：One Year Warranty
  • Type：Balance Roller Straightening Machine
  • Usage：Sheet, Wire, Pipe, H Beam Flange, Bar
  • Voltage：240V
  • Automatic Grade：Automatic
  • Principle：Small Deformation

Base Info

  • Model NO.：MAC4-1300
  • Certification：TUV
  • Warranty：12 Months
  • Customized：Customized
  • Condition：New
  • Stock Width(mm)：70-1300
  • Stock Thickness(mm)：0.6-6.0
  • Work Rollers：Up6,Down5
  • Max.Coil Weight(Kg)：10000
  • Main Servo：Yaskawa
  • Transport Package：Wooden Box or Vacuum Packing
  • Specification：3800*3300*2750mm
  • Trademark：RUIHUI
  • Origin：China, Dongguan
  • Production Capacity：30 Sets Per Month

Description

Overview

Product Description

Three-in-one feeder mechanical characteristics

1. The three-in-one feeder adopts computer NC control system, which is more user-friendly. It is suitable for feeding and correcting all kinds of metal sheets. It is suitable for a wide range of materials from 0.3-6.0 thick, designed for space saving and easy operation.

2. three-in-one feeder is suitable for continuous stamping processing of various hardware, electronics, electrical appliances, * and automotive parts, feeding correction, accurate and durable; material roll device, using oil pressure expansion, material is sent to the die, no need for labor Feeding, saving manpower and safety.

3. The three-in-one feeder adopts imported Japanese servo motor, electrical box electronic parts and controller, etc. The product has low failure rate and long service life.

4. three-in-one feeder simple structure design, maintenance, management are simple, and enhance the safety of the operator's work; roller chrome, high precision, very durable.

5. The three-in-one feeder can set the feeding length arbitrarily, the operation is easy, the safety and stability are high, and the front end of the coil is flattened to facilitate the material to enter the roller. The motor drives the press arm device to keep the material from loose.

Detailed Photos



Decoiler Straightener Roll Feeder for Metal Punching Machine (Mac4-1300)

Product Parameters

upper 4/lower 3Feed Roll number(set)11111Main MotorAC5.5AC7.5AC7.5AC11.0AC11.0Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilcHydrauilcReel Motor(kw)2.22.23.73.73.7Power(v)3 Phase 220V/380V/50HZOperating Air(Mpa)0.490.490.490.490.49
Stock Thickness
(mm)0.6~1.3400600800100013002.02.32.511702.89339333.27147147144.04574574574574.53613613613613615.02932932932932936.0203203203203203

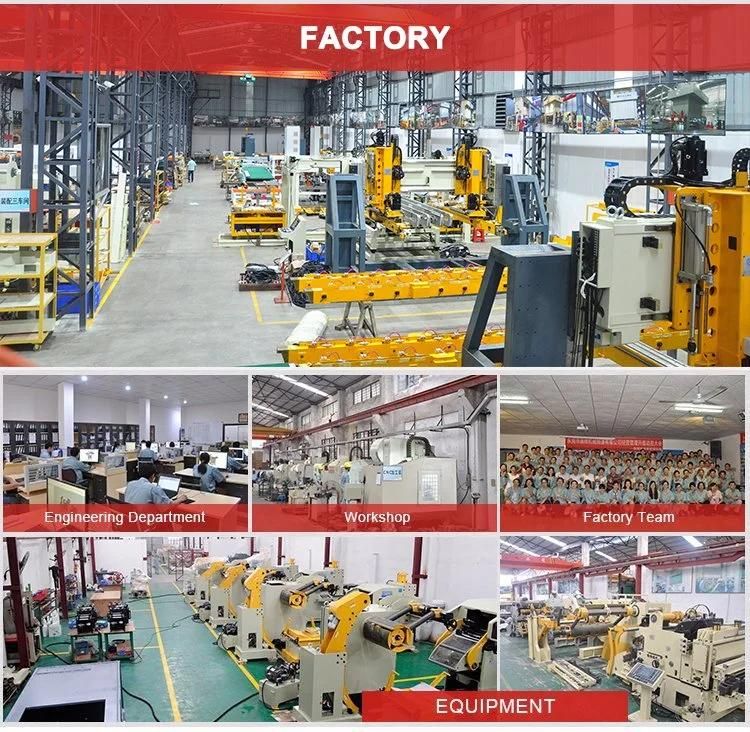

Company Profile

Decoiler Straightener Roll Feeder for Metal Punching Machine (Mac4-1300)

Decoiler Straightener Roll Feeder for Metal Punching Machine (Mac4-1300)
Decoiler Straightener Roll Feeder for Metal Punching Machine (Mac4-1300)
Decoiler Straightener Roll Feeder for Metal Punching Machine (Mac4-1300)
Decoiler Straightener Roll Feeder for Metal Punching Machine (Mac4-1300)

After Sales Service

OUR SERVICE:
1.  Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
