High Speed CNC 5 Axis 3D Steel Wire Bending Machine
Xingtai Judu Technology Co., Ltd.- Automatic Grade：Automatic
- Warranty：1 Year
Base Info
- Model NO.：ZD408
- Certification：ISO, CE
- Type：Wire Bending and Forming Machine
- Product Name：High Speed CNC 5 Axis 3D Steel Wire Bending machine
- Function：Making 3D & 2D Angle Shapes
- Control Type：CNC Sero
- Voltage：380V,Customized
- Power：12kw
- Transport Package：Export Wooden Package
- Specification：zd408 steel wire bending machine
- Trademark：GREATCITY
- Origin：Hebei China
- HS Code：8463300000
- Production Capacity：30 Set Per Month
- Package size per unit product：2500.00cm * 1500.00cm * 1950.00cm
- Gross weight per unit product：2500.000kg
Description
Model
ZD-3D-408
Axis
5
Wire diameter
4-8mm
wire-feeding axis servo motor
4.5kw
applicable wire
Round wire,flat bar, square wire
(any material)
Twisting axis servo motor
3.5kw
Feeding speed max.
100(m/min)
Forward-backward axis servo motor
1.0(kw)
Cutting axis servo motor
1.0kw
Angle-bending axis servo motor
2.0kw
Process
Lifting up and down for internal and outernal die
Feeding accuracy
±0.1mm
Production capacity
20-24 pieces/min,(200*200mm ,square)
Operation system
in Chinese and English
(upload and download)
voltage
380V50HZ/60HZ3 Phases
weight
2800kg
dimension
2600×1200×2000

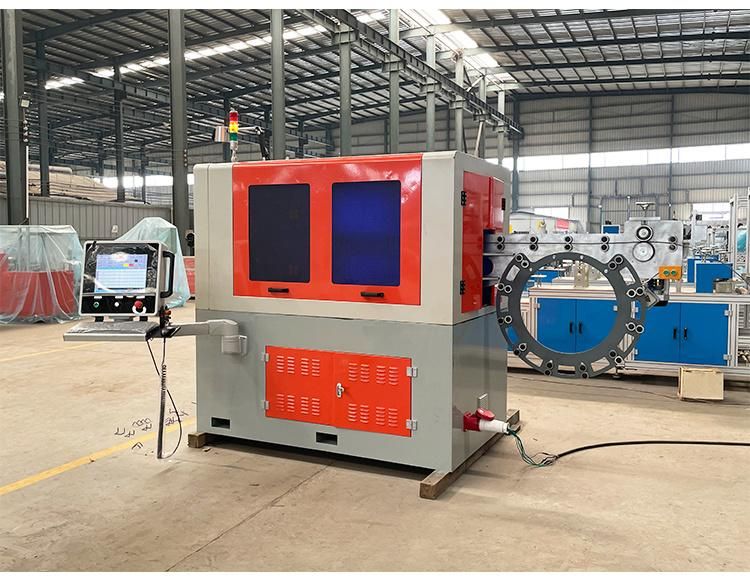

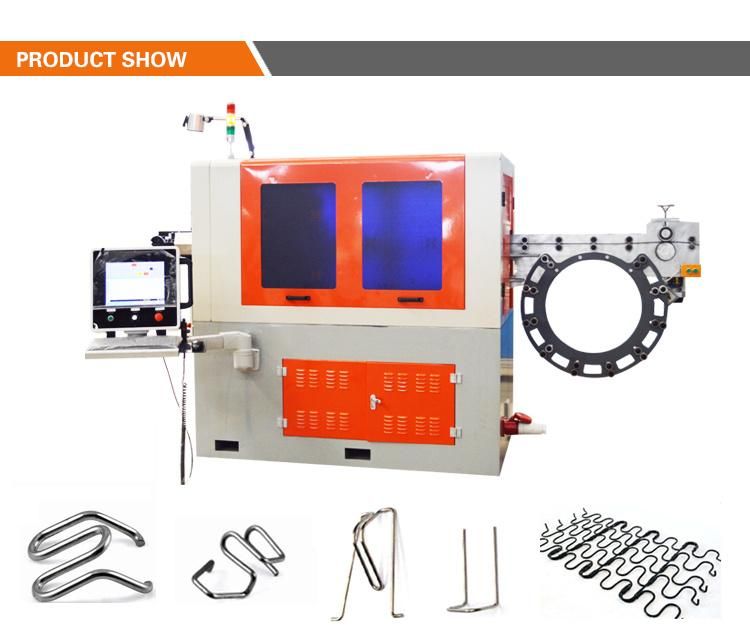

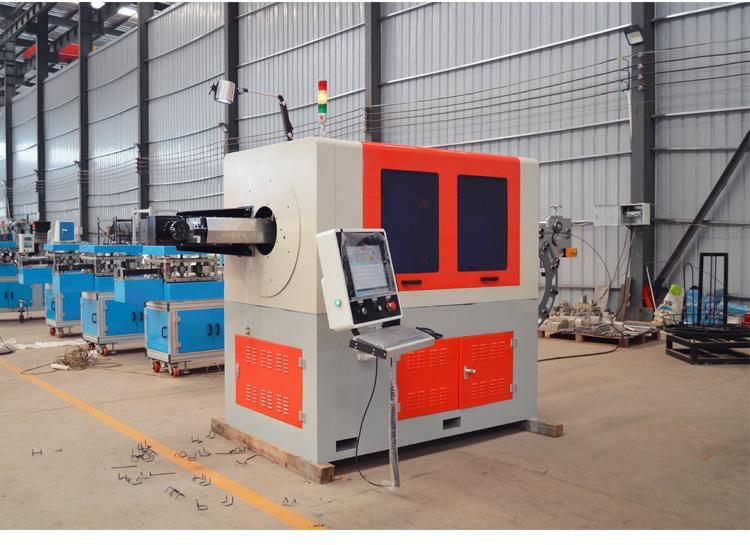

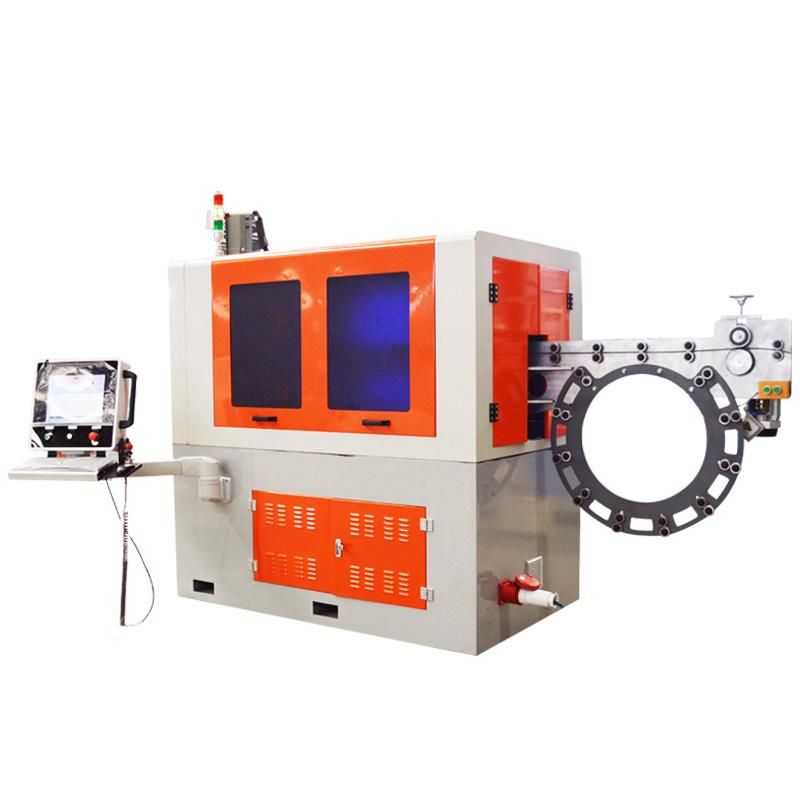

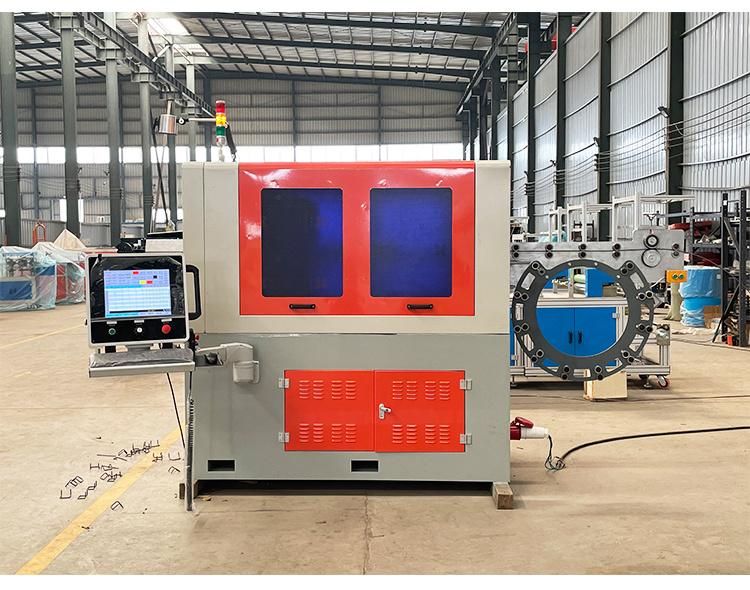

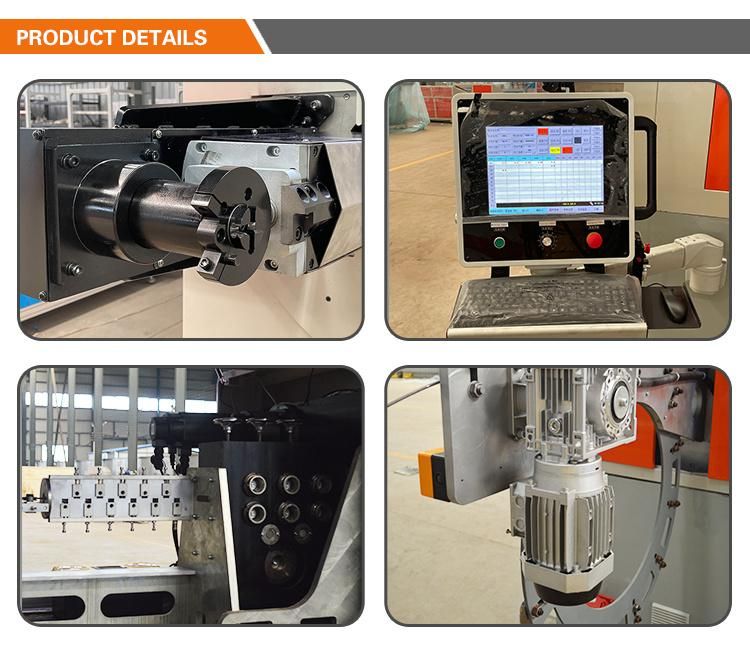

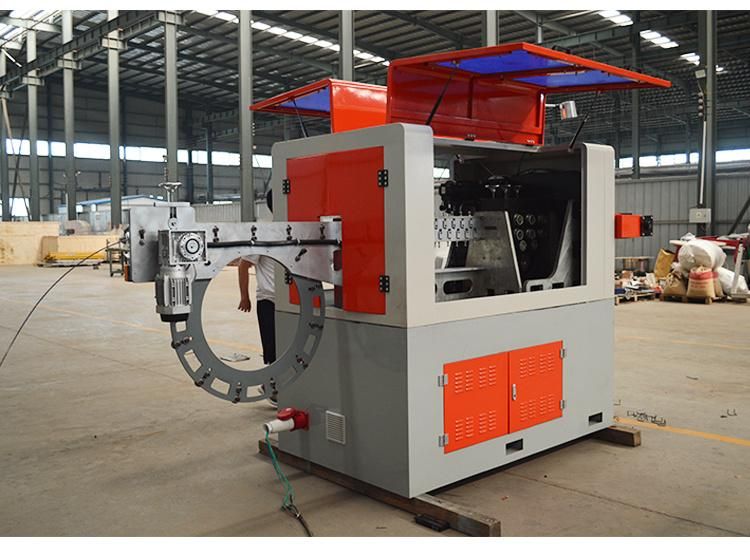

More detaild show for this model 3d wire bending machine:
