Powder Coating Processing Equipment Grinder Line Grinding System
Yantai Jatchen Powder Coating Processing Equipment Co., Ltd.- Industry：Powder Coating Line
- Transport Package：Pallet, Wooden Box
- Specification：ACM30
- Trademark：Jatchen
- Origin：China
Base Info
- Model NO.：production line
- HS Code：84742010
- Production Capacity：120 Pieces,Year
Description
Dimension
(m x m x m)CM-300 300 11 1.5 PLC 2.3x1.1x3 CM-600 600 22 1.5 PLC 2.9x1.5x4 CM-1000 1000 37 1.5 PLC 3.1x1.6x4 CM-2000 2000 55 2.2 PLC 3.6x1.8x4.6
D. Cooling Band
E. Grinding System
3. Company Introduction
Yantai Jatchen Powder Coating Processing Equipment Co., Ltd, established in 2011, which specialized in researching and manufacturing of powder coating processing equipment with strong technical team and rich experience. We passed CE certification approval and ATEX explosion resistant test, etc. international standards, "Quality first, Credit first and customer first" is our eternal pursuit. We are committed to provide commissioning and installation support, formulation guidance and 24-hour after-sale service.
Our products have been successfully exported to many countries and regions. like America, Brazil, Canada, India, Turkey, etc. We sincerely welcome you to our company for business visit. we'll try our best to provide the best equipment and solutions to our customers.

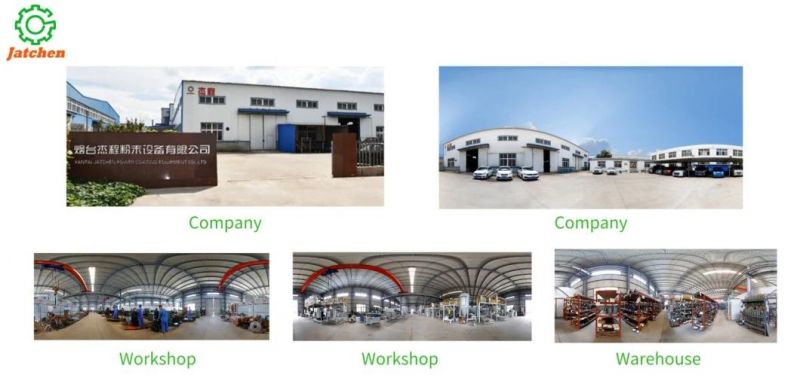

4. Workshop View:
We make machining part by ourselves to make sure the timing and quality of our equipment.
6. Why choose us?
"Leading design" + "Excellent performance" + "Best service" = Jatchen's advantages
6.1 Leading design
The richest experienced R&D team, more than 20 years only keeping eyes on powder coating industry.
6.2 Excellent performance
The steep particle distribution result, the biggest savings of materials and labor for your clients.
6.3 Best Service
6.3.1 Online Technical Support
We provide layout design, excellent mechanical engineer, excellent electrician etc. Based on client's requirement,
6.3.2 On-site Training support
We provide support training, including installation, commissioning etc.
6.3.3 Long-term Maintenance support
We offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes.
6.3.4 Spare Parts Replacement and Repair support
Providing spare parts for our all powder coating processing equipment with good material and high precision timely.

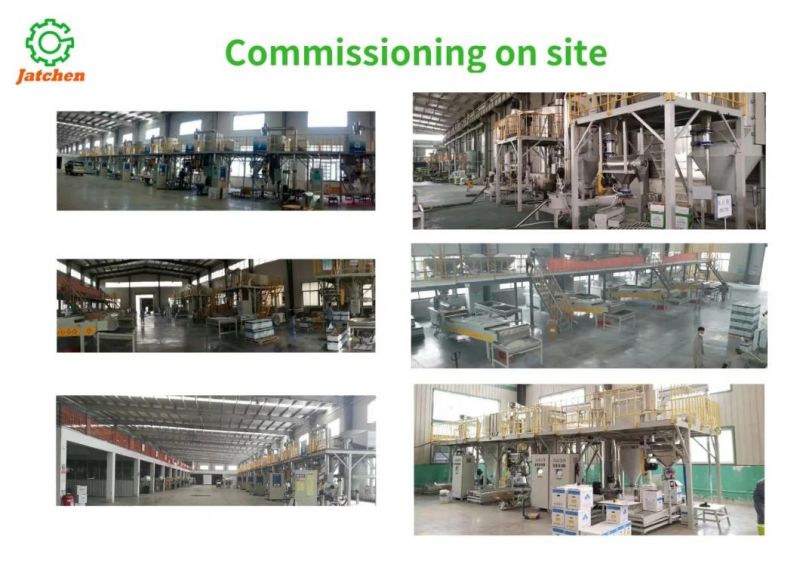

7. Successful Cases:
(m x m x m)
| Model | Thoughput (Kg/h) | Screw Diameter (mm) | Screw Length (L/D) | Main Motor (KW) | Screw Speed (rpm) | Feeder Motor (KW) | Heating/Cooling Zone | Dimension (m*m*m) |
| TSK40H | 150-200 | 40 | 16D | 18.5 | 600 | 0.55 | 3/1 | 2.2*0.6*1.7 |
| TSK55A/55H | 300 | 55 | 16D | 30 | 750/600 | 1.1 | 3/1 | 2.8*0.8*1.8 |
| TSK55B/TSK55BH | 400 | 55 | 16D | 37 | 750/600 | 1.1 | 3/1 | 2.8*0.8*1.8 |
| TSK65A/TSK65AH | 500 | 65 | 16D | 45 | 700/600 | 1.5 | 3/1 | 3.3*0.8*2.3 |
| TSK65B/TSK65BH | 600 | 65 | 16D | 55 | 700/600 | 1.5 | 3/1 | 3.3*0.8*2.3 |
| TSK75/75H | 600/800 | 75 | 16D | 55/75 | 600/800 | 1.5 | 3/1 | 3.6*1.0*2.8 |
| TSK85/85H | 1000/1500 | 85 | 16D | 90/110 | 600/800 | 2.2 | 3/1 | 3.6*1.0*2.8 |
| Model | Throughput (kg/h) | Roll Diameter (mm) | Bandwidth (mm) | Band length (mm) | Power (KW) | Cooling mode | Dimension (m x m x m) |
| YPJ600 | 120 | 190 | 600 | 3500 | 1.1 | cooling water/Air | 4.0x0.8x1.2 |
| YPJ800A/800AG | 300 | 245/325 | 800 | 4500 | 1.5 | cooling water/Air | 5.5x1.1x0.9 |
| YPJ1000A/1000AG | 500 | 245/325 | 1000 | 5000 | 2.2 | cooling water/Air | 5.8x1.1x1.0 |
| Model | Throughput (Kg/h) | Main Motor (KW) | Classifier Motor (KW) | Classifier Speed (rpm) | Fan Motor (KW) | Air Flow (m3/h) |
| ACM02 | 0-5 | 2.2 | 2.2 | Same as main motor speed | 1.6 | 100 |
| ACM04 | 10-15 | 3 | 2.2 | 0-2830 | 0.4 | 150 |
| ACM05 | 50 | 4 | 1.5 | 2840 | 5.5 | 800 |
| ACM20 | 300 | 15 | 3 | 2900 | 7.5 | 1000 |
| ACM30 | 500 | 22 | 4 | 2900 | 15 | 2000 |
| ACM40 | 800 | 30 | 5.5 | 2900 | 30 | 3000 |
| ACM50 | 1000 | 37 | 7.5 | 2900 | 37 | 5000 |
Yantai Jatchen Powder Coating Processing Equipment Co., Ltd, established in 2011, which specialized in researching and manufacturing of powder coating processing equipment with strong technical team and rich experience. We passed CE certification approval and ATEX explosion resistant test, etc. international standards, "Quality first, Credit first and customer first" is our eternal pursuit. We are committed to provide commissioning and installation support, formulation guidance and 24-hour after-sale service.
Our products have been successfully exported to many countries and regions. like America, Brazil, Canada, India, Turkey, etc. We sincerely welcome you to our company for business visit. we'll try our best to provide the best equipment and solutions to our customers.
4. Workshop View:
We make machining part by ourselves to make sure the timing and quality of our equipment.
- With highly advanced & precise machining center
- With well-trained & experienced workers
- With strict quality control system
- With EHS & 6S management system
5. Patent & Qualification:
6. Why choose us?
"Leading design" + "Excellent performance" + "Best service" = Jatchen's advantages
6.1 Leading design
The richest experienced R&D team, more than 20 years only keeping eyes on powder coating industry.
6.2 Excellent performance
The steep particle distribution result, the biggest savings of materials and labor for your clients.
6.3 Best Service
6.3.1 Online Technical Support
We provide layout design, excellent mechanical engineer, excellent electrician etc. Based on client's requirement,
6.3.2 On-site Training support
We provide support training, including installation, commissioning etc.
6.3.3 Long-term Maintenance support
We offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes.
6.3.4 Spare Parts Replacement and Repair support
Providing spare parts for our all powder coating processing equipment with good material and high precision timely.
7. Successful Cases:
