• Model NO.：70DF
• Output Allowable Redial Load (Kgf)：218
• Output Allowable Axial Load (Kgf)：298
• Input Allowable Redial Load (Kgf)：146
• Input Allowable Bending Moment (Kgf)：105
• Indexing Accuracy (Sec.)：+30 or -30
• Weight (Kg)：20
• Guarantee Period：One Year
• Usage：for Automation Equipment
• Transport Package：Box
• Specification：70DF
• Trademark：HONE PAN
• Origin：China
• HS Code：84834090
• Production Capacity：20000 Sets , Year

Basic Info.

Model NO. 70DF Output Allowable Redial Load (Kgf) 218 Output Allowable Axial Load (Kgf) 298 Input Allowable Redial Load (Kgf) 146 Input Allowable Bending Moment (Kgf) 105 Indexing Accuracy (Sec.) +30 or -30 Weight (Kg) 20 Guarantee Period One Year Usage for Automation Equipment Transport Package Box Specification 70DF Trademark HONE PAN Origin China HS Code 84834090 Production Capacity 20000 Sets / Year

Product Description

1. China High Precision Cam Indexer / Cam Indexing Drive (DF Series) Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

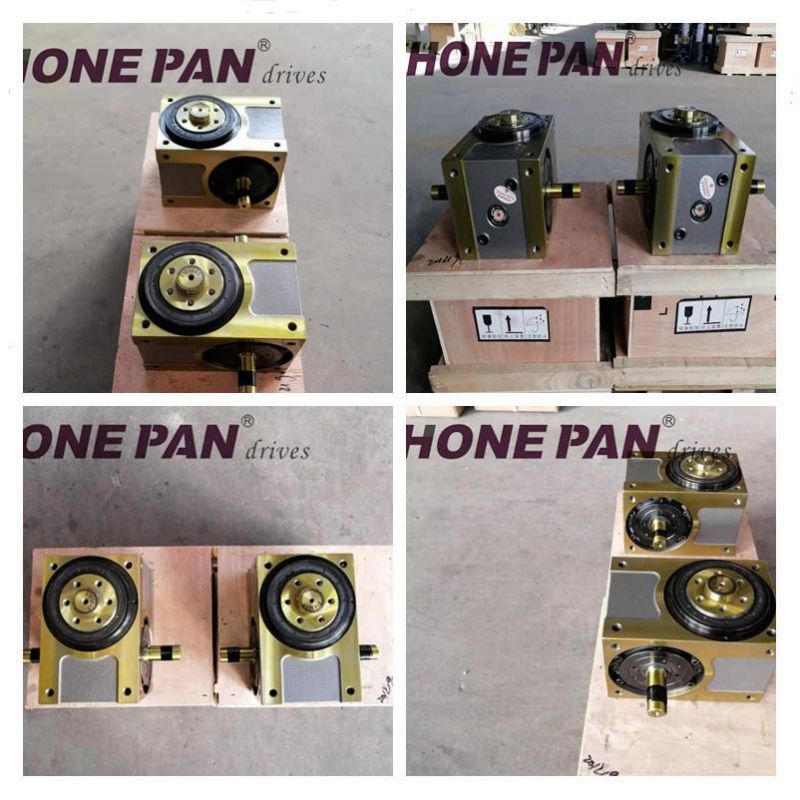

China High Precision Cam Indexer / Cam Indexing Drive (DF Series) introduction:
The end of output is flange. It is suitable for all kinds of dial machines.

China High Precision Cam Indexer / Cam Indexing Drive  (DF Series) includes: 38DF, 45DF, 60DF, 63DF, 70DF, 80DF, 100DF, 110DF, 125DF, 140DF, 150DF, 180DF, 200DF, 250DF, 350DF. .

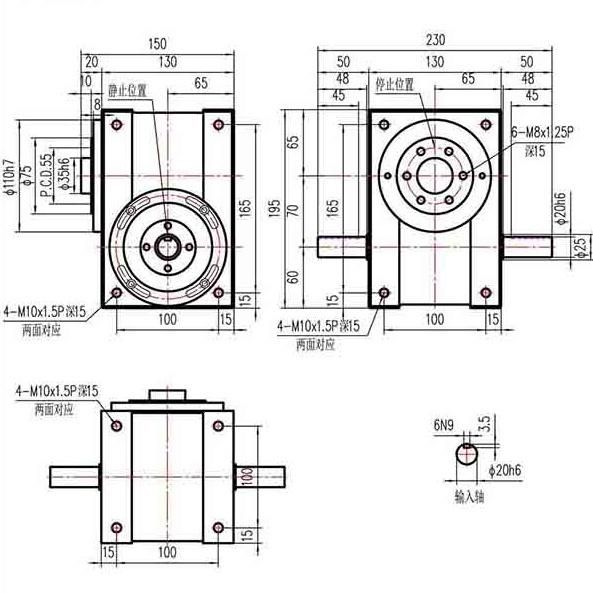

3.Specification of China High Precision Cam Indexer / Cam Indexing Drive 70DF :




Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	218
Output allowable axial load	C2	kgf	298
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	146
Input maximum bending moment	C4	Kgf	105
Input maximum torque	C5	Kgf-m	9
GD2 of input shaft (note 1)	C6	Kgf-m2	6×10-3
Indexing accuracy		Sec.	±30
Weight		Kg	20

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.

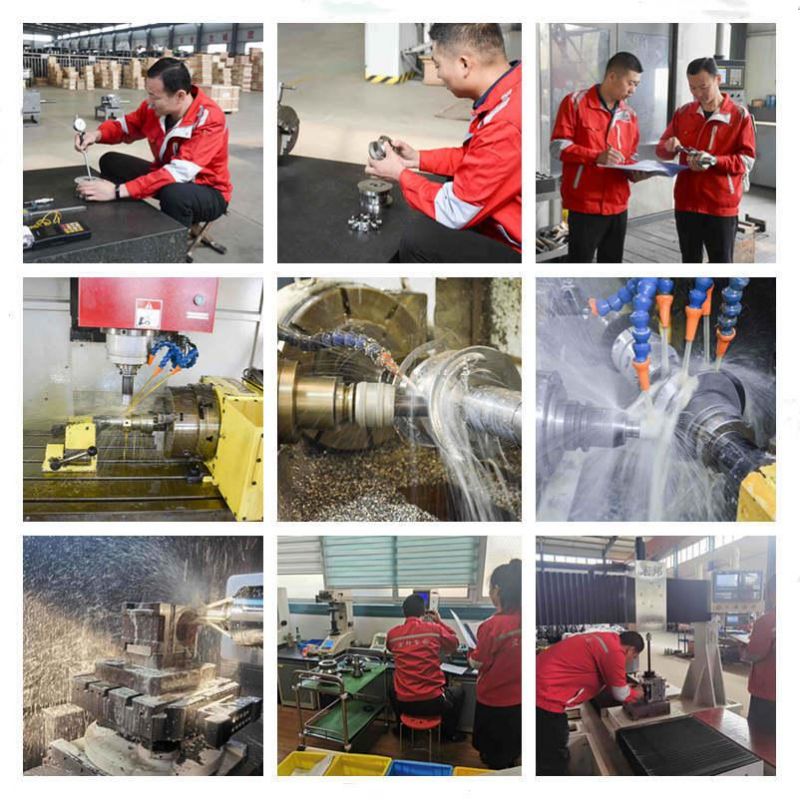

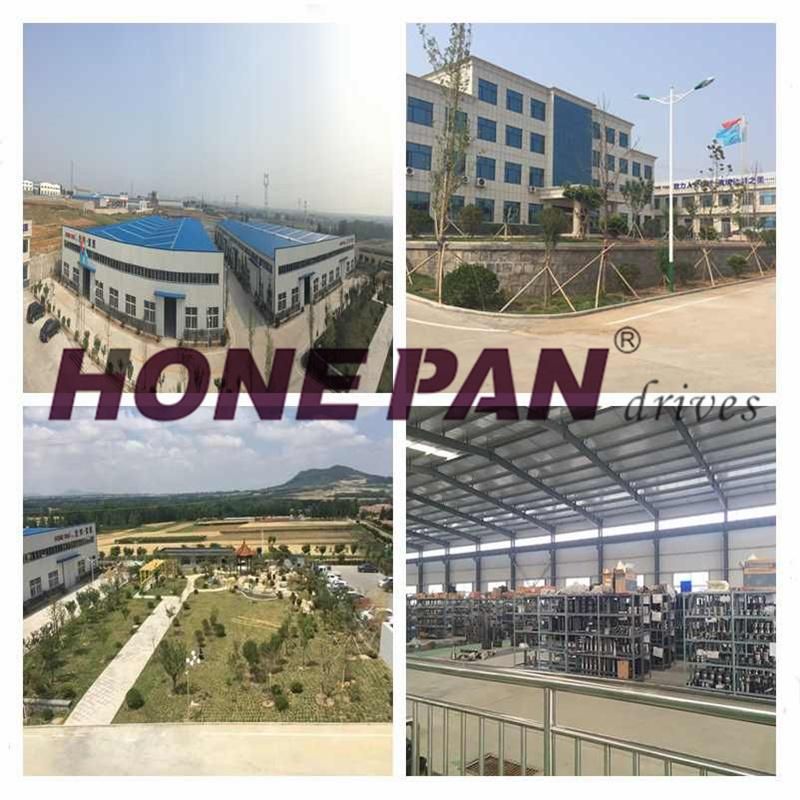

4. Company, Packaging & Shipment & Quality Control & Certificates


5. FAQ:

1) Customize prodcuts are available ?
     Yes, Customize products are available. We could design and produce products according to your  requirements or darwings. You just need to tell us your detailed requirements and our technicists will design and provide materials for your confimation. If all is ok, the production will be arranged.

2)  What's your payment terms?
    For small order, considering the value is not large, the payment terms are 100% T/T in advance.
    For large order, we could negotiate.

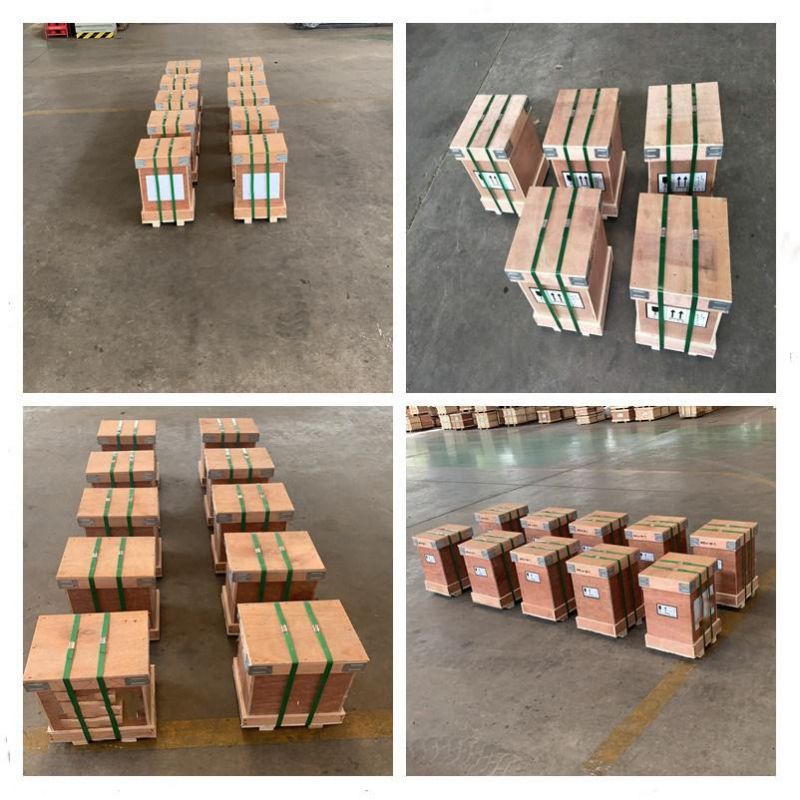

3) how about the packaging and shipment?
    Packaging : in box (wooden case).
    Shipment : according to customer's instruction.

4) How about the lead time ?
   For common model, the lead time is about 15 workdays;
   For customize model, the lead time is longer, about 30 workdays.

5) How about the quarantee period ?
    In generall, the quarantee period - one year for assembly unit from the date of sale .
