Lkx220 CNC 2 Axis Compression Coiling Spring Making Machine
Guang Dong LI KE XING Spring Machinery Technology Co., Ltd.- Control Type:Automatic
- Axis Count:2 Axis
- Warranty:1 Year
- Servo Motro:SANYO
- Certification:CE ISO 9001:2015
- Wire Dia.:0.2-1.2mm
Base Info
- Automation:Automatically
- Transport Package:Wooden Case
- Specification:1200*1200*1700MM
- Trademark:LIKEXING
- Origin:Made in China
- HS Code:84633000
- Production Capacity:500sets,Year
Description
Basic Info.
Automation Automatically Transport Package Wooden Case Specification 1200*1200*1700MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/YearProduct Description
PRODUCT DESCRIPTION

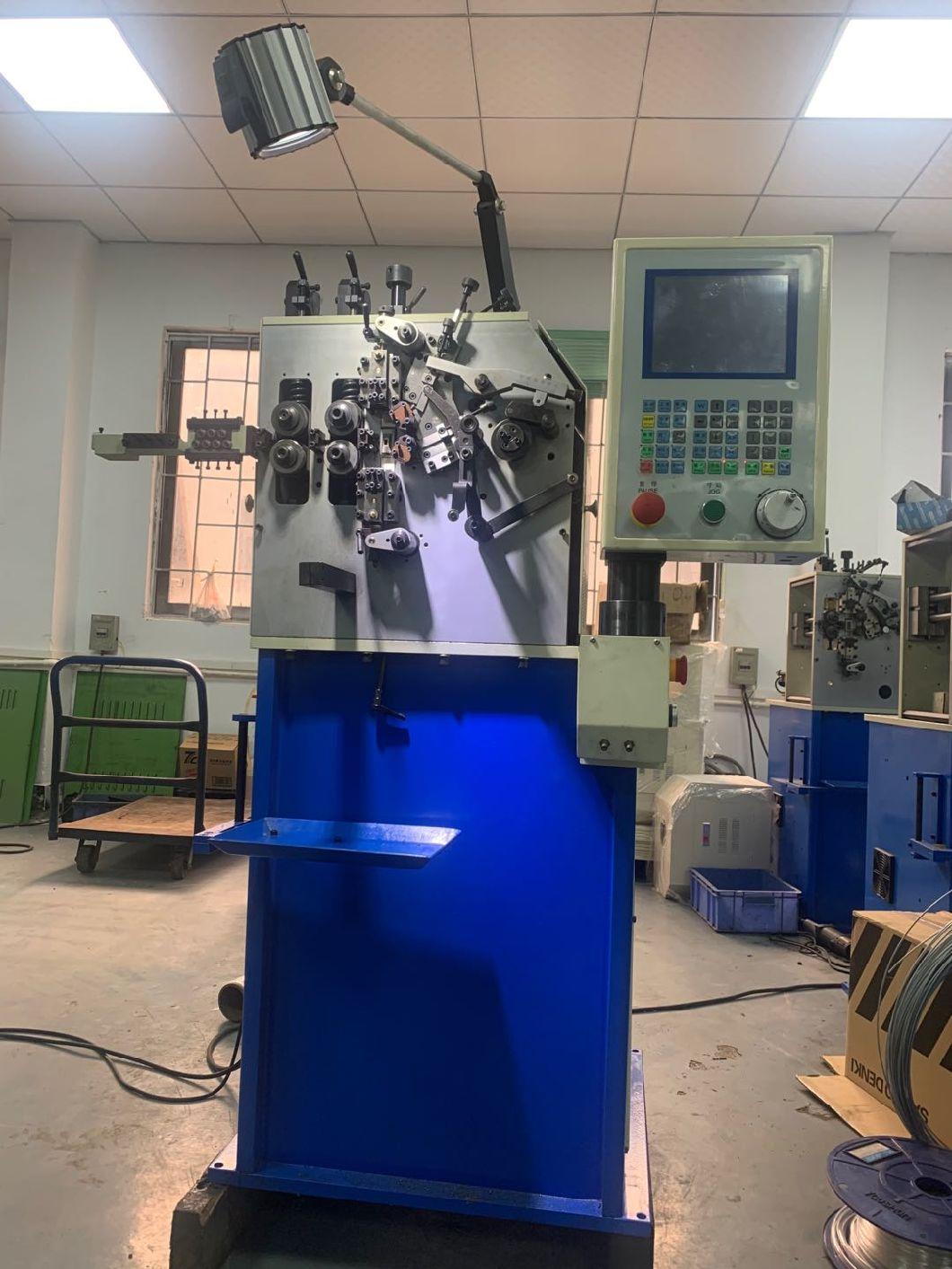

LKX220 Computer Compressing Spring Machine is equipped with imported Japanese Servo Motor, including cam axis and feeder axis.High synchronization accuracy, Power-full and precise in wire feeding.
Suitable for producing Compression spring, torsion spring ect. parts.
8inch digital touch screen with touch buttons, easy to use.
In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.
Can reduce or increase the production capacity at any time.
TECHNICAL PARAMETER
Model | LKX220 |
Wire diameter (mm) | Ø0.5-2.0 |
Axis Count | 2 Axis |
Max feeding Length | unlimited |
Servo motor of wire feed (kw) | 2 |
Servo motor of cam (kw) | 2 |
The Fastest Speed | 250pcs/min |
The Feeding Wire Speed | 800m/min |
Max Outside Diameter | 40mm |
Machine size(mm) | 1000×1000×1600 |
Machine Weight (Kg) | 780 |
Power | 200V 3-Phase |
