• Model NO.：Q35Y-40
• Max Punch Diameter：40mm
• Weight：9200kg
• Main Motor：11kw
• Max Cutting Length：650mm

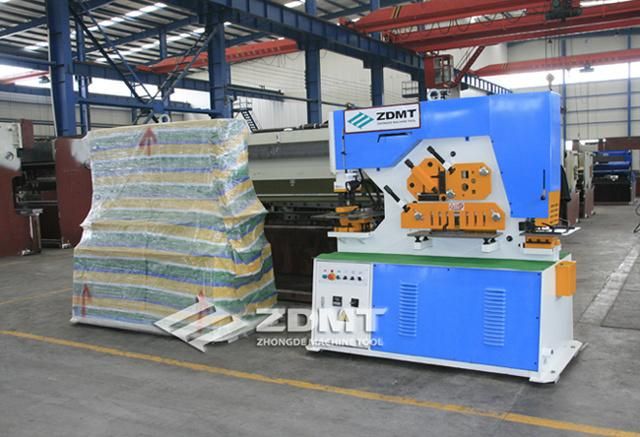

• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China(Mainland)
• HS Code：84624900
• Production Capacity：100units,Month

Basic Info.

Model NO. Q35Y-40 Max Punch Diameter 40mm Weight 9200kg Main Motor 11kw Max Cutting Length 650mm Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) HS Code 84624900 Production Capacity 100units/Month

Product Description

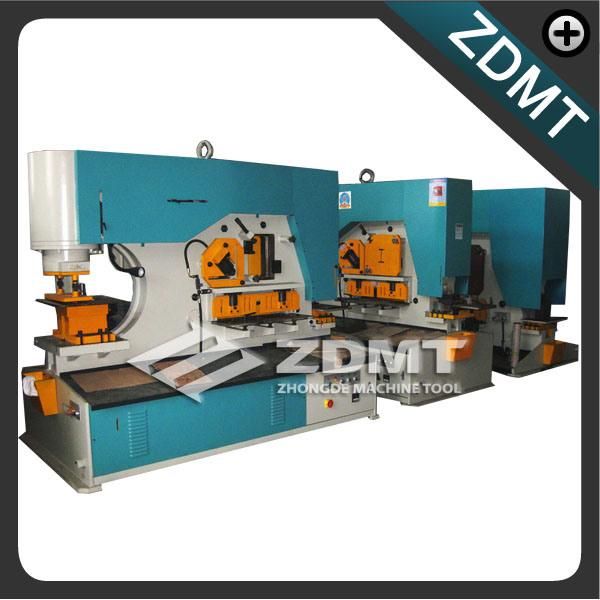

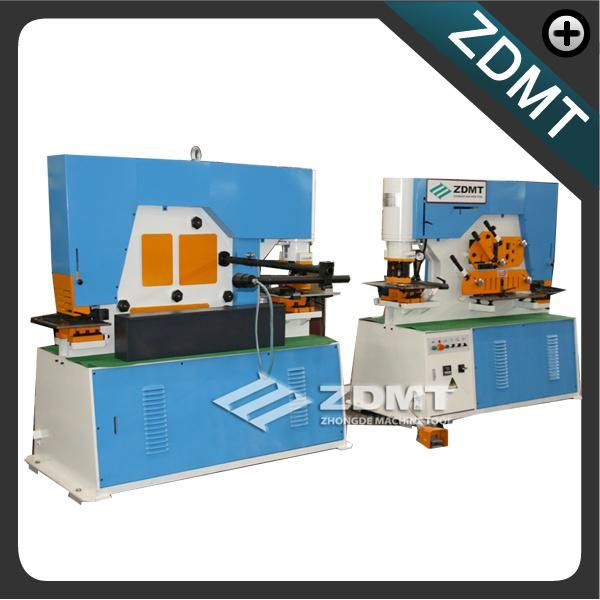

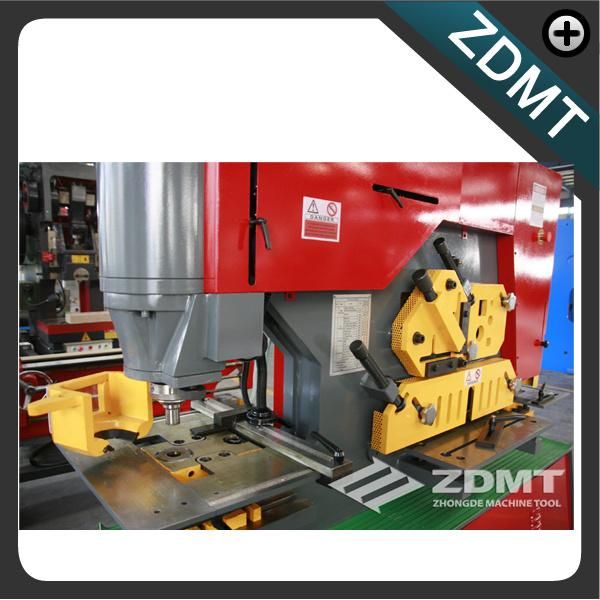

Q35Y-40 Hydrulic Ironworkers machine for punch and shear

2. Basic Parameters of Machine

Model	Q35Y-40
Working Pressure(KN)	180
Max Cutting Thickness(mm)	40
Max Cutting Length(mm)	650
Tensile Strength of Sheet Metal(N/mm2)	≤450
Shear Angle(deg)	8
Stroke of Ram(mm)	80
Stroke Times(cycles/min)	8
Depth of Throat(mm)	560
Max dia of punching (mm)	40
Main Motor(KW)	11
Length of Machine (mm)	2860
Width of Machine (mm)	1260
Height of Machine (mm)	2420
Weight of Machine (Kg)	9200

Types of profiled steel for shearing:


Type   Size ( mm )	Q35Y-40
Round steel	70
Square steel	60×60
90° shearing of equal-angle steel	200×200×18
45° shearing of equal-angle steel	100×100×10
90° Shearing of T-bar	140×70×12
H beam steel	300×126×11
Channel steel	300×89×11.5
