Wire Diameter 0.9-6.0mm Premium Quality Price Steel Nail Making Machine
Hangzhou Candid I/E Corp. Ltd.- After-sales Service：Local Conmissioning
- Warranty：1 Year
- Wire Diameter：0.9-6.0mm
- Nail Length：9-180mm
- Voltage：380V,415V,440V
- Capacity：150-400PCS,Min
Base Info
- Model NO.：Z94
- Machine Weight：2000kg
- Power：1.5-6kw
- Transport Package：Wooden Case
- Specification：1700*1200*1200mm
- Trademark：CANDID
- Origin：China
- HS Code：84633000
- Production Capacity：100 Sets, Month
Description
Model
Item
Z94-1.6NC
Z94-2.8NC
Z94-3.4NC
Z94-4.5NC
Z94-5NC
Z94-6NC
Range of nail Dia.
0.9-1.6mm
1.2-2.8mm
1.8-3.4mm
2.8-4.5mm
3.0-5.5mm
4.1-6.0mm
Range of nail Length
9-25mm
16-50mm
30-70mm
50-105mm
70-150mm
100-180mm
Output
450pcs/min
350pcs/min
310 pcs/min
260pcs/min
200pcs/min
160pcs/min
Motor power
1.5kw
2.2kw
3kw
4kw
5.5kw
11kw
Weight
500kg
900 kg
1200kg
1800 kg
2000kg
6500kg
Dimension(mm)
1200*900*900
1700*1200*1200
2000*1250*1250
2350*1500*1350
2700*1500*1400
3600*2050*2140

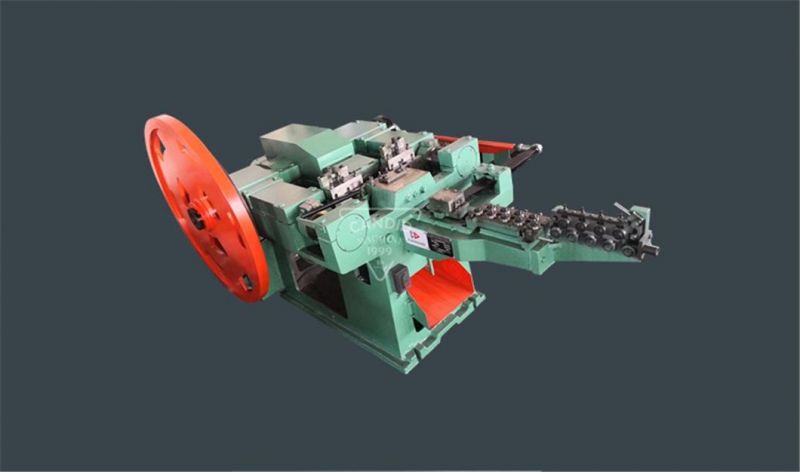

Product Show

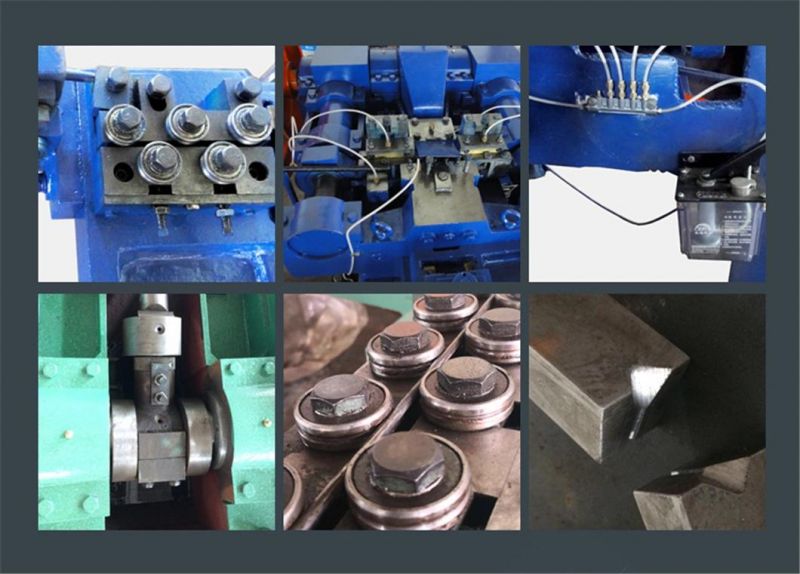

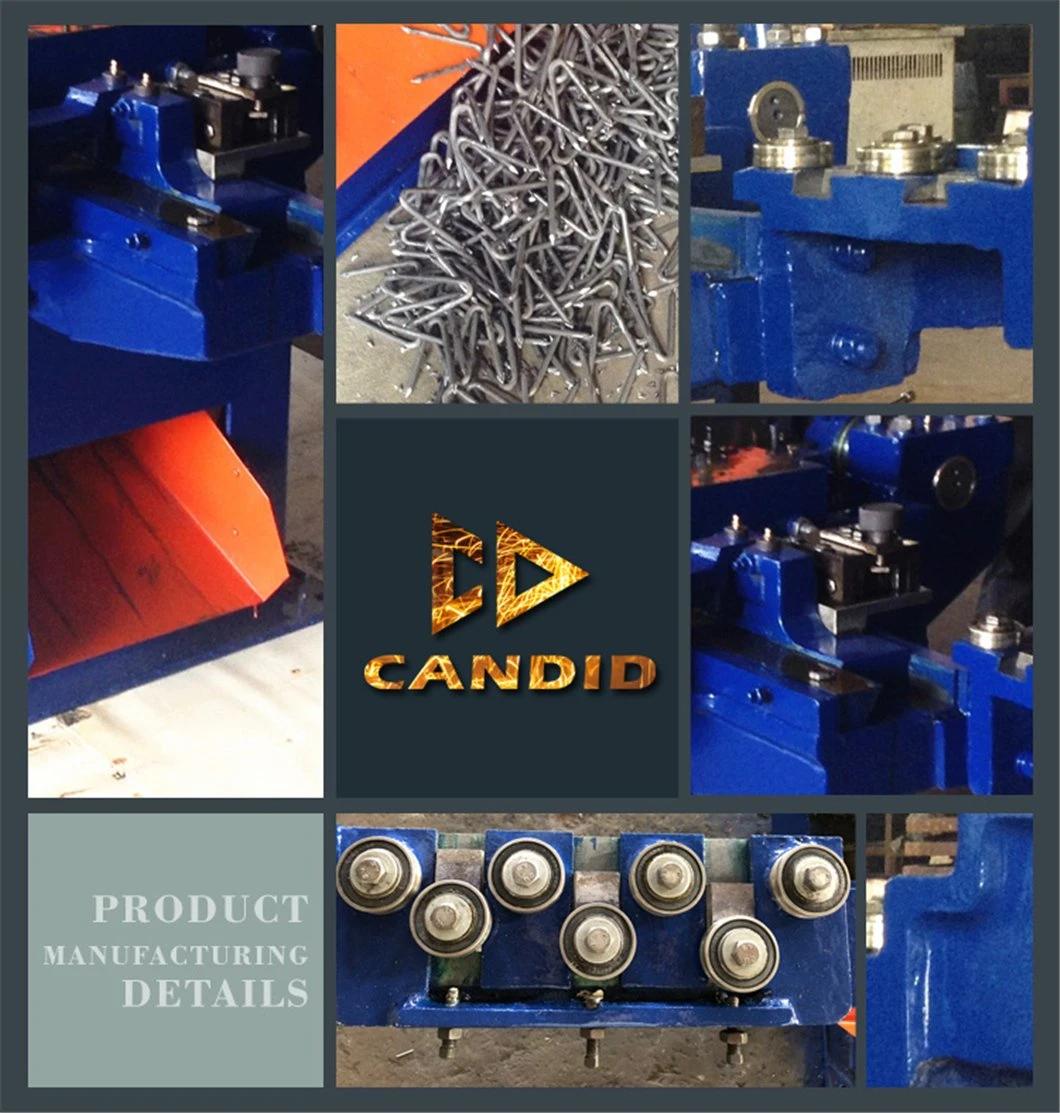

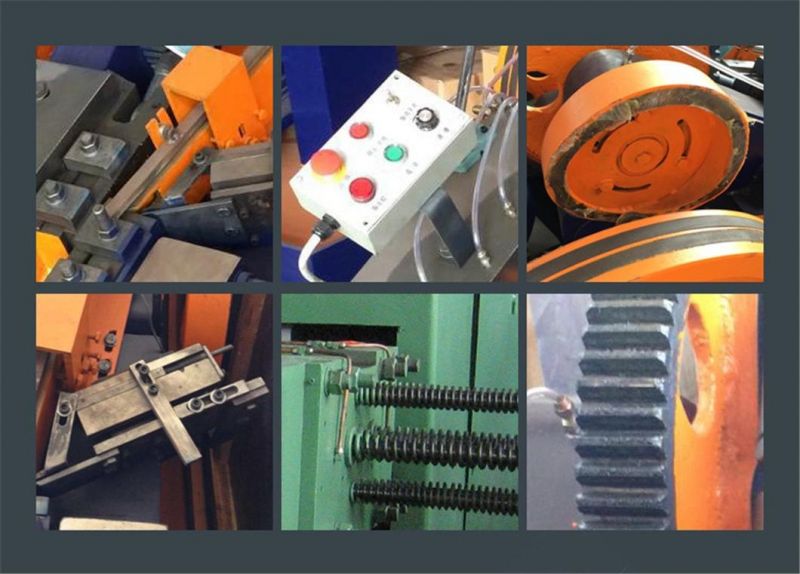

Details

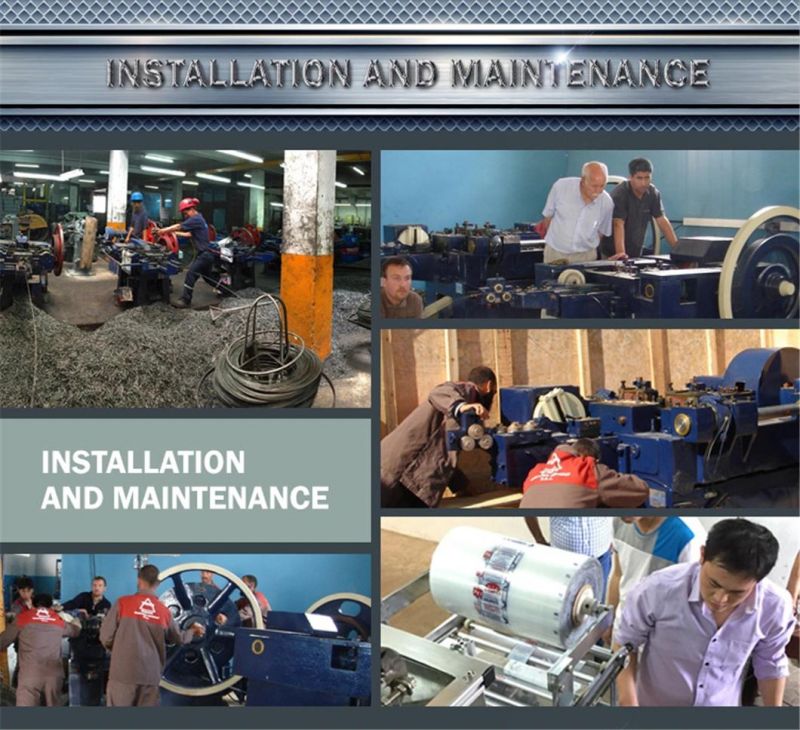

Installation and maintenance
Package transportation

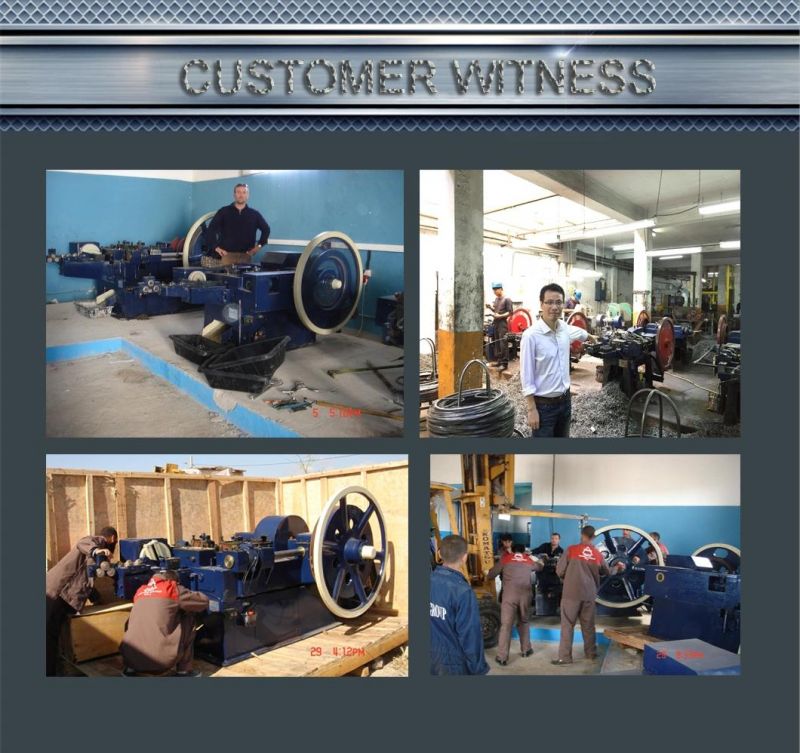

Customer Witness
Recommend equipment
FAQ
Question: What is the MOQ? Answer: Our MOQ is 1set.
Question: What kind of raw material can be used of your machine? Answer: We usually use low carbon steel to manufacture common nails.
Question: What is raw material used for the nail washing machine? Answer: The material is sawdust (wood dust) and wax.
Question: What is the consumption of the NAIL MOULD, NAIL CUTTER & PUNCH PIN? Answer: It is around 2 pairs each month if the machine works 8h/day.
Question: How can we produce another size of nail by same nail making machine? Answer: By change mould.
Question: Can I use one set nail making machine to manufacture all size nails? Answer: No. Different size nails with different type machine. We have 6 type nail making machine for 0.35-7 inch common nails.
Question: What is the power supply of your machines? Answer: It is 380V, 3-Phase, 50Hz and we can customize it for you according to your local power.
