Pid Control 21 Die 19 Gauge/Gage Aluminum Copper Wire Drawing Machine with Double Spooling Take up

DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD.
  • After-sales Service：24 Hours Online Problems Solving
  • Warranty：1 Year
  • Type：Horizontal Metal Drawing Machine
  • Usage：Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
  • Metal Material：Copper
  • Certification：RoHS, ISO

Base Info

  • Model NO.：ZL250-A35
  • Condition：New
  • Max Inlet Diameter：2.6 - 3.0 mm
  • Outlet Diameter Range：0.4 - 1.2 mm
  • Max Die Number：21 or 17
  • Max Line Speed：1800 M,Min
  • Elongation Rate：18.4% + 15% or 25% +18.7%
  • Capstan：250 mm
  • Main Motor Power：AC 55 Kw
  • Take-up Motor：11 Kw
  • Bobbin Size：400 , 500 , 600 mm
  • Machine Size：L9000 X W3000 X H3500 mm
  • Machine Weight：5000 Kg
  • Power Supply：380-480V, 50,60Hz
  • Transport Package：Wooden Box
  • Specification：According to Customer′s Request
  • Trademark：Wiremac
  • Origin：Guangdong, China
  • HS Code：8479819000
  • Production Capacity：100 Set,Month

Description

Overview Product Description

Introduction:

Product Parameters

Technical Parameters


Dual Inverter
Inlet Diameter
 2.6 - 3.0 mm2.6 - 3.0 mm
Oulet Diameter
 0.4 - 1.2 mm0.4 - 1.2 mm
Line Speed
 1800 m/min1800 m/min
Max Die Number
 1721
Mechanical Elongation Rate
 25% + 18.7%18.4% + 15%
Structure of Machine Body
 Casting + Steel plate welding and annealing
Capstan
 Ceramic tower
Capstan Diameter (Max)
 250mm
Take-up Bobbin Size
 400 / 500 / 630 mm
Air Consumption
 20 - 30 m3/h, 0.4 - 0.6 MPa
Drawing / Take-up Motor
 AC 55KW / AC 11KW
Drive
 Gear Drive
Electric Control Type
 PID dual inverter automatic control
Tension Control
 Air pressure adjustment type tension
Max Copper Load
 200kg, (500kg)
Power Supply
 380V - 480V, 50Hz / 60Hz
Volume of Lubrication
 40 L/min
Lubrication Type
 Lubrication by full immersion
Brake
 Disc type brake
Machine Dimension
 L9000 x W3000 x H3500 mm
Machine Weight

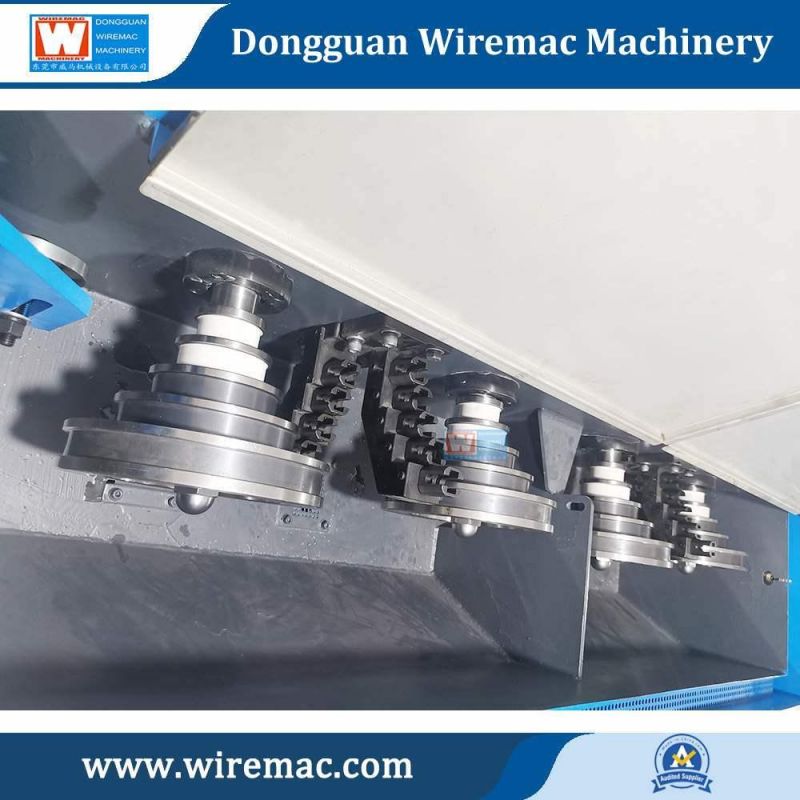

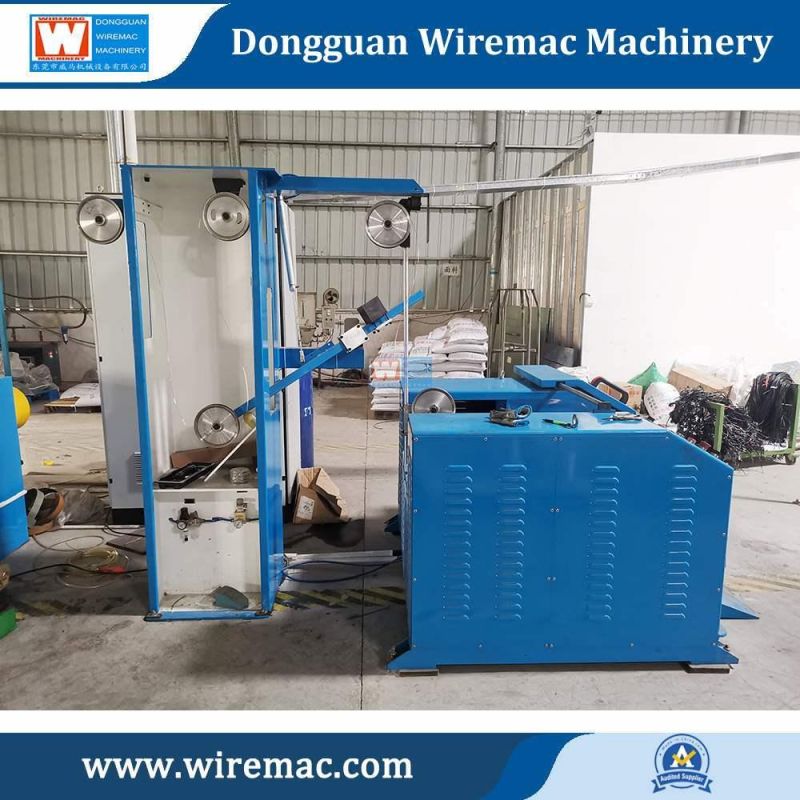

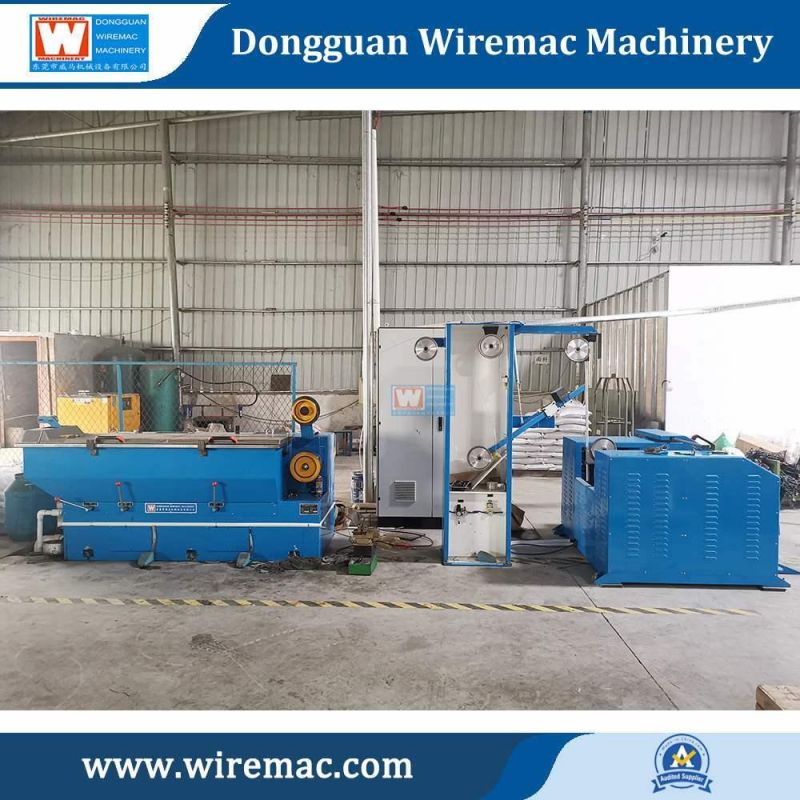

 5000 KGDetailed Photos

Pid Control 21 Die 19 Gauge/Gage Aluminum Copper Wire Drawing Machine with Double Spooling Take upPid Control 21 Die 19 Gauge/Gage Aluminum Copper Wire Drawing Machine with Double Spooling Take upPid Control 21 Die 19 Gauge/Gage Aluminum Copper Wire Drawing Machine with Double Spooling Take up

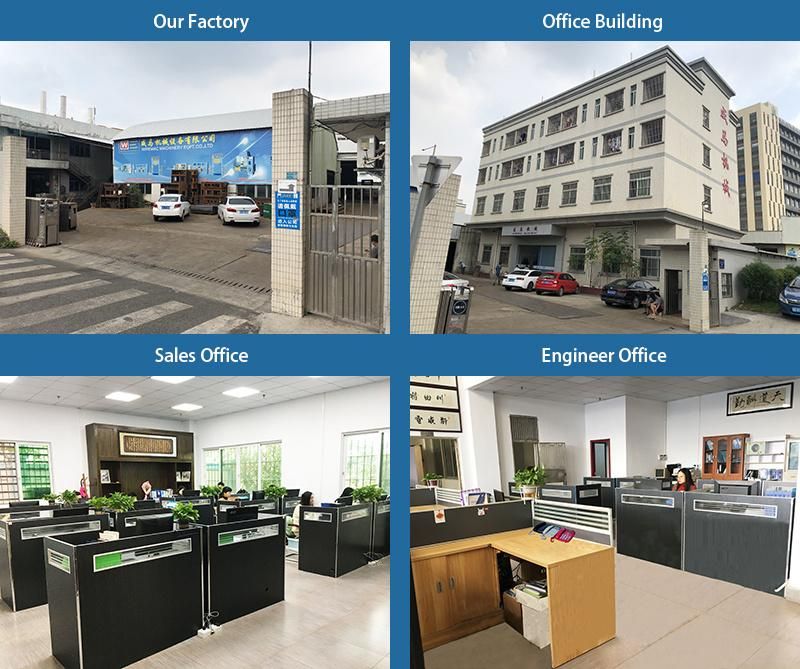

Company Profile

WIREMAC MACHINERY EQPT. CO., LTD. is located in Humen,Dongguan, a Famous historic town in China.It is wire and cable equipment manufacturer integreating R&D, processing, assembly, commissioning and after-sales.

The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing industry research, production of a variety of high-speed micro-drawing machine.Small drawing machine, small drawing continuous annealing machine, medium and small drawing machine, medium and small continuous annealing machine, medium drawing continuous annealing machine, large drawing machine, large drawing continuous annealing machine, wire drawing machine, annealing tin plating machine and other products.

The company upholds the spirit of "honesty-base, quality-based" enterprise, we will continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the "high-quality and efficient" business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory Marketing and service.

Pid Control 21 Die 19 Gauge/Gage Aluminum Copper Wire Drawing Machine with Double Spooling Take upOur Service

CONSULTING SERVICE

A team of experienced engineers are ready to advise you personally.
Your benefits at a glance: Problems can be solved quickly over the phone and internet in direct contact with the correct employee for the issue at hand.


Our Advantages

FAQ

1. Q: Are you manufacturer or trading company?
    A: We are manufacture and trading company.

2. Q: What info you need before you make the proposal?
    A: The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.

3. Q: What is the MOQ?
    A: One set

4. Q: Do you provide installing and debugging overseas?
    A: Overseas machine install and worker training services are optional.

5. Q: Can you make the machine according to my design or prototype?
    A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to
         book with us.

6. Q: How does your factory do regarding quality control?
    A: There is no tolerance regarding quality control. Quality control complies with ISO 9001.Every machine has to past testing running before
         it's packed for shipment.

7. Q: How can I trust you that machines pasted testing running before shipping?
    A: 1) We record the testing video for your reference
         2) We welcome you visit us and test machine by yourself in our factory.

8. Q: What about our after-sale service?
    A: We provide technical support on line as well as overseas services by skillful technicians.

9. Q: What should I do if I just start a new business?
    A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you to solve the material purchase, worker training,
         international market price.

10. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
      A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you to bring
           a piece of testing material, you can test on our machines on site.
