Steel Concrete Wire 3" Making Automatic Nail Machine Automatic Nail Making
Xuchang Hongshuo Machinery Co., Ltd.- After-sales Service：After-Seals 24h Online Overseas Service
- Warranty：24 Month
- Transport Package：Wooden Case or Suitable for Sea Shipping
- Specification：40GP, 40HQ
- Trademark：Hongshuo
- Origin：China
Base Info
- Model NO.：Z94-1C,2C,3C,4C,5C
- HS Code：846330000
- Production Capacity：2000kg,8h
Description
Basic Info.
Model NO. Z94-1C/2C/3C/4C/5C HS Code 846330000 Production Capacity 2000kg/8hProduct Description
New generation of automatic Nail making machine
Parameter of machine
| Model | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Max. dia. of nail | 5.5mm | 4.5mm | 3.5mm | 2.8mm | 1.6mm |
| Min. dia. of nail | 3.8mm | 2.8 mm | 1.8 mm | 1.2 mm | 0.9 mm |
| Max. Length of nail | 150mm | 100mm | 75mm | 50mm | 25mm |
| Min. length of nail | 80mm | 50 mm | 30mm | 16mm | 9mm |
| Motor power | 5.5kw | 4kw | 3kw | 2.2kw | 1.5kw |
| Nail making speed | 220pcs/min | 260pcs/min | 320pcs/min | 380pcs/min | 450pcs/min |
| L*W*H | 2.5*1.6*1.5m | 2.2*1.6*1.65m | 2.0*1.4*1.4m | 1.7*1.3*1.4m | 1.5*1.3*1.2m |
| Weight | 2.1tons | 1.8 tons | 1.5 tons | 1.15 tons | 0.8 ton |
| Output | 2000kg/8h | 1500kg/8h | 800kg/8h | 500kg/8h | 80kg/8h |
Product description:
This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.

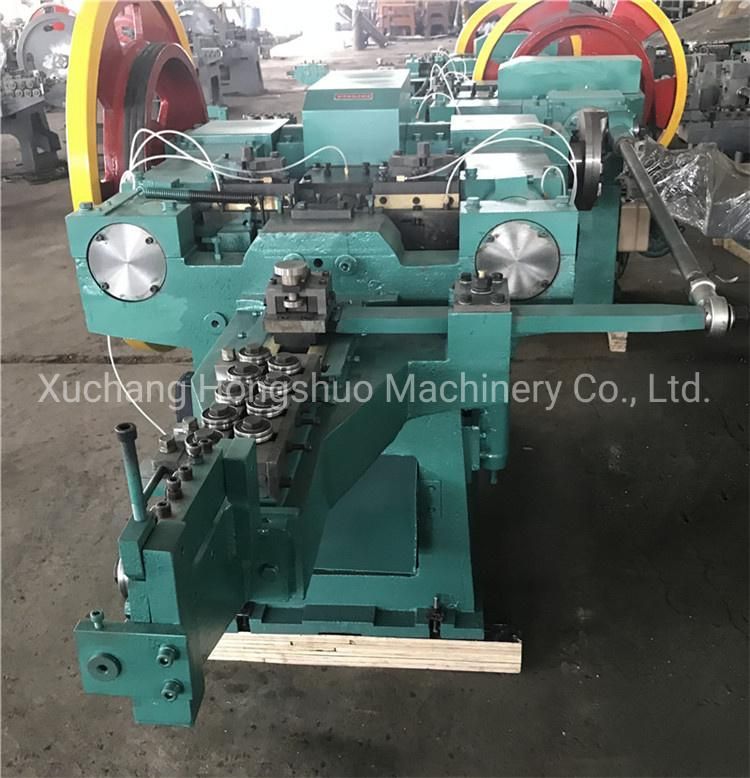

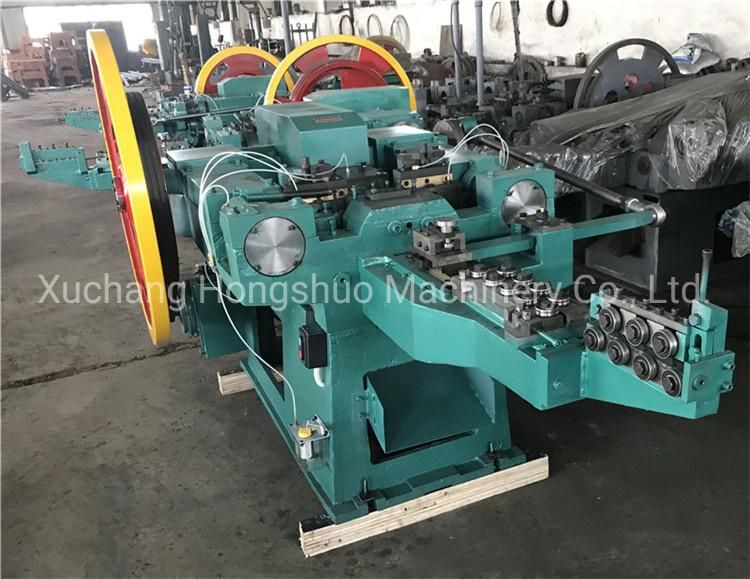

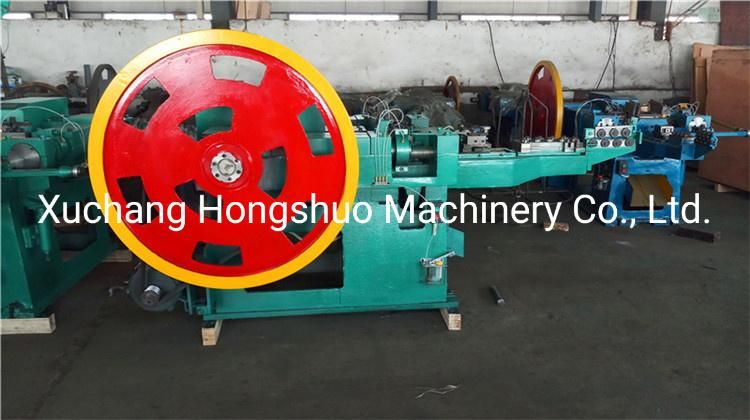

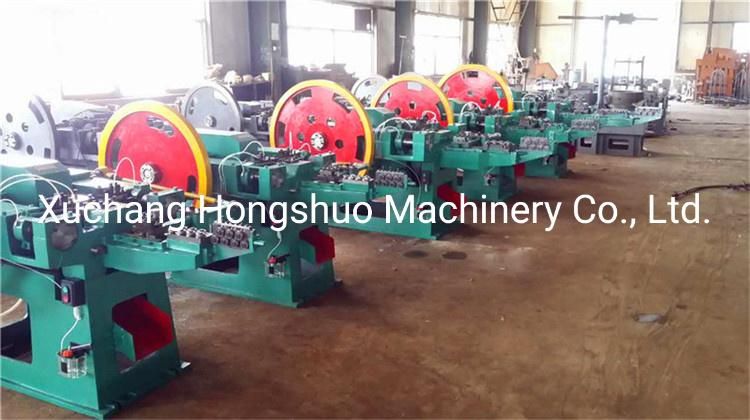

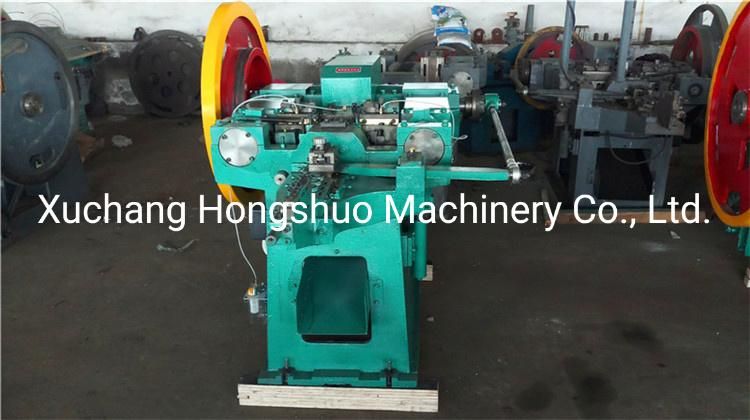

Detailed photos:

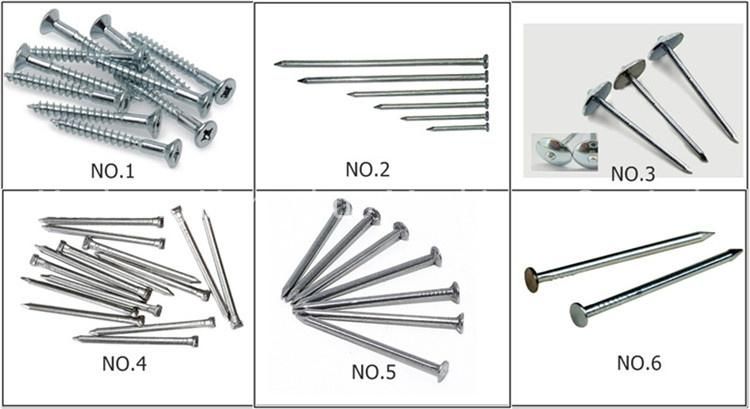

End products as below:

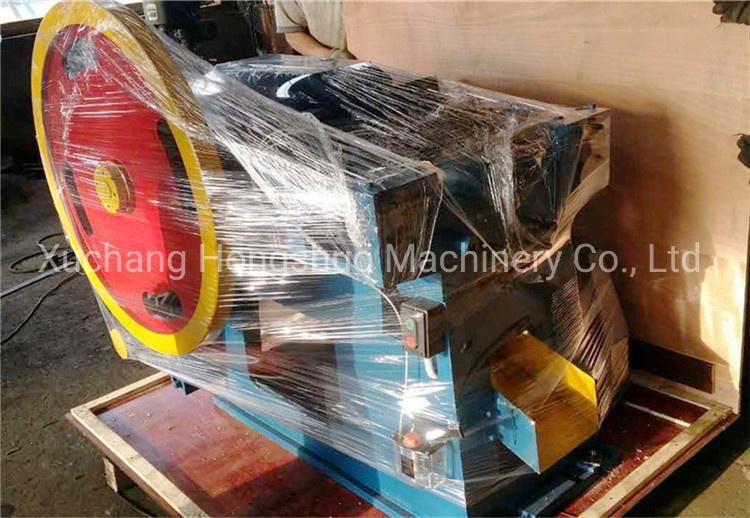

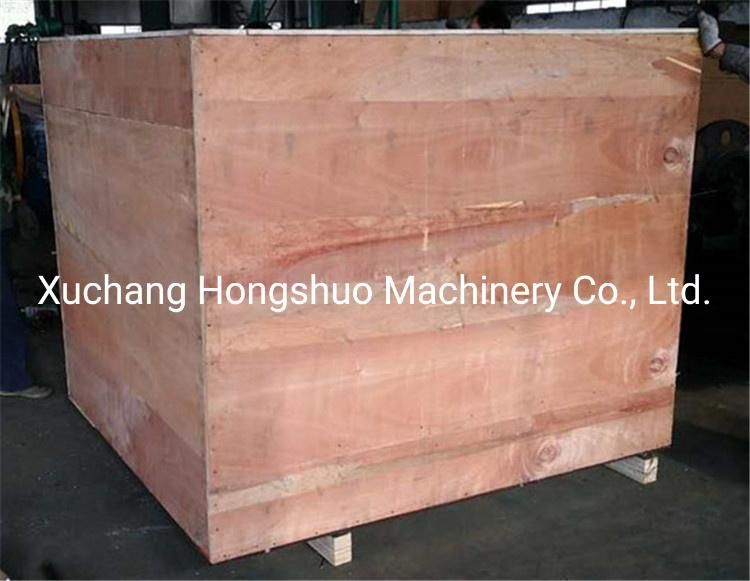

Packing & Delivery
