Metallic Processing Machinery

Home > Product > Metal Forging Machinery

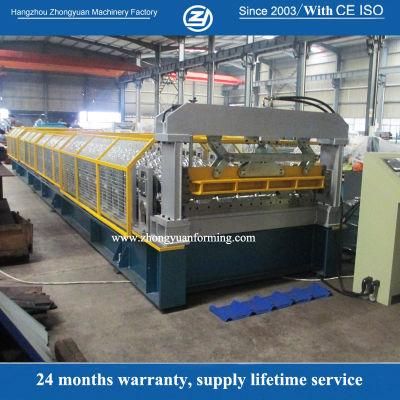

Gold Supplier Aluminium Coil and Sheet Glazed Tiles Roll Forming Machine

Hangzhou Zhongyuan Machinery Factory
  • Type：Mechanical Press, Tile Forming Machine
  • Forging Forming Method：Roll Forming Machine
  • Power Source：Electric
  • Feature：Automation
  • Certification：ISO9001, CE, SGS, BV, Ce, ISO
  • Warranty：12 Months

Base Info

  • Model NO.：Glazed Tiles Roll Forming Machine
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Tile Thickness：0.5-0.6mm
  • Working Speed：About 5-6m,Min
  • Power：5.5kw
  • Brand Name：Zhongyuan
  • Model Number：Zyyx27-190-950
  • Controlling System：Mitsubishi PLC & Converter
  • Machines Weight：About 9000kgs
  • Machines Size：About 10m*1.7m*1.4m (Depend on Final Design)
  • Transport Package：Suitable for Sea Transport
  • Specification：CE SGS BV
  • Trademark：Zhongyuan
  • Origin：China
  • HS Code：84552210
  • Production Capacity：15 Sets,Month

Description

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.5-0.6Yield strength(mpa)Roller material45#Chrome steelForming speed(m/min)About 15-20Output speed(m/min)5-6Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurement EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)11KW
Components of machineDecoiler1set  Feeding & guiding device1setMain roll forming machine1setHydraulic pressing system1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table Certificate:

Gold Supplier Aluminium Coil and Sheet Glazed Tiles Roll Forming Machine


Customer Visit:

Gold Supplier Aluminium Coil and Sheet Glazed Tiles Roll Forming Machine


FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).



Contact Us:

TEL:+86-0571-82172966
        +86-13867521382
Website:cnzhongyuan.en.made-in-china.com
Factory Address:No. 228 Yongli, Nanyang Street, Xiaoshan District, Hangzhou, Zhejiang, China

Gold Supplier Aluminium Coil and Sheet Glazed Tiles Roll Forming Machine
